| Brand Name: | FengQing |
| Model Number: | XQ/FQ338-8000X |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000pcs/month |

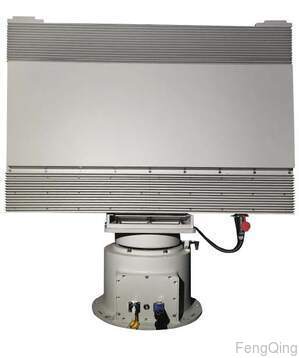

The XQ/FQ338-8000X consists of one radar array, one mechanical turntable, and one power adapter. Designed for detection, early warning, and target designation of micro/small civilian drones in critical areas including borders, perimeters, airports, and military bases. Provides precise trajectory information including azimuth, distance, altitude, and speed.
| Specification Category | Specific Parameters |
|---|---|
| Operating System | Phased array system (azimuth mechanical scan + elevation phased scan), Pulse Doppler |
| Operating Frequency Band | X-band |
| Range | ≥8.0 km |
| Effective Detection Range | 100 m ~ 5.0 km (2s/r) (for drones); 100 m ~ 8.0 km (4s/r) (for drones); 100 m ~ 8.0 km (for pedestrians); 100 m ~ 10.0 km (for vehicles); 100 m ~ 15.0 km (for ships) |
| Azimuth Coverage | 360° |
| Elevation Coverage | ≥40° |
| Detection Speed | 1.8 km/h ~ 270 km/h |
| Azimuth Accuracy | ≤0.4° |
| Elevation Accuracy | ≤0.5° |
| Distance Accuracy | ≤10 m |
| Speed Accuracy | ≤0.5 m/s |
| Data Rate | ≥0.5 Hz (antenna rotation speed: 30 rpm) |
| Data Interface | RJ45/1-channel 100 Mbps Ethernet |
| Power Input | ≤400 W (power consumption); AC 200 - 240 V (input voltage) |
| Operating Temperature | -40℃ ~ +55℃ |
| Weight | ≤77 kg |
| Product Dimensions | 820 mm * 925 mm * 360 mm |
Crafted in China, Quality Forges Low-Altitude Security.
Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:
