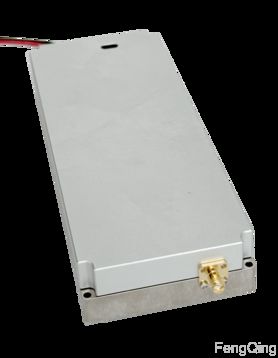

50W-70W Drone Amplifier Ceramic Packaged Anti Drone Module 100MHz - 6200MHz

Name: 50W-70W Drone Amplifier Ceramic Packaged Anti Drone Module 100MHz - 6200MHz
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: QVPA0062-00570W-GN
Availability: InStock

Brand Name:	FengQing
Model Number:	QVPA0062-00570W-GN
MOQ:	1
Price:	Negotiated
Payment Terms:	T/T,L/C
Supply Ability:	80,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Document:

QVPA0062-00570W-GN.pdf

Output Power/W:

≥50mW-70W

Operating Frequency:

Freguency Coverage From 100-6200MHz

Output Power/dBm:

≥17dBm-48.5dBm

Power Flatness/ DB:

≤0.1dB

Efficiency/%:

50%-65%

Size/(mm):

120*50*18.8/190*75*30/130*50*18.8

Packaging Details:

Packaging with anti-collision foam

Highlight:

50W Drone Amplifier

Drone Amplifier ceramic packaged 100MHz

anti drone module 6200MHz

Product Description

100MHz–6.2GHz Wideband Ceramic-Packed Anti-Drone Power Amplifier (50mW–70W)

This high-performance anti-drone power amplifier covers a frequency range of 100MHz–6.2GHz and delivers 50mW–70W of output power, offering high power output and high stability. Designed specifically for drone detection and countermeasure systems, it effectively suppresses GNSS, WiFi, telemetry, and various remote control links, providing reliable support for countermeasure missions.

Application Scenarios

(Strictly limited to legally authorized scope)

Airspace protection for important political and diplomatic activities
No-fly zone defense for key national infrastructure (military airports, nuclear facilities, chemical plants, dams)
Preventing UAV contraband delivery in prisons and rehabilitation centers
Air safety for large-scale public events (sports events, concerts)
Border patrol and low-altitude defense in sensitive areas

Working frequency band and its electrical characteristics

Num	Output power/W	Frequency/MHz	Output power/dBm	Power flatness/dB	Efficiency/%	Size/mm
1	≥50mW-70W	100-200MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
2	≥50mW-70W	200-300MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
3	≥50mW-70W	200-380MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
4	≥50mW-70W	100-200MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
5	≥50mW-70W	200-300MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
6	≥50mW-70W	200-380MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
7	≥50mW-70W	300-400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
8	≥50mW-70W	300-500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
9	≥50mW-70W	400-500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
10	≥50mW-70W	400-700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
11	≥50mW-70W	500-600MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
12	≥50mW-70W	600-700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
13	≥50mW-70W	700-800MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
14	≥50mW-70W	700-1000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
15	≥50mW-70W	800-900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
16	≥50mW-70W	900-1000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
17	≥50mW-70W	1000-1100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
18	≥50mW-70W	1050-1340MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
19	≥50mW-70W	1300-1600MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
20	≥50mW-70W	1550-1620MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
21	≥50mW-70W	1600-1900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
22	≥50mW-70W	1800-2000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
23	≥50mW-70W	2000-2100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
24	≥50mW-70W	2100-2400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
25	≥50mW-70W	2300-2550MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
26	≥50mW-70W	2400-2700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
27	≥50mW-70W	2700-2900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
28	≥50mW-70W	2700-3100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
29	≥50mW-70W	3100-3400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
30	≥50mW-70W	3300-3500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
31	≥50mW-70W	3400-3700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
32	≥50mW-70W	3700-4000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
33	≥50mW-70W	3900-4100MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
34	≥50mW-70W	4000-4400MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
35	≥50mW-70W	4300-4500MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
36	≥50mW-70W	4400-4800MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
37	≥50mW-70W	4800-5100MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
38	≥50mW-70W	5100-5400MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
39	≥50mW-70W	5150-5350MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
40	≥50mW-70W	5400-5700MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
41	≥50mW-70W	5700-5950MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
42	≥50mW-70W	5950-6200MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0

Fengqing Power Amplifier Product Catalog

Plastic-packaged GaN HEMT power amplifier series catalog

Output Power/W	Model	Output Power/ MHz	Size/(mm)
≥50mW–50W	QVPA0425-00550W-B	400–2500	1205018.8
≥50mW–50W	QVPA0425-00550W-B2	400–2550	1113719.5

Ceramic-packaged GaN HEMT power amplifier series catalog

Output Power / W	Model	Output Power/ MHz	Size/(mm)
≥50mW–50W	QVPA0062-00550W-GN	100–6200	1113719.5
≥50mW–50W	QVPA0062-00550W-GN	100–6200	1123819.5
≥50mW–70W	QVPA0062-00570W-GN	100–6200	1205018.8
			1907530
			1305018.8
≥70W–100W	QVPA0060-70100W-GN	100–6000	1907530
			1305018.8
			1265618.8
			1806018.8
≥150W–200W	QVPA0059-150200W-GN	400–5950	1809022.8
≥150W–200W	QVPA0059-150200W-GN	400–5950	18010022.8

Frequently Asked Questions

Q1: What frequency bands does this module support jamming?

A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.

Q2: What if I cannot find the frequency band I need?

A2: All frequency bands can be customized to meet your specific needs.

Q3: What is the module's output power?

A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.

Q4: How is it integrated?

A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.

Q5: Does it support multi-module collaboration?

A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.

Q6: What are the typical application scenarios?

A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.

Q7: How reliable is the module?

A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.

Q8: Is it compliant with relevant regulations?

A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
