| Brand Name: | FengQing |
| Model Number: | QVPA0060-70100W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,000pcs/month |

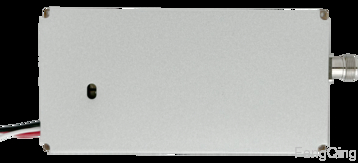

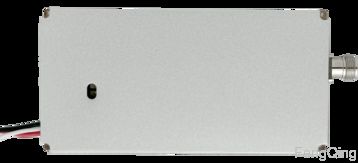

This RF antenna amplifier takes multi-band jamming coverage as its core function and is specifically optimized for low-altitude scenarios. It can accurately adapt to the signal transmission characteristics in such environments, enabling stable transmission and efficient coverage of wide-band jamming signals. Integrating multi-band compatibility, it can simultaneously respond to jamming requirements across different frequency bands, balancing signal amplification efficiency and jamming penetration. It provides targeted technical support for electronic security, anti-drone and other scenarios in low-altitude areas.
Adopting a ceramic packaging process, the product not only ensures structural compactness but also significantly enhances environmental adaptability and stability, capable of coping with complex conditions such as temperature and humidity fluctuations in low-altitude environments. The combination of the high reliability of ceramic packaging and the core advantage of multi-band jamming makes the amplifier both easy to integrate and deploy, while maintaining stable performance output. It serves as an efficient core component for various electronic countermeasure systems in low-altitude scenarios.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥70W-100W | 100-200MHz | ≥48.5dBm-49.2dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 2 | ≥70W-100W | 200-300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 3 | ≥70W-100W | 200-380MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 4 | ≥70W-100W | 400-700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 5 | ≥70W-100W | 600-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 6 | ≥70W-100W | 650-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 7 | ≥70W-100W | 700-900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 8 | ≥70W-100W | 700-1000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 9 | ≥70W-100W | 900-1150MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 10 | ≥70W-100W | 800-1050MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 11 | ≥70W-100W | 1050-1300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 12 | ≥70W-100W | 1300-1500MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 13 | ≥70W-100W | 1340-1560MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 14 | ≥70W-100W | 1500-1700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 15 | ≥70W-100W | 1600-1800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 16 | ≥70W-100W | 1700-1900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 17 | ≥70W-100W | 1800-2100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 18 | ≥70W-100W | 2100-2400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 19 | ≥70W-100W | 2300-2550MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 20 | ≥70W-100W | 2400-2700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 21 | ≥70W-100W | 2700-2900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 22 | ≥70W-100W | 2900-3100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 23 | ≥70W-100W | 3000-3300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 24 | ≥70W-100W | 3300-3600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 25 | ≥70W-100W | 3700-3900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 26 | ≥70W-100W | 3900-4100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 27 | ≥70W-100W | 4100-4300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 28 | ≥70W-100W | 4400-4600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 29 | ≥70W-100W | 4700-4900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 30 | ≥70W-100W | 4900-5100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 31 | ≥70W-100W | 5100-5400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
| 32 | ≥70W-100W | 5700-6000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6000 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
