| Brand Name: | FengQing |
| Model Number: | QVPA0059-150200W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

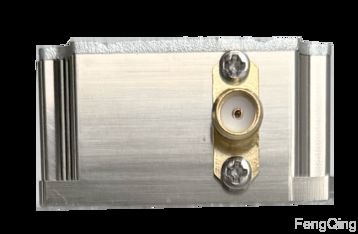

This high-output power amplifier is engineered to overcome communication challenges posed by distance and physical obstacles, delivering significantly extended signal transmission range and coverage through its exceptional power output performance. The amplifier maintains stable high-power operation across diverse complex electromagnetic environments and demanding working conditions, ensuring effective signal penetration through buildings, foliage, and other obstructions to meet the most stringent requirements for signal strength and propagation distance in emergency communications, wide-area coverage, and specialized scenarios.
The core advantage of this amplifier lies in its outstanding penetration capability and transmission reliability. Through optimized thermal management and high-efficiency circuit design, the equipment can operate continuously at full load capacity, guaranteeing signal integrity without attenuation or interruption over ultra-long distances. Whether deployed for communication relays in remote areas or deep coverage in urban environments, this product provides stable and robust signal assurance, effectively resolving communication quality degradation caused by distance or physical barriers.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥150W-200W | 400-500 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 2 | ≥150W-200W | 500-600 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 3 | ≥150W-200W | 400-600 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 4 | ≥150W-200W | 600-700 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 5 | ≥150W-200W | 700-800 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 6 | ≥150W-200W | 600-800 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 7 | ≥150W-200W | 800-1050 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 8 | ≥150W-200W | 900-1100 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 9 | ≥150W-200W | 1050-1340 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 10 | ≥150W-200W | 1100-1300 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 11 | ≥150W-200W | 1300-1500 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 12 | ≥150W-200W | 1500-1700 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 13 | ≥150W-200W | 1700-1900 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 14 | ≥150W-200W | 1900-2100 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 15 | ≥150W-200W | 2100-2300 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 16 | ≥150W-200W | 2300-2500 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 17 | ≥150W-200W | 2400-2500 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 18 | ≥150W-200W | 2500-2700 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 19 | ≥150W-200W | 5100-5350 MHz | ≥52dBm-53dBm | ≤0.1dB | 42%-50% | 180*100*22.8 |
| 20 | ≥150W-200W | 5700-5900 MHz | ≥52dBm-53dBm | ≤0.1dB | 42%-50% | 180*100*22.8 |
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size /(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6200 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 170*85*22.8 | |||
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
