20W 30W Drone Amplifier Ceramic Packaged RF Power Amplifier 28VDC 100MHz - 5950MHz

20W 30W Drone Amplifier Ceramic Packaged RF Power Amplifier 28VDC 100MHz - 5950MHz

Brand Name: FengQing
Model Number: QVPA0159P4345CWMN
MOQ: 1
Price: Negotiated
Payment Terms: T/T,L/C
Supply Ability: 80,00pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Document:
QVPA0159P4345CWMN.pdf
Output Power/W:
20/30W
Operating Frequency:
Freguency Coverage From 100-5950MHz
Output Power/dBm:
≥43dBm/45dBm
Power Flatness/ DB:
≤0.1dB
Output Current/A:
1.5~3A
Input Voltage:
DC 28V
Size/(mm):
111*37*19.5/112*38*19.5
Packaging Details:
Packaging with anti-collision foam
Highlight:

20W 30W Drone Amplifier

,

Drone Amplifier Ceramic Packaged

,

rf power amplifier 100MHz

Product Description
20W/30W Ceramic-packaged Anti-Drone Power Amplifier 28V DC freguency coverage from 100-5950MHz Modular Design, Easy To Integrate Into Existing Systems
Product Overview

28V DC Modular Power Amplifier for Anti-Drone Systems. The 20/30W Anti-Drone Module Power Amplifier provides directional interference support and multi-band coverage for drone detection and countermeasure systems. This high-performance electronic countermeasures unit features modular architecture for easy integration into fixed, vehicle-mounted, or portable platforms.

Key Advantages
  • Non-destructive countermeasures (forces drone to return/land without shooting it down)
  • No damage to surrounding civilian equipment
  • Customizable solutions available
Core Features
  • Supports multi-band interference coverage
  • Modular design for flexible deployment
  • 20/30W ceramic-packaged high power output
  • Customizable solutions for specific requirements
  • Advanced pre-distortion technology for optimal signal quality
  • Industrial-grade protection with excellent shock resistance
Application Scenarios
(Strictly limited to legally authorized scope)
  • Airspace protection for important political and diplomatic activities
  • No-fly zone defense for key national infrastructure (military airports, nuclear facilities, chemical plants, dams)
  • Preventing UAV contraband delivery in prisons and rehabilitation centers
  • Air safety for large-scale public events (sports events, concerts)
  • Border patrol and low-altitude defense in sensitive areas
Technical Specifications
Num Output power/W Frequency/MHz Output power/dBm Power flatness/dB Output current/A Size/mm
1 20W/30W 100-200MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
2 20W/30W 200-300MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
3 20W/30W 200-380MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
4 20W/30W 300-400MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
5 20W/30W 400-500MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
6 20W/30W 500-600MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
7 20W/30W 600-700MHz(Without Circulator) ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
8 20W/30W 700-800MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
9 20W/30W 800-900MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
10 20W/30W 800-1050MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
11 20W/30W 900-1000MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
12 20W/30W 1000-1100MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
13 20W/30W 1050-1340MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
14 20W/30W 1340-1560MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
15 20W/30W 1550-1620MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
16 20W/30W 1600-1800MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
17 20W/30W 1700-1900MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
18 20W/30W 1800-2000MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
19 20W/30W 2000-2100MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
20 20W/30W 2100-2400MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
21 20W/30W 2350-2550MHz ≥43dBm/45dBm ≤0.1dB <1.5A(20W)/<2A(30W) 111*37*19.5mm
22 20W/30W 5100-5350MHz ≥43dBm/45dBm ≤0.1dB <2.5A(20W)/<3A(30W) 112*38*19.5mm
23 20W/30W 5700-5950MHz ≥43dBm/45dBm ≤0.1dB <2.5A(20W)/<3A(30W) 112*38*19.5mm
Complete specifications available upon request
Product Images

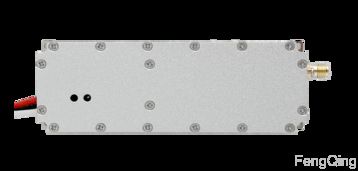

20W 30W Drone Amplifier Ceramic Packaged RF Power Amplifier 28VDC 100MHz - 5950MHz 0
20/30W Anti-Drone Power Amplifier module
20W 30W Drone Amplifier Ceramic Packaged RF Power Amplifier 28VDC 100MHz - 5950MHz 1
Close-up view of Anti-Drone Power Amplifier components
Frequently Asked Questions
Q1: What frequency bands does this module support jamming?
A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
Company Information

Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.
Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:

  • Pre-sales Consultation: Customized solution designs and product recommendations based on client needs.
  • In-sales Support: Comprehensive technical support for installation, debugging, and operational training.
  • After-sales Service: Rapid-response system including remote support and on-site maintenance.
20W 30W Drone Amplifier Ceramic Packaged RF Power Amplifier 28VDC 100MHz - 5950MHz 2
