28V DC Anti Drone Equipment 20w 30W Rf Power Amplifier 800MHz - 2550MHz

Name: 28V DC Anti Drone Equipment 20w 30W Rf Power Amplifier 800MHz - 2550MHz
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: QVPA0825P4345CWMN-B
Availability: InStock

Brand Name:	FengQing
Model Number:	QVPA0825P4345CWMN-B
MOQ:	1
Price:	Negotiated
Payment Terms:	T/T,L/C
Supply Ability:	80,00pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Document:

QVPA0825P4345CWMN-B.pdf

Output Power/W:

20/30W MINI

Operating Frequency:

800-2550MHz

Output Power/dBm:

43dBm/45dBm

Power Flatness/ DB:

±0.1dB

Output Current/A:

<1.3A(20W)/ <1.8A(30W)

Efficiency/%:

50%~55%

Input Voltage:

DC 28V

Size/(mm):

111*37*19.5

Packaging Details:

Packaging with anti-collision foam

Highlight:

anti drone equipment 20w

30w rf power amplifier

rf power amplifier 800mhz

Product Description

20W/30W Mini EMC-packaged Anti-Drone Power Amplifier 800-2550MHz 28V DC jammer drone module

28V DC 800-2550MHz | Plug-in structure, easy to maintain and replace

The 20/30W Anti-Drone Module Power Amplifier provides directional interference support and multi-band coverage for drone detection and countermeasure systems. This high-performance electronic countermeasures unit features modular architecture for easy integration into fixed, vehicle-mounted, or portable platforms.

Key Advantages

Non-destructive countermeasures (forces drone to return/land without shooting it down)
No damage to surrounding civilian equipment
Customizable solutions available

Core Features

Supports multi-band interference coverage
Modular design for flexible deployment
20/30W MINI EMC-packaged high power output
Customizable solutions for specific requirements
Advanced pre-distortion technology for optimal signal quality
Industrial-grade protection with excellent shock resistance

Application Scenarios

(Strictly limited to legally authorized scope)

Airspace protection for important political and diplomatic activities
No-fly zone defense for key national infrastructure (military airports, nuclear facilities, chemical plants, dams)
Preventing UAV contraband delivery in prisons and rehabilitation centers
Air safety for large-scale public events (sports events, concerts)
Border patrol and low-altitude defense in sensitive areas

Technical Specifications

20W/30W working frequency band and its electrical characteristics

Output power/W	Frequency/MHz	Output power/dBm	Power flatness/dB	Output current/A	Efficiency/%	Size/mm
20W/30W	800-900MHz	43dBm/45dBm	±0.1dB	<1.3A(20W)/ <1.8A(30W)	50%~55%	1113719.5mm

Additional frequency coverage: 800-1050MHz, 900-1000MHz, 1000-1100MHz, 1050-1340MHz, 1550-1620MHz, 1700-1900MHz, 1800-2000MHz, 2000-2100MHz, 2100-2400MHz, 2350-2550MHz
Complete specifications available upon request

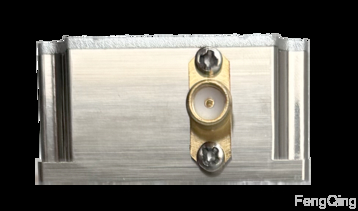

Product Images

Frequently Asked Questions

Q1: What frequency bands does this module support jamming?

A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.

Q2: What is the module's output power?

A2: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.

Q3: How is it integrated?

A3: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.

Q4: Does it support multi-module collaboration?

A4: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.

Q5: What are the typical application scenarios?

A5: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.

Q6: How reliable is the module?

A6: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.

Q7: Is it compliant with relevant regulations?

A7: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
