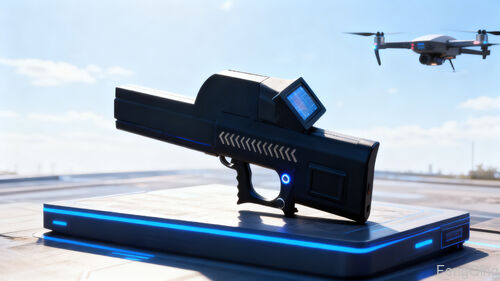

Countermeasure Guns in Countering Drones

1. Deployment and Operational Flexibility
   • Individual Operability: A single operator can independently complete the entire process of detection, targeting, and jamming.
   • Rapid Response: Effective countermeasures can be initiated within 30–60 seconds from standby.
   • Omnidirectional Maneuverability: 360-degree rotation combined with pitch adjustment ensures no defensive blind spots.
   • Ready-to-Use: No complex setup required, suitable for rapid deployment.
2. Precision Directional Jamming
   • Conical Beam Design: Jamming energy is concentrated within a 10–30-degree beam angle.
   • Minimal Collateral Impact: Under standardized operation, the impact on the surrounding electromagnetic environment is limited.
   • Electromagnetic Compatibility: Suitable for sensitive environments such as urban areas and densely populated zones.
3. Safety and Reversibility
   • Non-Kinetic Strike: Avoids secondary hazards caused by drone crashes.
   • Soft-Kill Characteristics: Typically forces drones to land or retreat, preserving evidence for forensic investigation.
   • Low Political Risk: Easier to obtain usage authorization compared to kinetic weapons.
4. Cost-Effectiveness and Accessibility
   • Low Procurement Cost: Unit prices generally range from tens of thousands to several hundred thousand RMB.
   • Simple Maintenance: No complex infrastructure support required.
   • Short Training Cycle: Basic operational training requires only a few hours.

1. Performance Limitations
   • Short Effective Range: Effective jamming distance is typically 300–1,500 meters.
   • Dependence on Early Warning: Limited built-in detection capability, requiring external warning support.
   • Continuous Illumination Requirement: Stable targeting and jamming for 5–15 seconds is necessary.
2. Technical Principle Limitations
   • Ineffective Against Autonomous Flight: Cannot jam drones following pre-programmed routes.
   • Weak Interference Against 4G/5G Links: Limited effectiveness against drones controlled via public networks.
   • Risk of Triggering Return-to-Home: Improper jamming may cause drones to fly toward the operator.
3. Operational and Environmental Constraints
   • High Personnel Requirements: Requires well-trained operators.
   • Limited Battery Life: Continuous jamming typically lasts 0.5–2 hours.
   • Environmental Impact: Rain and fog significantly degrade signal effectiveness.
   • Heat Dissipation Issues: Continuous operation may trigger overheating protection mechanisms.
4. Combat Effectiveness Limitations
   • One-Way Engagement: Lacks real-time effectiveness assessment capability.
   • Inability to Handle Swarms: Can only engage one or a few targets simultaneously.
   • Limited Frequency Coverage: Difficulty covering all possible control frequency bands.

1. Ideal Application Scenarios
   • Last Line of Defense: Terminal interception after fixed defense systems fail.
   • Short-Range Protection of Key Sites: Close-range defense of important buildings or event venues.
   • Mobile Escort Protection: Countering drone threats during convoy movements.
   • Emergency Incident Response: Rapid reaction to sudden drone intrusions.
2. Usage Limitations
   • Not a Standalone Solution: Must be integrated into a complete detection–neutralization system.
   • Significant Range Limitations: Only suitable for medium- to short-range threats.
   • Diminishing Effectiveness Against Advancing Technology: Reduced efficacy against advanced drones.
3. Future Development Trends
   • Intelligent Upgrades: Integration of AI-assisted identification and automatic tracking.
   • Multi-Mode Fusion: Combination of electro-optical tracking and simple detection functions.
   • Networked Coordination: Multi-gun 协同作战 and command center linkage.
   • Adaptive Jamming: Intelligent jamming strategies tailored to different drone models.

Portable countermeasure guns are an indispensable yet functionally limited key component of current counter-drone equipment systems. Their core value lies in:

• Providing the fastest and most flexible terminal response capability.
• Offering good applicability in complex electromagnetic environments.
• Serving as a critical element in building a layered defense system.

However, no single equipment can address all drone threats. The most effective defense is to establish a complete counter-drone system that integrates long-, medium-, and short-range capabilities; combines soft- and hard-kill measures; and complements fixed and mobile assets. Portable countermeasure guns should be positioned as important tactical nodes within this system, not as standalone solutions.

When selecting equipment, it is essential to base decisions on specific threat scenarios, defense requirements, and budget constraints. Portable countermeasure guns should be organically combined with other countermeasure methods to achieve the optimal balance of cost-effectiveness and combat performance.
