Guardian of the Low-Altitude Economy: Types, Applications, and Features of Security Radars

The explosive growth of the low-altitude economy, encompassing drone logistics, Urban Air Mobility (UAM), and emergency response, has populated the skies with new opportunities and significant security challenges. These include rogue drones, collision risks, and malicious activities. Establishing a reliable low-altitude surveillance network is paramount, and radar serves as the cornerstone of this system. Here are the primary types of radars designed for low-altitude security, along with their core applications and characteristics.

To address the detection difficulties posed by "low, slow, and small" (LSS) targets, specialized radars have emerged as the main line of defense, moving beyond the capabilities of traditional systems.

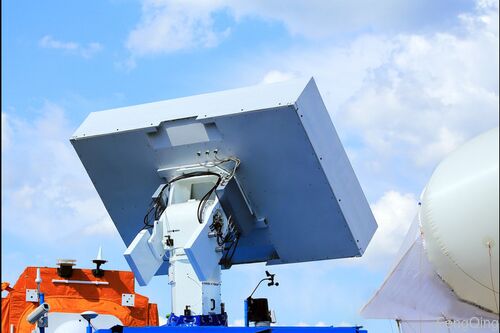

1. Phased Array Radar (Active Detection)
   Applications:
   • Protection of Urban Critical Areas: Core security for government buildings, nuclear power plants, and airport clearance zones.
   • Security for Major Events: Provides wide-area, persistent drone surveillance for sports events, international summits, etc.
   • Backbone for UAS Traffic Management (UTM): Acts as a primary sensor for monitoring drones on main routes.
   Key Features:
   • Agile Beam, Multi-Target Tracking: Electronic scanning enables simultaneous monitoring and tracking of hundreds of targets, effectively countering drone swarm tactics.
   • High Data Refresh Rate: Captures the highly dynamic maneuvers of drones, providing rapid trajectory updates and sufficient response time.
   • Multi-Function Integration: Capable of performing search, track, and identification tasks simultaneously within a single, highly integrated system.
2. Frequency-Modulated Continuous-Wave (FMCW) Radar (Active Detection)
   Applications:
   • Drone Self-Awareness and Obstacle Avoidance: Integrated into drones for autonomous navigation.
   • Perimeter Security for Critical Infrastructure: Close-range, seamless monitoring for facilities like prisons and substations.
   • Vehicle-UAV Coordination: Used for drone landing guidance and vehicle vicinity detection.
   Key Features:
   • No Range Blind Zone, Accurate Range & Velocity Measurement: Ideal for high-precision short-range detection, effectively resolving multiple closely spaced targets.
   • Low Power Consumption, Compact Size, Cost-Effective: Suitable for large-scale deployment and integration onto mobile platforms or small drones.
   • High Resolution: Achieves fine range resolution through wide-band signals, aiding in detailed target identification.
3. Distributed Aperture Radar (Active Detection)
   Applications:
   • Surveillance in Complex Terrain and Urban Canyons: Multiple nodes eliminate blind spots caused by skyscrapers and mountains.
   • Cost-Effective Wide-Area Coverage: Uses multiple low-cost small radars to replace a single large, expensive one.
   Key Features:
   • Minimized Blind Spots: Sensors provide multiple viewing angles, enabling collaborative 3D detection.
   • Enhanced Resilience: The system remains partially functional even if individual nodes are jammed or destroyed.
   • Improved Accuracy via Data Fusion: Data fusion from multiple nodes yields more precise target location.
4. Spectrum Detection Radar (Passive Listening)
   Applications:
   • Identification of Consumer Drones: Detects and locates targets by intercepting communication signals between the drone and its controller.
   • Detection of Radio-Silent Threats: Complements active radar by detecting systems that do not emit signals.
   Key Features:
   • High Concealment: As a passive sensor, it is undetectable, ideal for covert monitoring.
   • Drone Model Identification: Can identify the specific brand and model of a drone by analyzing its unique signal fingerprint against a database.
   • Lower Cost: Generally more cost-effective to deploy than high-performance active radars.
5.

Regardless of type, professional low-altitude security radars share common technological traits to overcome core challenges:

• Superior LSS Target Detection Utilizes high-frequency bands (e.g., Ku, Ka, W-band) and advanced signal processing algorithms to extract faint drone signals from strong urban clutter.
• Accurate Classification and Identification Employs Micro-Doppler Signature Analysis to distinguish drones from birds and identify drone types (e.g., quadcopter, hexacopter) by analyzing periodic modulations in the radar return caused by rotor blades.
• Multi-Sensor Fusion Radar rarely works alone. It typically acts as the sensory hub, integrated with Electro-Optical/Infrared (EO/IR) systems and RF sensors. This creates an efficient "radar-detect, EO/IR-confirm" cycle for verification and forensic evidence.
• High Resolution and Clutter Resistance Designed to perform reliably in complex urban environments with robust resistance to clutter interference, leveraging adaptive beamforming and intelligent filtering techniques.

Safeguarding the low-altitude economy does not rely on a single radar type but requires a layered, collaborative sensor network:

• Wide-Area Layer: A backbone surveillance network formed by Phased Array Radars and Distributed Radar Networks for early warning and situational awareness.
• Critical Zone Layer: Deployment of high-performance FMCW Radars and Spectrum Detection Systems at key sites like airports and critical infrastructure for seamless, high-precision monitoring.
• Platform Layer: FMCW Radars integrated into the drones themselves for autonomous obstacle avoidance, preventing collisions at the source.

By intelligently combining different types of radars with other sensors, we can weave an invisible, intelligent, and reliable safety net for the burgeoning low-altitude economy, ensuring its vast socio-economic potential is realized securely and sustainably.
