800 - 1500M Portable Drone Jammer Gun Counter UAV System 6 Band

Brand Name:	FengQing
Model Number:	FQ-G006
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Function:

Achieves Effects Such As Driving Away, Forcing Down, Or Recalling UAVs By Interfering With Their Remote Control, Navigation, And Image Transmission Systems; Adopts Electronic Countermeasure Methods, Emits Specific Frequency Band Electromagnetic Waves To Qu

Technical Advantages:

Relies On High-frequency Broadband Interference-free Technology, Combined With Single-channel Switch Precise Control Of Power Output, To Achieve High Effective Power (channel Power) With Long Interference Distance. Through Effective Frequency Segmentation,

Application Scenarios:

Suitable For Preventing Unauthorized UAV Flights In Large Public Events (such As Sports Competitions, Concerts), And Can Also Be Used By Military And Police Forces To Deal With UAV Reconnaissance And Attack Threats. It Can Also Be Integrated With Other Sec

Operating Voltage:

25.9 V

Battery Energy:

≥ 125 Wh (5,000 MAh @ 25.9V)

Net Weight:

~4 Kg

Gross Weight:

~9.2 Kg

Unit Dimensions (L×W×H):

700 × 300 × 150 Mm

Packaging Dimensions (L×W×H):

1000 × 500 × 250 Mm

Interference Distance:

800 - 1500M (varies Depending On Specific Scenarios And UAV Models)

Packaging Details:

Box Meets Your Requirements

Highlight:

800M Portable Drone Jammer Gun

1500M Portable Drone Jammer Gun

Counter UAV System 6 Band

Product Description

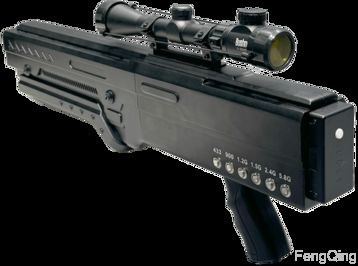

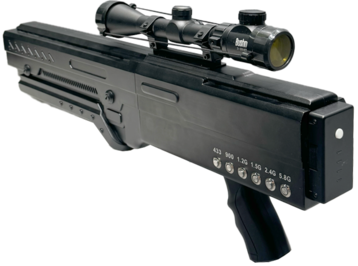

6-Band Portable Drone Jammer Gun Counter-UAV System

Product Introduction

The Portable Countermeasure Gun neutralizes UAVs by jamming their remote control, navigation, and video transmission systems. Its effects include repelling drones, forcing them to land, or triggering their automatic return-to-home function. The device employs electronic countermeasure (ECM) technology, emitting targeted electromagnetic waves in specific frequency bands to quickly suppress target drones and sever their communication and navigation links with the operator from a long distance.

This portable counter-UAV system has a wide range of applications. For instance, it can be deployed at large-scale public events such as sporting events and concerts to prevent drones from disrupting public order or conducting unauthorized surveillance. Furthermore, military and police units utilize these devices to counter threats posed by hostile drone reconnaissance or attacks. Integrating this counter-UAV technology with other security systems enhances overall defensive capabilities.

Product Features

Superior Jamming Performance

Utilizing ultra-high-frequency broadband seamless jamming technology and precise power output control via individual channel switches, the system delivers high effective radiated power (ERP) per channel for extended range.
Its advanced band-segmentation function targets only the control and video transmission frequencies of drones, leaving other bands unaffected.
This ensures powerful countermeasures against UAVs while maintaining excellent electromagnetic compatibility (EMC) with the surrounding environment.

User-Friendly Operation

Featuring a built-in, hot-swappable battery, the system provides over 30 minutes of operational time, meeting the demands of short-term, flexible deployment.
It requires no complex operational training and can be activated instantly in response to sudden threats, making it adaptable for emergency countermeasure scenarios.

Enhanced Stability and Reliability

Constructed with imported components and a soft-start circuit design, the system eliminates the risk of arcing associated with mechanical switches.
Its high level of integration ensures stable operation.
Two external high-performance fans significantly improve thermal management, further enhancing the reliability of the device during prolonged operation.

Technical Specifications

Operating Frequency Bands

Output Terminal	Operating Frequency	Power
433MHz	433MHz	40±1dBm
900MHz	860 - 930MHz	40±1dBm
1.2G	1160 - 1220MHz	40±1dBm
1.5G	1550 - 1620MHz	44±1dBm
2.4G	2400 - 2500MHz	44±1dBm
5.8G	5720 - 5850MHz	44±1dBm

Structural Parameters

Parameter	Details
Interference distance	800 - 1500M (specific distance depends on the model of the UAV, the distance between the drone and the pilot)
Power supply	25.9V
Battery capacity	5000mAh
Host weight	approximately 4Kg
Weight with packaging	approximately 9.2Kg
Size	700300150mm
Outer packaging size	1000mm500mm250mm
