| Brand Name: | FengQing |
| Model Number: | QVPA0859P52CW |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,000pcs/month |
150W ceramic-packaged Anti-Drone Power Amplifier freguency coverage from 800-5950MHz 28V DC High stability, not affected by weather conditions
800-5950MHz 28V DC high-performance amplifier with exceptional stability unaffected by weather conditions. Features directional interference support with multi-band coverage for drone detection and countermeasure systems.
Key Advantages
Core Features
Application Scenarios
(Strictly limited to legally authorized scope)
Technical Specifications
150W working frequency band and electrical characteristics:
| No. | Output Power (W) | Frequency (MHz) | Output Power (dBm) | Power Flatness (dB) | Output Current (A) | Size (mm) |
|---|---|---|---|---|---|---|
| 1 | 150W | 800-900 | ≥51.8 | ≤0.1 | ≤11 | 180*90*22.8 |
| 2 | 150W | 1100-1300 | ≥51.8 | ≤0.1 | ≤11 | 180*90*22.8 |
| 3 | 150W | 1550-1620 | ≥51.8 | ≤0.1 | ≤10 | 180*90*22.8 |
| 4 | 150W | 2300-2500 | ≥51.8 | ≤0.1 | ≤15 | 180*90*22.8 |
| 5 | 150W | 5100-5300 | ≥51.8 | ≤0.1 | ≤13 | 180*100*22.8 |
| 6 | 150W | 5700-5950 | ≥51.8 | ≤0.1 | ≤13 | 180*100*22.8 |
Complete specifications available upon request

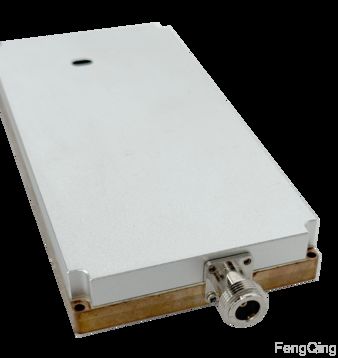

Product Images
Frequently Asked Questions
Q1: What frequency bands does this module support jamming?
A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
