| Brand Name: | FengQing |
| Model Number: | QVPA0425-00550W-B |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

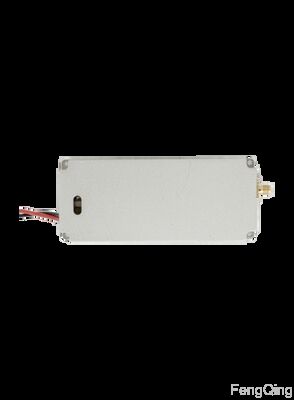

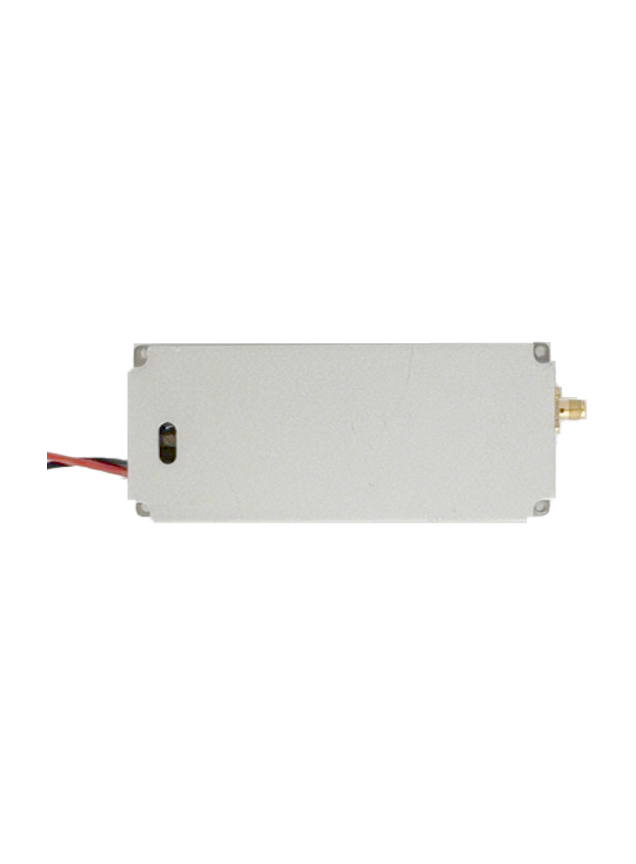

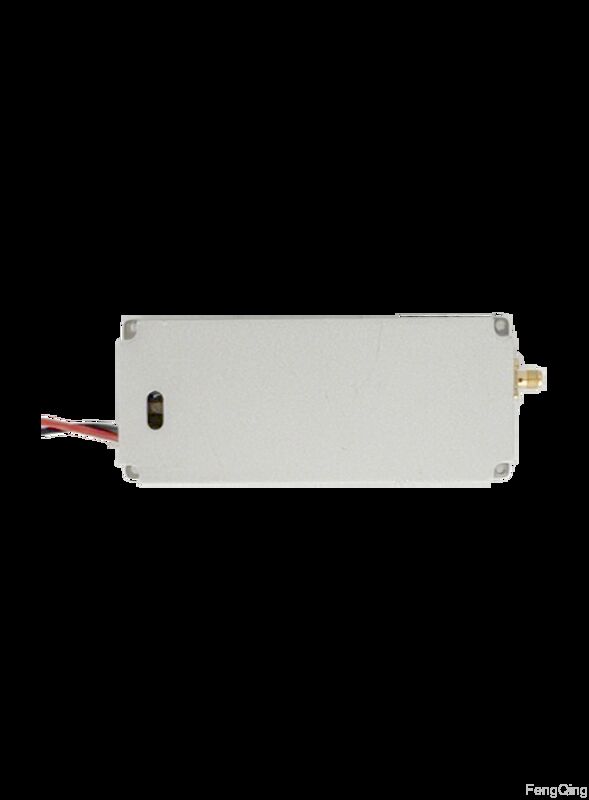

400MHz-2500MHz Plastic-packaged Anti-Drone Amplifier (50mW-50W):high linearity, high gain, excellent heat dissipation, lightweight & easy to integrate. Fits multi-band jamming, ideal for handheld/vehicle-mounted/fixed anti-drone platforms.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥50mW-50W | 400-500MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 2 | ≥50mW-50W | 650-800MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 3 | ≥50mW-50W | 800-1050MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 4 | ≥50mW-50W | 1100-1300MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 5 | ≥50mW-50W | 1300-1450MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 6 | ≥50mW-50W | 1450-1600MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 7 | ≥50mW-50W | 1550-1650MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 8 | ≥50mW-50W | 2400-2500MHz | ≥17dBm-47dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6000 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
