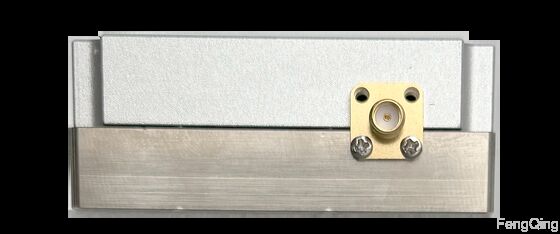

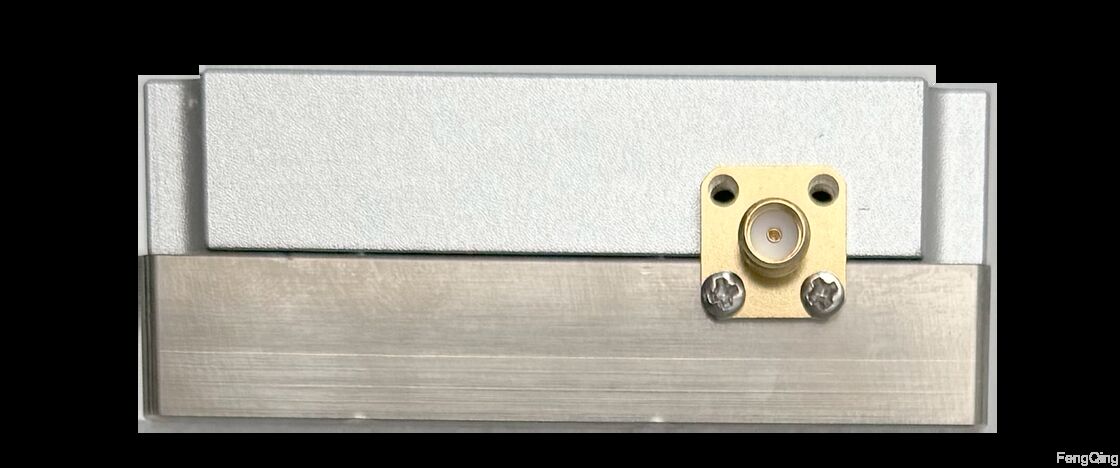

Anti Drone Ceramic Packaged Broadband High Power Amplifier Broadband Rf Amplifier

Name: Anti Drone Ceramic Packaged Broadband High Power Amplifier Broadband Rf Amplifier
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: QVPA0062-00570W-GN
Availability: InStock

Brand Name:	FengQing
Model Number:	QVPA0062-00570W-GN
MOQ:	1
Price:	Negotiated
Payment Terms:	T/T,L/C
Supply Ability:	80,00pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Document:

QVPA0060-70100W-GN.pdf

Output Power/W:

≥50mW-70W

Operating Frequency:

100-6200MHz

Output Power/dBm:

≥17dBm-48.5dBm

Power Flatness/ DB:

≤0.1dB

Efficiency/%:

50%-65%

Size/(mm):

120*50*18.8/190*75*30/130*50*18.8

Packaging Details:

Packaging with anti-collision foam

Highlight:

Anti Drone broadband high power amplifier

EMC packaged broadband high power amplifier

EMC packaged broadband rf amplifier

Product Description

100MHz–6.2GHz, 50mW–70W, Wideband Ceramic-Packed Anti-Drone Power Amplifier

100MHz–6.2GHz Ceramic-packaged Anti-Drone Amplifier (50mW–70W):suppresses multi-system signals, stable heat dissipation, corrosion-resistant (for coastal/rainy environments), vibration & shock-proof (essential for vehicle/military scenarios), easy integration, fits multi-scenario platforms.

Application Scenarios

(Strictly limited to legally authorized scope)

Airspace protection for important political and diplomatic activities
No-fly zone defense for key national infrastructure (military airports, nuclear facilities, chemical plants, dams)
Preventing UAV contraband delivery in prisons and rehabilitation centers
Air safety for large-scale public events (sports events, concerts)
Border patrol and low-altitude defense in sensitive areas

Working frequency band and its electrical characteristics

Num	Output power/W	Frequency/MHz	Output power/dBm	Power flatness/dB	Efficiency/%	Size/mm
1	≥50mW-70W	100-200MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
2	≥50mW-70W	200-300MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
3	≥50mW-70W	200-380MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1205018.8
4	≥50mW-70W	100-200MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
5	≥50mW-70W	200-300MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
6	≥50mW-70W	200-380MHz(With Circulator)	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1907530.0
7	≥50mW-70W	300-400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
8	≥50mW-70W	300-500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
9	≥50mW-70W	400-500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
10	≥50mW-70W	400-700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
11	≥50mW-70W	500-600MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
12	≥50mW-70W	600-700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
13	≥50mW-70W	700-800MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
14	≥50mW-70W	700-1000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
15	≥50mW-70W	800-900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
16	≥50mW-70W	900-1000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
17	≥50mW-70W	1000-1100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
18	≥50mW-70W	1050-1340MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
19	≥50mW-70W	1300-1600MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
20	≥50mW-70W	1550-1620MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
21	≥50mW-70W	1600-1900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
22	≥50mW-70W	1800-2000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
23	≥50mW-70W	2000-2100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
24	≥50mW-70W	2100-2400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
25	≥50mW-70W	2300-2550MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
26	≥50mW-70W	2400-2700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
27	≥50mW-70W	2700-2900MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
28	≥50mW-70W	2700-3100MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
29	≥50mW-70W	3100-3400MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
30	≥50mW-70W	3300-3500MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
31	≥50mW-70W	3400-3700MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
32	≥50mW-70W	3700-4000MHz	≥17dBm-48.5dBm	≤0.1dB	50%-65%	1305018.8
33	≥50mW-70W	3900-4100MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
34	≥50mW-70W	4000-4400MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
35	≥50mW-70W	4300-4500MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1305018.8
36	≥50mW-70W	4400-4800MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
37	≥50mW-70W	4800-5100MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
38	≥50mW-70W	5100-5400MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
39	≥50mW-70W	5150-5350MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
40	≥50mW-70W	5400-5700MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
41	≥50mW-70W	5700-5950MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0
42	≥50mW-70W	5950-6200MHz	≥17dBm-48.5dBm	≤0.1dB	43%-50%	1205018.0

Fengqing Power Amplifier Product Catalog

Plastic-packaged GaN HEMT power amplifier series catalog

Output Power/W	Model	Output Power/ MHz	Size/(mm)
≥50mW–50W	QVPA0425-00550W-B	400–2500	1205018.8
≥50mW–50W	QVPA0425-00550W-B2	400–2550	1113719.5

Ceramic-packaged GaN HEMT power amplifier series catalog

Output Power / W	Model	Output Power/ MHz	Size/(mm)
≥50mW–50W	QVPA0062-00550W-GN	100–6200	1113719.5
≥50mW–50W	QVPA0062-00550W-GN	100–6200	1123819.5
≥50mW–70W	QVPA0062-00570W-GN	100–6200	1205018.8
			1907530
			1305018.8
≥70W–100W	QVPA0060-70100W-GN	100–6000	1907530
			1305018.8
			1265618.8
			1806018.8
≥150W–200W	QVPA0059-150200W-GN	400–5950	1809022.8
≥150W–200W	QVPA0059-150200W-GN	400–5950	18010022.8

Frequently Asked Questions

Q1: What frequency bands does this module support jamming?

A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.

Q2: What if I cannot find the frequency band I need?

A2: All frequency bands can be customized to meet your specific needs.

Q3: What is the module's output power?

A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.

Q4: How is it integrated?

A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.

Q5: Does it support multi-module collaboration?

A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.

Q6: What are the typical application scenarios?

A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.

Q7: How reliable is the module?

A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.

Q8: Is it compliant with relevant regulations?

A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
