| Brand Name: | FengQing |
| Model Number: | QVPA0059-150200W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

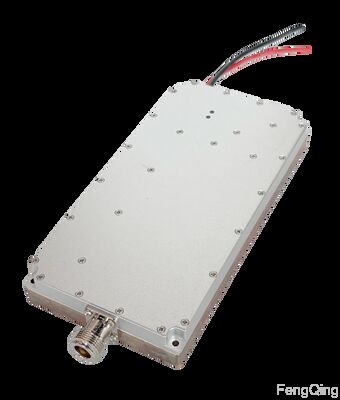

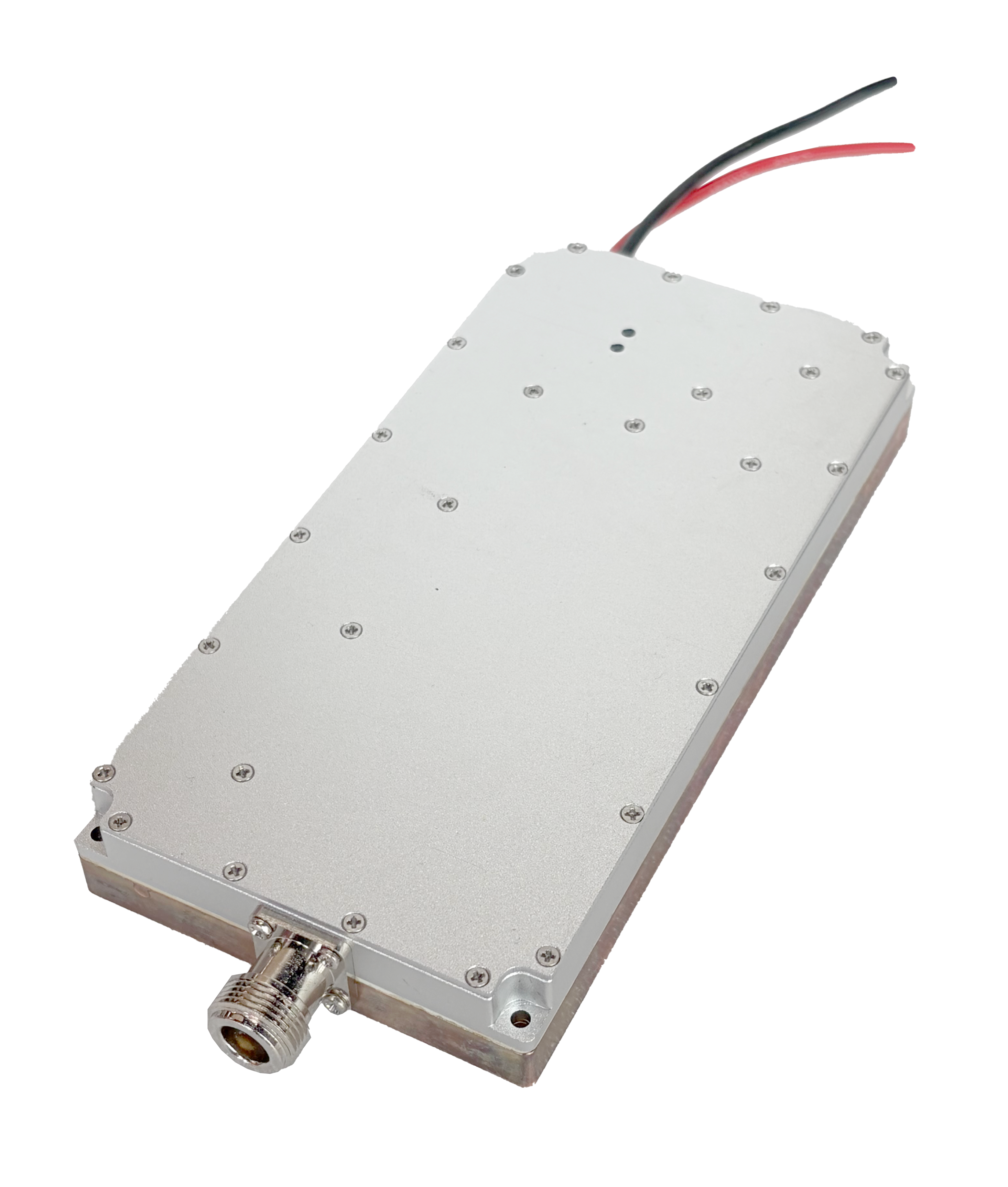

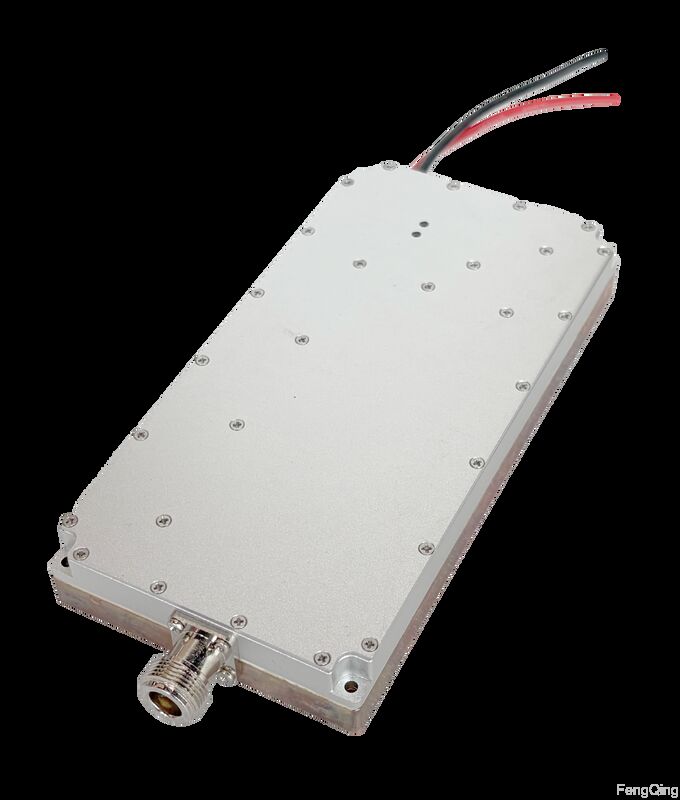

This wideband power amplifier module incorporates an advanced built-in protection circuit system, delivering unparalleled reliability and stability. Its wideband design ensures exceptional performance output across a broad frequency range, making it suitable for diverse complex application scenarios. The integrated protection mechanisms continuously monitor operational status, effectively addressing anomalies such as overvoltage, overcurrent, and overtemperature conditions, thereby significantly enhancing hardware-level robustness.
This highly integrated design enables the module to perform consistently in demanding operating environments and under sudden load variations. Whether facing impedance mismatch, power supply fluctuations, or sustained high-load operation, the protection circuitry responds instantaneously to prevent damage to the core amplifier. This not only substantially reduces system failure risks and extends service life but also allows engineers to focus on system-level innovation without expending resources on complex RF protection design, ultimately accelerating product development cycles.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥150W-200W | 400-500 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 2 | ≥150W-200W | 500-600 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 3 | ≥150W-200W | 400-600 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 4 | ≥150W-200W | 600-700 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 5 | ≥150W-200W | 700-800 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 6 | ≥150W-200W | 600-800 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 7 | ≥150W-200W | 800-1050 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 8 | ≥150W-200W | 900-1100 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 9 | ≥150W-200W | 1050-1340 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 180*90*22.8 |
| 10 | ≥150W-200W | 1100-1300 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 11 | ≥150W-200W | 1300-1500 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 12 | ≥150W-200W | 1500-1700 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 13 | ≥150W-200W | 1700-1900 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 14 | ≥150W-200W | 1900-2100 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 15 | ≥150W-200W | 2100-2300 MHz | ≥52dBm-53dBm | ≤0.1dB | 50%-55% | 170*85*22.8 |
| 16 | ≥150W-200W | 2300-2500 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 17 | ≥150W-200W | 2400-2500 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 18 | ≥150W-200W | 2500-2700 MHz | ≥52dBm-53dBm | ≤0.1dB | 47%-50% | 170*85*22.8 |
| 19 | ≥150W-200W | 5100-5350 MHz | ≥52dBm-53dBm | ≤0.1dB | 42%-50% | 180*100*22.8 |
| 20 | ≥150W-200W | 5700-5900 MHz | ≥52dBm-53dBm | ≤0.1dB | 42%-50% | 180*100*22.8 |
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
| Output Power / W | Model | Output Power/ MHz | Size /(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6200 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 170*85*22.8 | |||
| 180*100*22.8 |
