| Brand Name: | FengQing |
| Model Number: | QVPA0825P47CWMN-B |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |
50W Mini EMC Anti-Drone Power Amplifier freguency coverage from 800-2550MHz 28V DC Simple maintenance, reducing labor costs
The 50W MINI Anti-Drone Module Power Amplifier provides directional interference support and multi-band coverage for drone detection and countermeasure systems. This high-performance electronic countermeasures unit features modular architecture for easy integration into fixed, vehicle-mounted, or portable platforms.
Key Advantages
Core Features
Application Scenarios
(Strictly limited to legally authorized scope)
Technical Specifications
| Output Power/W | Frequency/MHz | Output Power/dBm | Power Flatness/dB | Output Current/A | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 50W | 800-900MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | 111*37*19.5mm |
| 800-1050MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 900-1000MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 1000-1100MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 1050-1340MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 1550-1620MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 1700-1900MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 1800-2000MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 2000-2100MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 2100-2400MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% | ||
| 2350-2550MHz | 47dBm | ±0.1dB | <3.3A | 50%~55% |

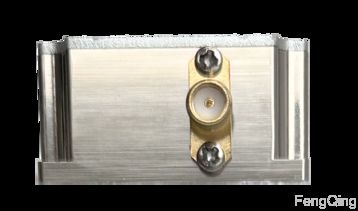

Product Image
Frequently Asked Questions
Q1: What frequency bands does this module support jamming?
A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
