| Brand Name: | FengQing |
| Model Number: | QVPA0062-00570W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

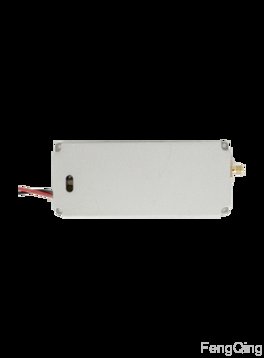

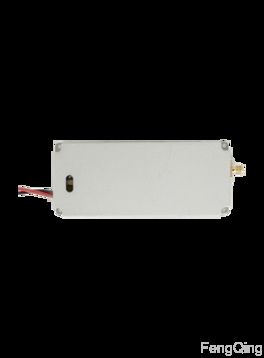

This EMC-encapsulated anti-drone power amplifier is engineered for robust and prolonged field operations. It boasts an impressive frequency coverage from 100 to 6200 MHz, ensuring compatibility across a wide spectrum of threats. A key feature of its design is the integration of long operational endurance with a simplified thermal management system, which enhances overall reliability while reducing logistical complexity.
The module is specifically optimized for precision directional jamming capabilities. By concentrating RF energy on a specific target, it enables highly effective neutralization of unauthorized drones while significantly minimizing the risk of collateral interference to surrounding systems. This combination of precise targeting, broad frequency agility, and resilient packaging makes it an indispensable tool for safeguarding sensitive airspace.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥50mW-70W | 100-200MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 2 | ≥50mW-70W | 200-300MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 3 | ≥50mW-70W | 200-380MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 4 | ≥50mW-70W | 100-200MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 5 | ≥50mW-70W | 200-300MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 6 | ≥50mW-70W | 200-380MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 7 | ≥50mW-70W | 300-400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 8 | ≥50mW-70W | 300-500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 9 | ≥50mW-70W | 400-500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 10 | ≥50mW-70W | 400-700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 11 | ≥50mW-70W | 500-600MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 12 | ≥50mW-70W | 600-700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 13 | ≥50mW-70W | 700-800MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 14 | ≥50mW-70W | 700-1000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 15 | ≥50mW-70W | 800-900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 16 | ≥50mW-70W | 900-1000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 17 | ≥50mW-70W | 1000-1100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 18 | ≥50mW-70W | 1050-1340MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 19 | ≥50mW-70W | 1300-1600MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 20 | ≥50mW-70W | 1550-1620MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 21 | ≥50mW-70W | 1600-1900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 22 | ≥50mW-70W | 1800-2000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 23 | ≥50mW-70W | 2000-2100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 24 | ≥50mW-70W | 2100-2400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 25 | ≥50mW-70W | 2300-2550MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 26 | ≥50mW-70W | 2400-2700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 27 | ≥50mW-70W | 2700-2900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 28 | ≥50mW-70W | 2700-3100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 29 | ≥50mW-70W | 3100-3400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 30 | ≥50mW-70W | 3300-3500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 31 | ≥50mW-70W | 3400-3700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 32 | ≥50mW-70W | 3700-4000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 33 | ≥50mW-70W | 3900-4100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 34 | ≥50mW-70W | 4000-4400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 35 | ≥50mW-70W | 4300-4500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 36 | ≥50mW-70W | 4400-4800MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 37 | ≥50mW-70W | 4800-5100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 38 | ≥50mW-70W | 5100-5400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 39 | ≥50mW-70W | 5150-5350MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 40 | ≥50mW-70W | 5400-5700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 41 | ≥50mW-70W | 5700-5950MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 42 | ≥50mW-70W | 5950-6200MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6000 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
