427mm Wheelbase UAV Drone 227g FPV Frame 5.8G

Name: 427mm Wheelbase UAV Drone 227g FPV Frame 5.8G
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: FQ-I10
Availability: InStock

Brand Name:	FengQing
Model Number:	FQ-I10
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Core Material & Weight:

T300 Carbon Fiber, 3x Stronger Than Same-size Metal Frames, Only 227g; Supports Heavy Loads With Better Endurance.

Wheelbase & Flight Performance:

427mm Wheelbase For 10-inch Propellers; 40% Stronger Wind Resistance, Stable Images, High Propulsion Efficiency, Suitable For Long-distance Cruising.

Structural Durability:

7.5mm Thick Arms (50% Thicker Than 5/7-inch Models), 3.0mm Thick Top Plate, 2.0mm Lightweight Base Plate; Impact-resistant.

Compatibility & Convenience:

Dual-spec Motor Holes + Universal Camera/flight Controller Mounts; Compatible With Mainstream Accessories, No Extra Drilling Or Adapters Needed.

Packaging Details:

Box Meets Your Requirements

Highlight:

uav drone 227g

fpv frame 5.8g

427mm fpv frame

Product Description

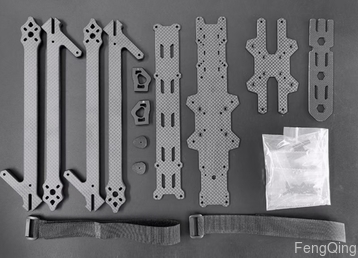

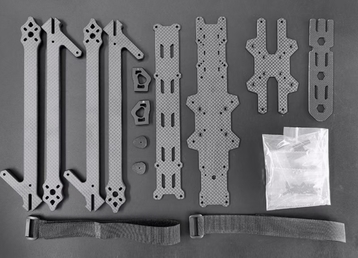

10-inch FPV Drone Frame Kit

Built with T300 carbon fiber, plus a 427mm long wheelbase and differentiated thickened structure, this 10-inch FPV drone frame kit can carry heavy accessories (large batteries, pro cameras) and stay stable in complex outdoor environments—ideal for medium/large FPV models.

Aerospace-Grade T300 Carbon Fiber: 3x stronger than same-size metal frames, yet only 227g. Avoids "heavy load, short endurance" issues of metal frames, supporting 10-inch propellers and large batteries for multi-accessory setups.
427mm Long Wheelbase: Designed for 10-inch propellers. 40% better wind resistance than small wheelbase models (reduces shake for clear aerial shots); high propulsion efficiency fits long-distance cruising.
Differentiated Thickened Structure: 7.5mm arms (50% thicker than 5/7-inch models) resist torque/impact; 3.0mm thick top plate (for heavy accessories) + 2.0mm lightweight base plate—balances durability and weight, extends endurance.
35mm Sufficient Space: Fits 6s-8s 8000-16000MAH batteries and 80A-100A ESCs easily. No cramped wiring (lowers overheating risk); easy to add GPS or image transmission antennas for upgrades.
Fully Compatible Design: Dual-spec motor holes (1616mm/1919mm) fit 4214/4218/4312 motors (no extra drilling); 19mm camera mount + 30.5*30.5mm flight controller mount work with most mainstream parts—saves assembly/modification time.

10-inch Frame

Project	10-inch FPV Drone Frame Kit
Model	10inch-V10
Wheelbase	427mm
Dimensions	268.18332.07
Weight	227g
Top Plate Thickness	3.0mm
Base Plate Thickness	2.0mm
Arm Thickness	7.5mm
Camera Mounting Hole Spacing	19mm
Map Mounting Hole Spacing	2020mm & 30.530.5mm
Flight Controller Mounting Angle	30.530.5mm
Internal Space Height	35mm
Motor Mounting Hole Spacing	1616mm & 1919mm
Recommended Configuration	(Not Included)
Motor	4214/4218/4312
ESC	80A-100A 6s-8s
Propeller	10-inch
Camera	19*19mm
Light Control	F4/F7/F405/F722
VTX	5.8G/1.2G/4.9G-1.2W-5W
Battery	6s-8s-8000MAH-16000MAH

Remarks:

Material: T300;
Quotation based on 10000PCS;
Quotation for carbon plates with regular materials and thickness; customized prices for customers are subject to separate negotiation;
