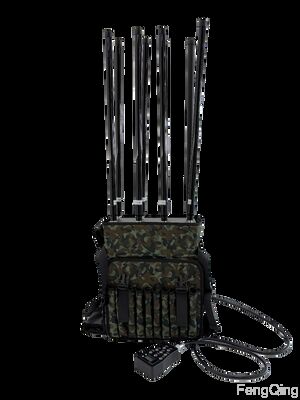

This backpack-type drone jamming equipment features an independent battery charging and management system, completely separating the power replenishment process from the main unit. Spare battery modules can be centrally controlled and safely charged as independent units, without occupying the device's operational window. This professional management solution not only significantly improves the turnover efficiency of equipment during continuous operations but also effectively avoids device downtime and tactical gaps caused by charging procedures.
The independent management system enables status monitoring, cycle counting, and health assessment for each battery, achieving refined control over power assets. In actual deployment, operators can quickly rotate fully charged battery modules while the main device remains in a constant state of combat readiness. This design adheres to strict equipment safety management protocols while establishing an efficient, reliable, and scalable energy support system, laying a solid logistical foundation for prolonged, high-intensity countermeasure missions.
| Equipment parameters | ||
|---|---|---|
Counter parameter | Counter frequency band 1 | 433MHz,100W/50+1dbm |
| Counter frequency band 2 | 500MHz,100W/50+1dbm | |
| Counter frequency band 3 | 900MHz,100W/50+1dbm | |
| Counter frequency band 4 | 1200MHz,100W/50+1dbm | |
| Counter frequency band 5 | 1500MHz,100W/50+1dbm | |
| Counter frequency band 6 | 2400MHz,100W/50+1dbm | |
| Counter frequency band 7 | 5200MHz,100W/50+1dbm | |
| Counter frequency band 8 | 5800MHz,100W/50+1dbm | |
| Frequency band and power can be customized according to requirements | ||
Structural parameter | Backpack size | 430*224*650mm |
| Backpack weight | 19kg | |
| Set weight | 25kg | |
| Battery size | 310*140*80mm | |
| Battery weight | 6kg | |
| Battery capacity | 50Ah | |
| Battery life | 40-60min | |
| Charge mode | 29.4V charging adapter |
