2.4GHz 5.2GHz Anti Drone Equipment 5.8GHz Anti Drone Gun 6000mAh

2.4GHz 5.2GHz Anti Drone Equipment 5.8GHz Anti Drone Gun 6000mAh

Brand Name:	FengQing
Model Number:	FQ-G100
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Band 1: Frequency / Power:

1520 – 1620 MHz ± 5 MHz 20 W

Band 2: Frequency / Power:

2400 – 2483 MHz ± 5 MHz 20 W

Band 3: Frequency / Power:

5200 – 5280 MHz ± 5 MHz 20 W

Band 4: Frequency / Power:

5725 – 5825 MHz ± 5 MHz 20 W

Dimensions (L × W × H):

367 Mm × 114 Mm × 64 Mm

Weight:

< 4 Kg

Protection Rating:

IP54

Screen:

6.67 Inches, FHD+ Resolution (1080 × 2400 Pixels)

Battery:

28 V / 6000 MAh (Detachable)

Operating Temperature:

-35 °C To +55 °C

Primary Function:

To Locate UAVs And Their Operators, And To Jam UAV Remote Control And Video Transmission Signals.

Positioning Radius:

Up To 2 Km

Directional Jamming Range:

Up To 1.5 Km

Positioning Features:

Software Map Display, One-click Navigation To UAV/operator Locations, Blacklist/whitelist Functionality.

Detection Frequency Band:

70 MHz To 6 GHz

Key Detection Bands:

2.4 GHz, 5.2 GHz, 5.8 GHz

Packaging Details:

Box Meets Your Requirements

Highlight:

5.2ghz anti drone equipment

5.8ghz anti drone gun

anti drone equipment 5.8ghz

Product Description

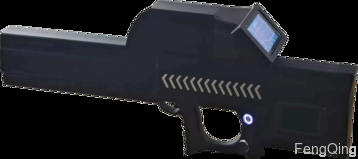

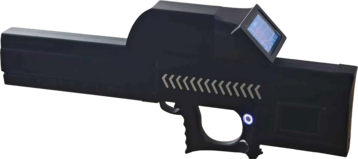

Portable Anti-drone Gun Reconnaissance And Strike Integrated

The Portable Reconnaissance and Strike Integrated Gun can locate both UAVs and their operators. It can drive away or force-land drones by jamming their remote control and video transmission signals. The device emits electromagnetic waves within specific frequency bands, achieving a directional jamming range of up to 1.5 km and a positioning radius of 2 km.

Suitable for deployment in various scenarios including national defense and military installations, public security and border control, airports and high-speed railways, as well as security at large-scale events. It effectively prevents UAVs from disrupting public order, conducting illegal surveillance, and other malicious activities, thereby enhancing low-altitude security.

Product Features

Multiple Early Warning Capabilities The system provides multiple forms of alert through haptic feedback (vibration), audible warnings, and precise location display on an integrated map for comprehensive situational awareness.
Precise Dual Targeting Accurately pinpoints both drone and operator locations with one-click navigation support, significantly enhancing pursuit and response efficiency.
Intelligent Blacklist/Whitelist Management Enables differentiated response policies with trusted drones whitelisted for silent monitoring while unauthorized drones trigger alarms.
Comprehensive Drone Library & Compatibility Supports all DJI series, mainstream brands, FPV, aerobatic, and DIY drones with full model library coverage.
Mobile, Portable & Flexible Deployment Excellent mobility with portable design enables dynamic operations adaptable to various environments.

Technical Specifications

Jamming Frequency Bands and Power - Frequency Band 1	1.5GHz(1520 - 1620)±5MHz
Jamming Frequency Bands and Power - Power 1	20W
Jamming Frequency Bands and Power - Frequency Band 2	2.4GHz(2400 - 2483)±5MHz
Jamming Frequency Bands and Power - Power 2	20W
Jamming Frequency Bands and Power - Frequency Band 3	5.2GHz(5200 - 5280)±5MHz
Jamming Frequency Bands and Power - Power 3	20W
Jamming Frequency Bands and Power - Frequency Band 4	5.8GHz(5725 - 5825)±5MHz
Jamming Frequency Bands and Power - Power 4	20W
Jamming Function	Driving away, Forced landing
Detection Frequency Band	70MHz - 6GHz
Key Detection Frequency Bands	2.4GHz, 5.2GHz, 5.8GHz
Battery	28V/6000mAh (Detachable)
Dimensions	367 * 114 * 64mm
Operating Ambient Temperature	-35℃ - +55℃
Protection Grade	IP54
Weight	<4kg
Functional Role	Locate positions of UAVs and operators, block UAV remote control and image transmission signals
Effective Distance	Positioning: Radius 2km; Jamming: Directional 1.5km
Positioning Function	Software map, one-click navigation to UAV and operator positions, black-and-white list
Screen Size	6.67 inches, Resolution: FHD+(1080*2400)
