| Brand Name: | FengQing |
| Model Number: | QVPA0162P47CW |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,000pcs/month |

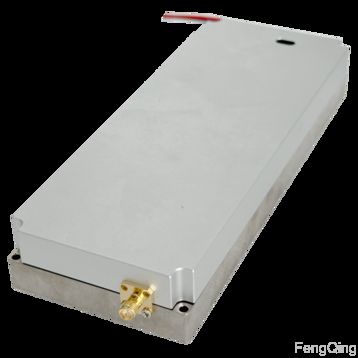

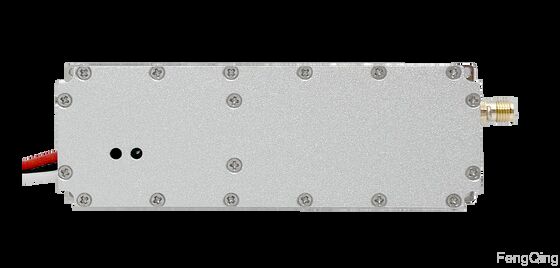

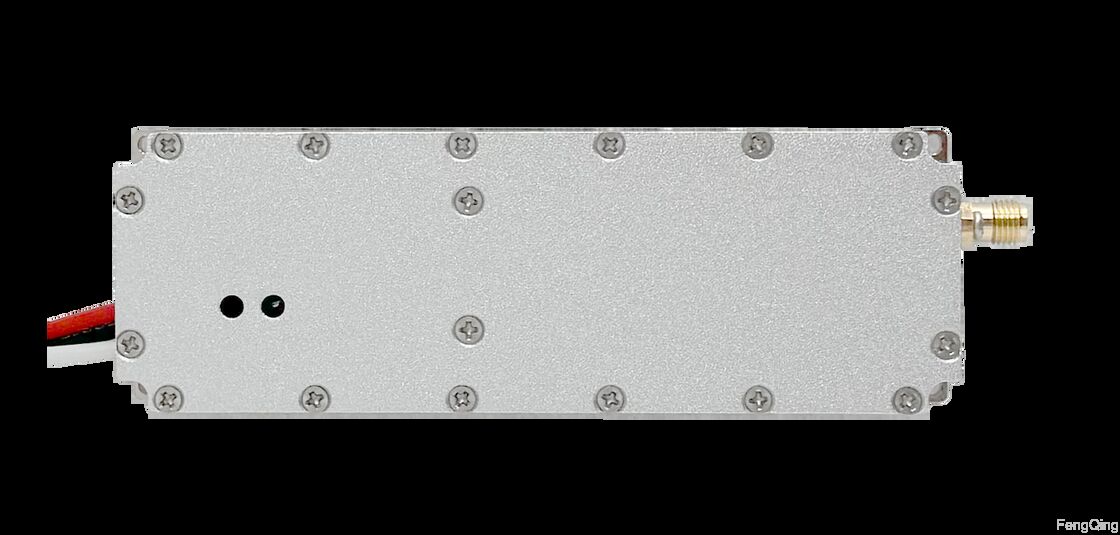

This anti-drone module is a high-performance electronic countermeasures unit designed specifically for drone detection and countermeasure systems. Its modular architecture allows for easy integration into fixed, vehicle-mounted, or portable platforms, making it suitable for military, security, and critical infrastructure protection scenarios.
(Strictly limited to legally authorized scope)
| Scenario |
|---|
| Airspace protection for security of important political and diplomatic activities |
| No-fly zone defense for key national infrastructure such as military airports, nuclear facilities, chemical plants and dams |
| Preventing UAVs from delivering contraband in special places such as prisons and drug rehabilitation centers |
| Air safety guarantee for large-scale public events (sports events, concerts) |
| Border patrol and low-altitude defense in sensitive areas |
Covers major drone remote control frequency bands and satellite navigation frequency bands, ensuring effective jamming capability against multiple models of drones.
Provides a saturated output power ranging from [X] W to [Y] W (depending on specific models), ensuring strong suppression capability even in complex electromagnetic environments and long-distance conditions.
Adopts advanced pre-distortion technology to optimize signal quality, enhance jamming efficiency, and reduce out-of-band spurious emissions, minimizing the incidental impact on legitimate communications.
Supports TTL level or high-speed serial interface control, achieving nanosecond-level switch switching. It seamlessly integrates with the system command and control unit to meet the needs of rapid response and precise strikes.
The product design complies with strict electromagnetic compatibility specifications.
50W working frequency band and its electrical characteristics
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Output current/A | Size/mm |
|---|---|---|---|---|---|---|
| 1 | 50W | 100-200MHz | ≥47dBm | ≤0.1dB | ≤4.2A | 120*50*18.8 |
| 2 | 50W | 200-300MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 120*50*18.8 |
| 3 | 50W | 200-380MHz | ≥47dBm | ≤0.1dB | ≤4.2A | 120*50*18.8 |
| 4 | 50W | 100-200MHz(With Circulator) | ≥47dBm | ≤0.1dB | ≤4.2A | 190*75*30.0 |
| 5 | 50W | 200-300MHz(With Circulator) | ≥47dBm | ≤0.1dB | ≤4.1A | 190*75*30.0 |
| 6 | 50W | 200-380MHz(With Circulator) | ≥47dBm | ≤0.1dB | ≤4.2A | 190*75*30.0 |
| 7 | 50W | 300-400MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 8 | 50W | 300-500MHz | ≥47dBm | ≤0.1dB | ≤4.3A | 130*50*18.8 |
| 9 | 50W | 400-500MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 10 | 50W | 400-700MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 11 | 50W | 500-600MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 12 | 50W | 600-700MHz | ≥47dBm | ≤0.1dB | ≤4.0A | 130*50*18.8 |
| 13 | 50W | 700-800MHz | ≥47dBm | ≤0.1dB | ≤4.0A | 130*50*18.8 |
| 14 | 50W | 700-1000MHz | ≥47dBm | ≤0.1dB | ≤4.2A | 130*50*18.8 |
| 15 | 50W | 800-900MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 16 | 50W | 900-1000MHz | ≥47dBm | ≤0.1dB | ≤4.0A | 130*50*18.8 |
| 17 | 50W | 1000-1100MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 18 | 50W | 1050-1340MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 19 | 50W | 1300-1600MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 20 | 50W | 1550-1620MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 130*50*18.8 |
| 21 | 50W | 1600-1900MHz | ≥47dBm | ≤0.1dB | ≤3.8A | 130*50*18.8 |
| 22 | 50W | 1800-2000MHz | ≥47dBm | ≤0.1dB | ≤3.7A | 130*50*18.8 |
| 23 | 50W | 2000-2100MHz | ≥47dBm | ≤0.1dB | ≤3.6A | 130*50*18.8 |
| 24 | 50W | 2100-2400MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 25 | 50W | 2300-2550MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 26 | 50W | 2400-2700MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 27 | 50W | 2700-2900MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 28 | 50W | 2700-3100MHz | ≥47dBm | ≤0.1dB | ≤4.2A | 130*50*18.8 |
| 29 | 50W | 3100-3400MHz | ≥47dBm | ≤0.1dB | ≤4.2A | 130*50*18.8 |
| 30 | 50W | 3300-3500MHz | ≥47dBm | ≤0.1dB | ≤4.0A | 130*50*18.8 |
| 31 | 50W | 3400-3700MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 32 | 50W | 3700-4000MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 33 | 50W | 3900-4100MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 34 | 50W | 4000-4400MHz | ≥47dBm | ≤0.1dB | ≤4.1A | 130*50*18.8 |
| 35 | 50W | 4300-4500MHz | ≥47dBm | ≤0.1dB | ≤3.8A | 130*50*18.8 |
| 36 | 50W | 4400-4800MHz | ≥47dBm | ≤0.1dB | ≤3.9A | 120*50*18.8 |
| 37 | 50W | 4800-5100MHz | ≥47dBm | ≤0.1dB | ≤4.4A | 120*50*18.8 |
| 38 | 50W | 5100-5400MHz | ≥47dBm | ≤0.1dB | ≤4.5A | 120*50*18.8 |
| 39 | 50W | 5150-5350MHz | ≥47dBm | ≤0.1dB | ≤4.3A | 120*50*18.8 |
| 40 | 50W | 5400-5700MHz | ≥47dBm | ≤0.1dB | ≤4.7A | 120*50*18.8 |
| 41 | 50W | 5700-5950MHz | ≥47dBm | ≤0.1dB | ≤4.5A | 120*50*18.8 |
| 42 | 50W | 5950-6200MHz | ≥47dBm | ≤0.1dB | ≤4.5A | 120*50*18.8 |
Q1: What frequency bands does this module support jamming?
A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
