| Brand Name: | FengQing |
| Model Number: | QVPA0060-70100W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,000pcs/month |

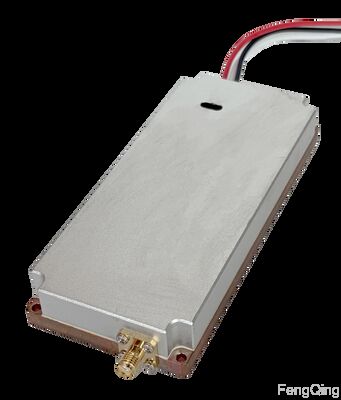

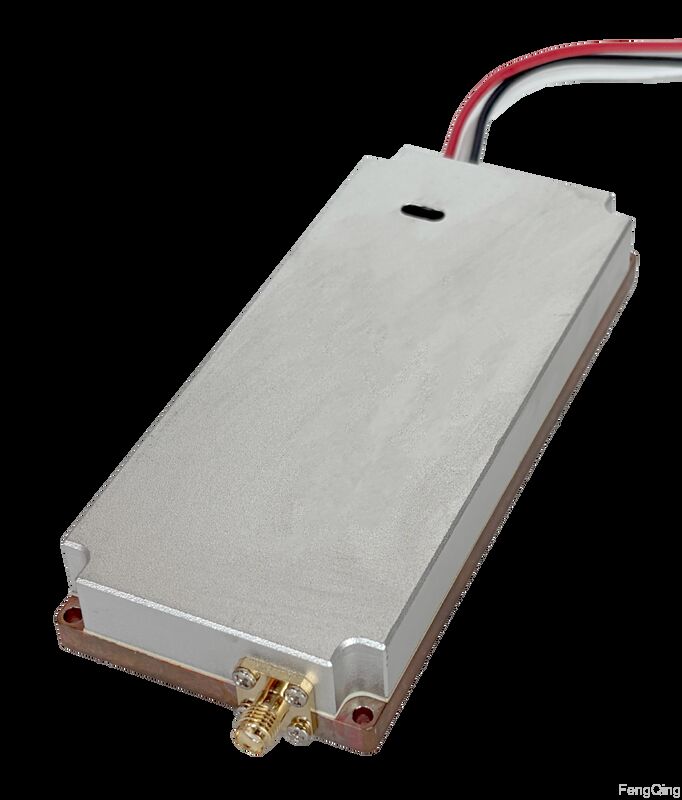

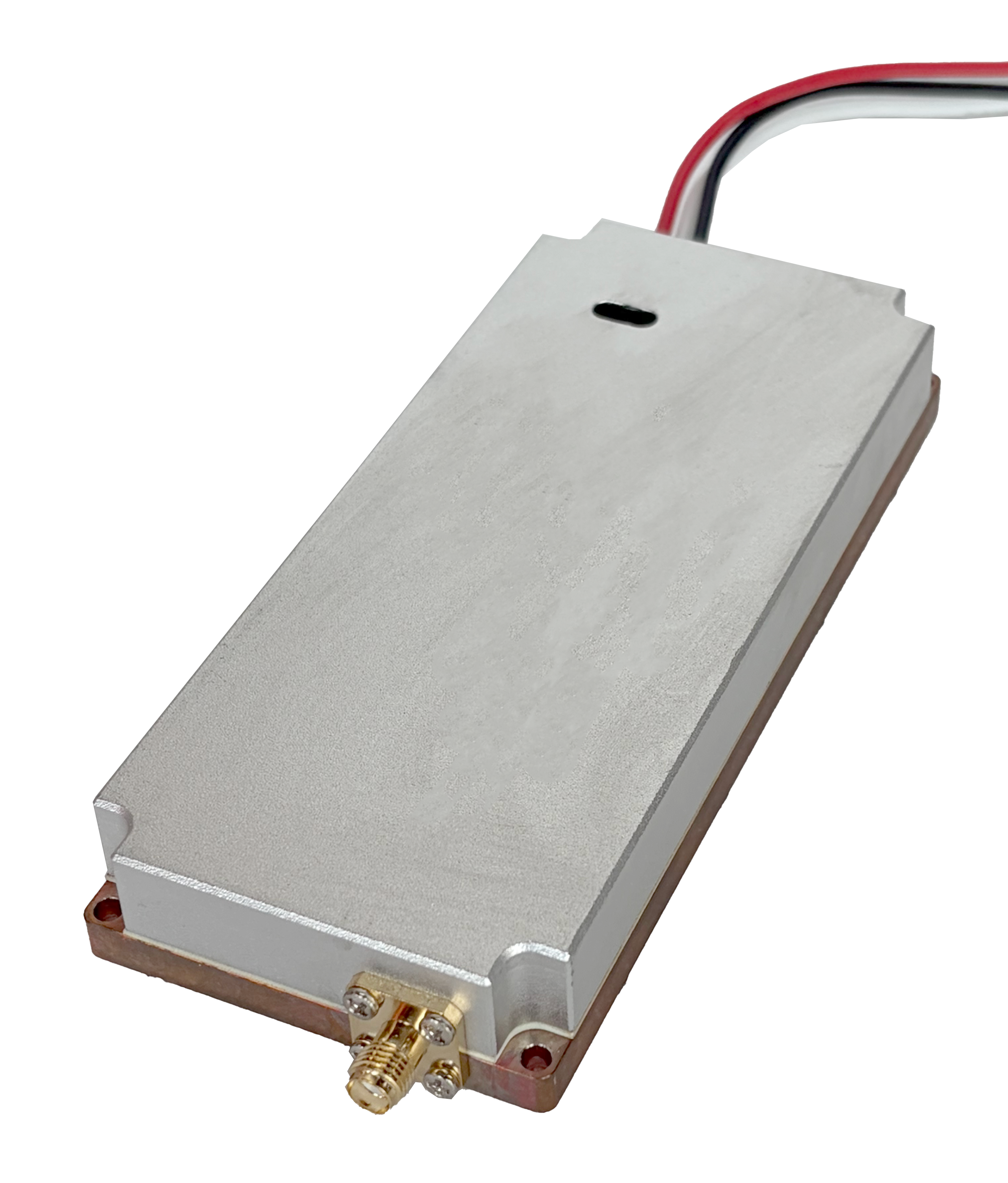

70W-100W Ceramic-packaged Anti-Drone Module freguency coverage from 100-6000MHz Power Amplifier Support Multi-band Interference Coverage Microwave Rf Amplifier Multi Band Interference Broadband Microwave Amplifier
This power amplifier combines microwave radio frequency and broadband characteristics, with multi-band jamming as its core advantage, enabling wide-range frequency coverage and precise jamming control. Integrating multi-band adaptability and broadband amplification performance, it can not only efficiently amplify target signals but also provide stable output for jamming requirements across different frequency bands. Suitable for multi-scenario applications such as communication countermeasures and electronic security, it offers reliable solutions for various systems that balance signal amplification efficiency and jamming coverage breadth.
Application Scenarios
(Strictly limited to legally authorized scope)
Working frequency band and its electrical characteristics
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥70W-100W | 100-200MHz | ≥48.5dBm-49.2dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 2 | ≥70W-100W | 200-300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 3 | ≥70W-100W | 200-380MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 4 | ≥70W-100W | 400-700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 5 | ≥70W-100W | 600-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 6 | ≥70W-100W | 650-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 7 | ≥70W-100W | 700-900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 8 | ≥70W-100W | 700-1000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 9 | ≥70W-100W | 900-1150MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 10 | ≥70W-100W | 800-1050MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 11 | ≥70W-100W | 1050-1300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 12 | ≥70W-100W | 1300-1500MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 13 | ≥70W-100W | 1340-1560MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 14 | ≥70W-100W | 1500-1700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 15 | ≥70W-100W | 1600-1800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 16 | ≥70W-100W | 1700-1900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 17 | ≥70W-100W | 1800-2100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 18 | ≥70W-100W | 2100-2400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 19 | ≥70W-100W | 2300-2550MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 20 | ≥70W-100W | 2400-2700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 21 | ≥70W-100W | 2700-2900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 22 | ≥70W-100W | 2900-3100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 23 | ≥70W-100W | 3000-3300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 24 | ≥70W-100W | 3300-3600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 25 | ≥70W-100W | 3700-3900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 26 | ≥70W-100W | 3900-4100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 27 | ≥70W-100W | 4100-4300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 28 | ≥70W-100W | 4400-4600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 29 | ≥70W-100W | 4700-4900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 30 | ≥70W-100W | 4900-5100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 31 | ≥70W-100W | 5100-5400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
| 32 | ≥70W-100W | 5700-6000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
Fengqing Power Amplifier Product Catalog
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6000 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 180*100*22.8 |
Frequently Asked Questions
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
