| Brand Name: | FengQing |
| Model Number: | QVPA0425P4345CW-B |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

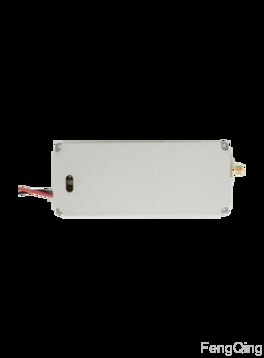

The 20/30W EMC-packaged Anti-Drone Module Power Amplifier provides directional interference support and multi-band coverage for drone detection and countermeasure systems. This high-performance electronic countermeasures unit features modular architecture for easy integration into fixed, vehicle-mounted, or portable platforms. Simple maintenance reduces labor costs. Customizable frequency band configuration. Standardized interface to reduce adaptation costs.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Output current/A | Size/mm |
|---|---|---|---|---|---|---|
| 1 | 20W/30W | 400-500MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 2 | 20W/30W | 650-800MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 3 | 20W/30W | 800-1050MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 4 | 20W/30W | 1100-1300MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 5 | 20W/30W | 1300-1450MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 6 | 20W/30W | 1450-1600MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 7 | 20W/30W | 1550-1650MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
| 8 | 20W/30W | 2400-2500MHz | ≥43/45dBm | ≤0.1dB | ≤1.3A(20W)/ ≤1.8A(30W) | 120*50*18.8 |
Q1: What frequency bands does this module support jamming?
A1: This module boasts extensive frequency coverage from 100MHz to 5.95GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (20W to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
