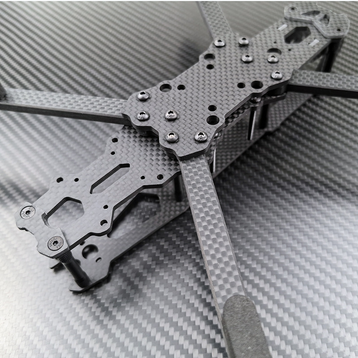

5 Inch FPV Drone Frame Kit UAV Frame 105g Ultra Lightweight

5-inch FPV Drone Frame Kit , built with the high-strength properties of T300 carbon fiber, precise dimensional design, and flexible adaptability, is specifically crafted for scenarios demanding high-speed control and stable flight.

• Aerospace-Grade T300 Carbon Fiber Material: The entire frame is made of industry-recognized high-performance T300 carbon fiber, boasting a strength-to-weight ratio far exceeding traditional metal frames.
• 105g Ultra-Lightweight Design: With a net weight of only 105g, the frame significantly reduces the overall load of the aircraft, lowers motor energy consumption, and improves flight endurance.
• 225mm Optimal Wheelbase: The classic 225mm wheelbase, compatible with 5-inch propellers, balances flight stability and agility.
• Thickened Arms + Double-Plate Reinforcement: The arms are 5mm thick, and both the top plate and base plate are 2.5mm thick, enhancing the frame's impact resistance.
• 35mm Sufficient Internal Space: With a 35mm internal height, it can easily accommodate core components such as 6s-8s batteries and 80A-100A ESCs.
• Two-Specification Motor Mounting Holes: Supports 1616mm and 1919mm motor mounting hole spacings, compatible with mainstream motor models.
• Universal Camera Mount: The 19mm camera mounting hole spacing is compatible with most 19*19mm FPV cameras on the market.
• Two-Size Map Mounting Holes: Offers 2020mm and 30.530.5mm map mounting hole spacings, adapting to GPS modules and flight controller expansion boards.
• 30.5*30.5mm Flight Controller Angle Design: Compatible with mainstream F4/F7/F405/F722 flight controllers, ensuring precise mounting angle and stable data collection.

This 5-inch FPV frame kit (Model: 5inch-V5) has dimensions of 145*172, featuring a compact overall structure without compromising spatial flexibility.

• Power System: Match with 4214/4218/4312 motors + 80A-100A 6s-8s ESCs.
• Imaging & Transmission: Compatible with 19*19mm FPV cameras and 5.8G/1.2G/4.9G-1.2W-5W VTX transmission modules.
• Power Supply & Control: Supports 6s-8s 8000MAH-16000MAH batteries with F4/F7/F405/F722 light controllers.

The frame is produced using standard T300 carbon plate specifications. Custom requirements for special thickness, color, or structure are available with prices subject to separate negotiation.

1. Material: T300;
2. Quotation based on 10000PCS;
3. Quotation for carbon plates with regular materials and thickness; customized prices for customers are subject to separate negotiation;
