Home /Products/Drone Detector/6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun)

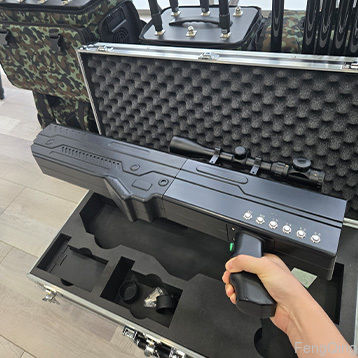

6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun)

1
MOQ
Negotiated
Price
6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun)
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency Bands & Power 1: 433MHz 430 – 440 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 2: 900MHz 860 – 930 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 3: 1.2GHz 1160 – 1220 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 4: 1.5 GHz 1550 – 1620 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 5: 2.4 GHz 2400 – 2500 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 6: 5.8 GHz 5720 – 5850 MHz 40 ± 1 DBm
Effective Jamming Range: 800 - 1500 M (Typical. Varies With Drone Model And Environment)
Operating Voltage: 25.9 V
Battery Energy: ≥ 125 Wh (5,000 MAh @ 25.9V)
Net Weight: ~4 Kg
Gross Weight: ~9.2 Kg
Unit Dimensions (L×W×H): 700 × 300 × 150 Mm
Packaging Dimensions (L×W×H): 1000 × 500 × 250 Mm
Highlight:

6-band drone jammer gun

,

long-distance anti-drone gun

,

portable drone jammer with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: FQ-G006
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description
6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun)
This portable anti-drone device functions by jamming the UAV's remote control, navigation, and video transmission systems. It can repel UAVs, force them to land, or trigger their automatic return-to-home function. Utilizing Electronic Countermeasure (ECM) technology, it emits targeted electromagnetic waves in specific frequency bands for long-distance, rapid suppression of target UAVs while disrupting their communication and navigation links.
Applications: Ideal for large-scale public events (sports events, concerts), military and police operations, and integration with security systems to enhance defensive capabilities against unauthorized UAV surveillance and threats.
Product Features
Superior Jamming Performance
  • Ultra-high-frequency broadband seamless jamming technology with precise power output control via individual channel switches
  • Advanced band-segmentation targets only drone control and video transmission frequencies, leaving other bands unaffected
  • High effective radiated power (ERP) per channel for extended range
  • Excellent electromagnetic compatibility (EMC) with surrounding environments
User-Friendly Operation
  • Built-in, hot-swappable battery provides over 30 minutes of operational time
  • No complex training required - instant activation for emergency response
  • Designed for short-term, flexible deployment scenarios
Enhanced Stability and Reliability
  • Constructed with imported components and soft-start circuit design
  • Eliminates risk of arcing associated with mechanical switches
  • High level of integration ensures stable operation
  • Dual external high-performance fans for superior thermal management during prolonged use
Technical Specifications
Operating Frequency Bands
Output Terminal Operating Frequency Power
433MHz 433MHz 40±1dBm
900MHz 860 - 930MHz 40±1dBm
1.2G 1160 - 1220MHz 40±1dBm
1.5G 1550 - 1620MHz 44±1dBm
2.4G 2400 - 2500MHz 44±1dBm
5.8G 5720 - 5850MHz 44±1dBm
Structural Parameters
Parameter Details
Interference distance 800 - 1500M (depends on UAV model and pilot distance)
Power supply 25.9V
Battery capacity 5000mAh
Host weight approximately 4Kg
Weight with packaging approximately 9.2Kg
Size 700*300*150mm
Outer packaging size 1000mm*500mm*250mm
6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun) 0 6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun) 1 6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun) 2 6-Band Long-Distance Portable Drone Jammer (Anti-Drone Gun) 3
