Event & Concert Airspace Shield: Short-term High-intensity Jamming, Low Collateral Impact.

Event & Concert Airspace Shield: Short-term High-intensity Jamming, Low Collateral Impact.

Brand Name:	FengQing
Model Number:	FQ-G006
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Operating Frequency Bands & Power 1:

433MHz 430 – 440 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 2:

900MHz 860 – 930 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 3:

1.2GHz 1160 – 1220 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 4:

1.5 GHz 1550 – 1620 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 5:

2.4 GHz 2400 – 2500 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 6:

5.8 GHz 5720 – 5850 MHz 40 ± 1 DBm

Effective Jamming Range:

800 - 1500 M (Typical. Varies With Drone Model And Environment)

Operating Voltage:

25.9 V

Battery Energy:

≥ 125 Wh (5,000 MAh @ 25.9V)

Net Weight:

~4 Kg

Gross Weight:

~9.2 Kg

Unit Dimensions (L×W×H):

700 × 300 × 150 Mm

Packaging Dimensions (L×W×H):

1000 × 500 × 250 Mm

Packaging Details:

Box Meets Your Requirements

Highlight:

drone jammer for events

concert airspace shield jammer

short-term high-intensity drone jammer

Product Description

Event & Concert Airspace Shield: Short-term High-intensity Jamming, Low Collateral Impact

Tactical-Grade Portable Counter-Drone Rifle

Suitable for Joint Military and Police Operations. This device can be activated during large-scale public events to provide short-term, high-efficiency interference to the control and image transmission links of common civilian drones, preventing unauthorized aerial photography and potential safety hazards. Achieves "targeted interference" through precise channel-by-channel output control, minimizing impact on other communication equipment at the event site and supporting fast power-up and on-site operation.

Product Features

Superior Jamming Performance

Utilizing ultra-high-frequency broadband seamless jamming technology and precise power output control via individual channel switches
Delivers high effective radiated power (ERP) per channel for extended range
Advanced band-segmentation function targets only drone control and video transmission frequencies
Maintains excellent electromagnetic compatibility (EMC) with the surrounding environment

User-Friendly Operation

Built-in, hot-swappable battery provides over 30 minutes of operational time
Requires no complex operational training
Can be activated instantly in response to sudden threats
Ideal for emergency countermeasure scenarios

Enhanced Stability and Reliability

Constructed with imported components and soft-start circuit design
Eliminates risk of arcing associated with mechanical switches
High level of integration ensures stable operation
Two external high-performance fans improve thermal management

Technical Specifications

Operating Frequency Bands

Output Terminal	Operating Frequency	Power
433MHz	433MHz	40±1dBm
900MHz	860 - 930MHz	40±1dBm
1.2G	1160 - 1220MHz	40±1dBm
1.5G	1550 - 1620MHz	44±1dBm
2.4G	2400 - 2500MHz	44±1dBm
5.8G	5720 - 5850MHz	44±1dBm

Structural Parameters

Parameter	Details
Interference distance	800 - 1500M (depends on UAV model and pilot distance)
Power supply	25.9V
Battery capacity	5000mAh
Host weight	approximately 4Kg
Weight with packaging	approximately 9.2Kg
Size	700300150mm
Outer packaging size	1000mm500mm250mm

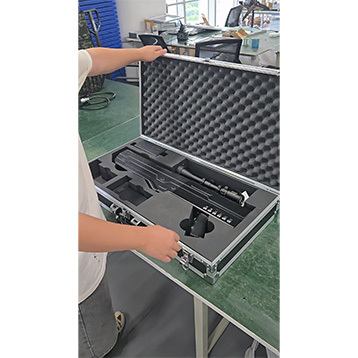

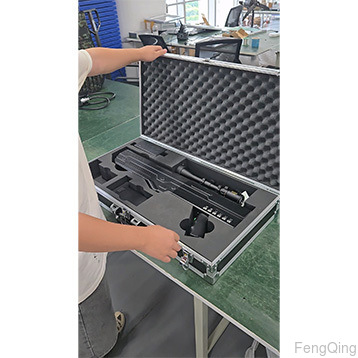

Product Images
