6-Band Long-Range Portable Counter-Drone Gun 1.5km

1
MOQ
Negotiated
Price
6-Band Long-Range Portable Counter-Drone Gun 1.5km
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency Bands & Power 1: 433MHz 430 – 440 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 2: 900MHz 860 – 930 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 3: 1.2GHz 1160 – 1220 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 4: 1.5 GHz 1550 – 1620 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 5: 2.4 GHz 2400 – 2500 MHz 40 ± 1 DBm
Operating Frequency Bands & Power 6: 5.8 GHz 5720 – 5850 MHz 40 ± 1 DBm
Effective Jamming Range: 800 - 1500 M (Typical. Varies With Drone Model And Environment)
Operating Voltage: 25.9 V
Battery Energy: ≥ 125 Wh (5,000 MAh @ 25.9V)
Net Weight: ~4 Kg
Gross Weight: ~9.2 Kg
Unit Dimensions (L×W×H): 700 × 300 × 150 Mm
Packaging Dimensions (L×W×H): 1000 × 500 × 250 Mm
Highlight:

6-band portable drone jammer

,

long-range counter-drone gun

,

1.5km drone signal blocker
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: FQ-G006
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description
6-Band Long-Range Portable Counter-Drone Gun 1.5km
This advanced counter-drone system utilizes six-band directional jammers covering 433MHz/900MHz/1.2GHz/1.5GHz/2.4GHz/5.8GHz frequencies. With single-channel effective transmit power up to 44±1dBm, it achieves a suppression range of 800-1500 meters (depending on drone model and operator distance). Designed for large-scale event security and temporary airspace control, it features quick deployment and hot-swappable battery capability. For authorized security, law enforcement, and military use only.
Key Features
Superior Jamming Performance
  • Ultra-high-frequency broadband seamless jamming technology with precise power output control via individual channel switches
  • Advanced band-segmentation targets only drone control and video transmission frequencies while leaving other bands unaffected
  • Maintains excellent electromagnetic compatibility (EMC) with surrounding environment
User-Friendly Operation
  • Built-in hot-swappable battery provides over 30 minutes of operational time
  • No complex training required - can be activated instantly for emergency response
  • Ideal for short-term, flexible deployment scenarios
Enhanced Stability and Reliability
  • Constructed with imported components and soft-start circuit design
  • Eliminates risk of arcing associated with mechanical switches
  • High level of integration ensures stable operation
  • Dual external high-performance fans improve thermal management
Technical Specifications
Operating Frequency Bands
Output Terminal Operating Frequency Power
433MHz 433MHz 40±1dBm
900MHz 860 - 930MHz 40±1dBm
1.2G 1160 - 1220MHz 40±1dBm
1.5G 1550 - 1620MHz 44±1dBm
2.4G 2400 - 2500MHz 44±1dBm
5.8G 5720 - 5850MHz 44±1dBm
Structural Parameters
Parameter Details
Interference distance 800 - 1500M (depends on UAV model and pilot distance)
Power supply 25.9V
Battery capacity 5000mAh
Host weight Approximately 4Kg
Weight with packaging Approximately 9.2Kg
Size 700*300*150mm
Outer packaging size 1000mm*500mm*250mm
Product Images

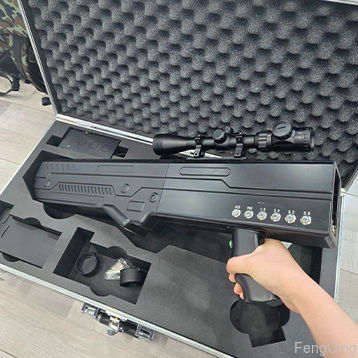

6-Band Long-Range Portable Counter-Drone Gun 1.5km 0
6-Band Long-Range Portable Counter-Drone Gun 1.5km 1
6-Band Long-Range Portable Counter-Drone Gun 1.5km 2
6-Band Long-Range Portable Counter-Drone Gun 1.5km 3
