2W ELRS-915M-TX High-Frequency Head High-frequency Coverage

Core Positioning
A compact, low-power, and high-performance 915MHz ELRS protocol wireless data transmission high-frequency head, featuring wide frequency coverage, high integration, and exceptional cost-effectiveness. It serves as a lightweight professional communication solution for small to medium-sized drones, remote-controlled models, and IoT devices.

Application Scenarios

1. Lightweight Drones and FPV Racing Drones: Suitable for competition, aerial photography, and other applications where weight and power consumption are critical, providing a stable low-latency control link.

2. Small to Medium-Sized Remote Control Models: Daily operation and medium-to-short-range data transmission for cars, boats, robots, and other models, balancing performance and battery life.

3. IoT and Smart Hardware: Functions as a long-range, low-power wireless module for sensor data transmission, remote control, and other IoT applications.

4. Education, R&D, and Maker Projects: Provides a cost-effective, easy-to-integrate 915MHz ELRS hardware platform for protocol learning and communication system prototyping and validation.

Core Selling Points

1. 2W Efficient Power and High-Frequency Coverage: Ensures sufficient communication range while achieving low power consumption and a compact form factor. The "high-frequency coverage" feature refers to support for multi-channel fast frequency hopping and wide-band adaptation under the ELRS protocol, effectively avoiding interference and enhancing link robustness.

2. Core Advantages Based on the ELRS Protocol: Inherits features such as extremely low latency, high refresh rates, strong anti-interference capabilities, and an open-source ecosystem, delivering professional-grade control and data transmission performance even with limited power.

3. Outstanding Power Consumption-to-Size Ratio: Optimized for mobile platforms, it achieves high performance within a compact volume, effectively extending device battery life and facilitating easy installation and integration.

   Essential Parameter

   Frequency bands:

   915MHz (FCC) and 868MHz (EU)

   output power:

   0.5W/1W/2W/5W/10W (Default factory setting: 5W)

   Refresh rate:

   25Hz/50Hz/100Hz/200Hz

   Power consumption:

   8.4V,2.3A@10W,200Hz, 1:200

   Antenna connector:

   SMA

   USB port:

   Type-C

   Battery input voltage range:

   5-8.4V (2S)

   Built-in fan power supply:

   5V

   alloy heat dissipation fin, alloy cover

   Main control IC:

   ESP32+LR1121, with ESP8285 as the back-up chip

   Warning: Do not connect a power supply of 2S or higher than 8.4V to the ELRS-915M-TX high frequency head. Otherwise, it may cause permanent damage.
   Warning: Before powering on the ELRS-915M-TX high-frequency head, install the manufacturer's matching antenna. Failure to do so may damage the PA chip and reduce power output.

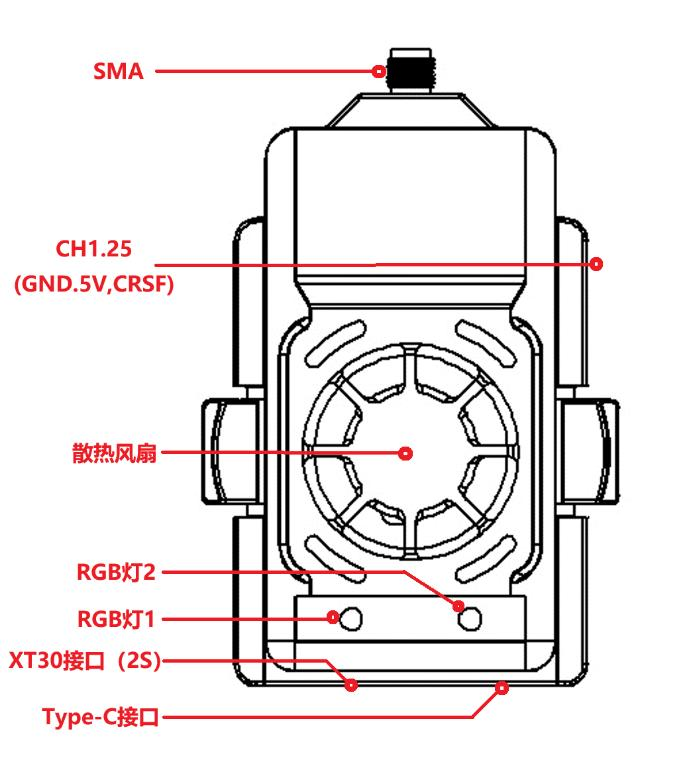

   The ELRS-915M-TX high-frequency head features a set of relay-compatible interfaces for user selection, with its base compatible with all Micro (also known as JR or SLIM) remote controls available on the market. The interface and design are shown in the figure below.

Within the compact JR interface standard dimensions, the system integrates up to 10W of transmission power. To achieve stable performance at this extreme level, the design team redefined the high-frequency head's structural design. By combining an aluminum alloy fin heat sink, an efficient turbo fan, a metal casing, and a 10W RF PA chip with dedicated heat dissipation alloy, they created a product that integrates efficient heat dissipation, robust protection, and strong anti-interference capabilities. This ensures reliable performance for ultra-long-range navigation in harsh environments.

The ELRS-915M-TX high-frequency head is designed to receive only Crossfire Serial Data Protocol (CRSF) signals by default. The remote control's high-frequency interface must support CRSF signal output. Using the OpenTX remote control system as an example, this guide demonstrates how to configure the remote to output CRSF signals and control the ELRS high-frequency head with a LUA script.

In the OpenTX system, select MODELSELECTION to access the MODELSETUP interface. Here, disable Internal RF (set to OFF), enable External RF, and set the output mode to CRSF, as shown in the figure below.

Connect the ELRS-915M-TX high-frequency head correctly and configure the remote control as the CRSF output for the External RF head as described above.

To adjust the power, refresh rate, and frequency of the ELRS high-frequency head, you need to use the OpenTX system's LUA script, as shown below.

• Copy the official LUA script ELRS.lua to the remote control's SD card, located in the Scripts/Tools folder.
• On the OpenTX system, press and hold either the SYS button (as found on RadioMaster T8 remote controls) or the MENU button (as used in Frsky Taranis devices).
• Using the X9D remote control or similar devices, access the SD-HC CARD interface. In this interface, select the ELRS.lua script and execute it.
• If the LUA script runs successfully, the interface will appear as shown below. (Default factory setting: 5W)

• Using LUA scripts, you can configure parameters such as Rate (refresh rate), Ratio (feedback packet rate), and Power (output power). All LUA script functions are detailed in Table 1 below.

Note: The official LUA script ELRS.lua can be downloaded from the ELRS support website (URLs are provided in the information section).

The ELRS high-frequency head uses the ExpressLRSV3.5.0 official protocol in its factory firmware and has no binding phrase configured. Therefore, the receiving end must also be V3.0.0 to V3.5.0 and has no binding phrase set.

The frequency steps are as follows

1. Step1: After the receiver is powered on, press the receiver button for a long time. The LED on the receiver will enter the double flash state, indicating that the receiver has entered the frequency matching mode
2. Step2: Install the antenna on the high-frequency head, insert the remote control, and insert the external XT30 port battery (optional). Enter the Express LRS configuration interface, scroll down to find the Bind option, as shown in the figure below.

3. Step3: After pressing the Bind button, the receiver enters a slow flash state and then a normal light state for about 2 seconds, indicating that the frequency reception is successful

The ELRS high-frequency head supports power outputs of 0.5W,1W,2W,5W, and 10W.

The ELRS high-frequency hair transmitter power switching uses a LUA script. Select Power to switch directly between 0.5W,1W,2W,5W, and 10W. For details, see "LUA Script Control".
