50MHz-6GHz Fixed UAV Detection and Jamming Integrated System

1
MOQ
Negotiated
Price
50MHz-6GHz Fixed UAV Detection and Jamming Integrated System
Features Gallery Product Description Chat Now
Features
Specifications
Detection Frequency Band: 50MHz~6GHz
Detection Range: 360° Horizontally, Pitch Angle >±45°
Detection Time: Instantaneous
Automatic Calibration Direction: Angle Measurement Accuracy ≤3 (RMS); Single-station Positioning Distance ≤10km, Positioning Accuracy ≤100m
Countermeasure Distance: 300m–3000m
Response Time: <3s
Operating Temperature: -30℃ ~+60℃
Packaging Size: 600 × 600 × 700 Mm
Main Unit Weight: 15 Kg
Jamming Frequency Bands & Power: Jamming Frequency Bands And Power Can Be Customized According To Requirements.
Highlight:

Fixed Spectrum Drone Detector

,

Drone Detector 50MHz

,

3000m military drone jammer
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: QV-DJ500
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description

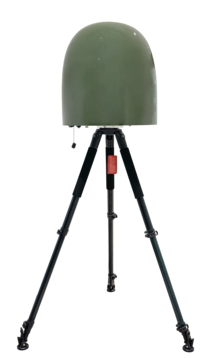

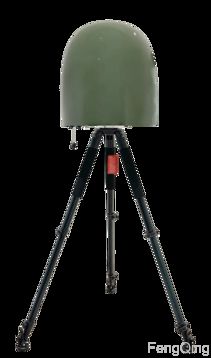

50MHz - 6GHz Fixed UAV Detection and Jamming Integrated System

This equipment is designed for the detection, identification, and disruption of unmanned aerial vehicles (UAVs). It integrates multiple technologies such as spectrum sensing and deep neural networks, utilizing radio frequency detection, feature signal extraction, and big data processing to detect, identify, directionally track, and ultimately neutralize drones. It has been widely deployed across government facilities, prisons, airports, military restricted zones, and major public events.

Main Parameters





 Detection  Parameters

 Detected Signal Types UAV data link signals, UAV remote control signals, and Wi-Fi-based UAV signals.
Detection Signal Information It can obtain information such as the GPS coordinates, flight altitude, speed, direction, model, serial number, takeoff point address, and distance between the drone and the device.
Detection Frequency Band 50MHz~6GHz
Detection Capability Detection distance radius ≥5km;
Detection range: Horizontal 360°, Pitch>45°
Detection Time ≤3s
Automatic Calibration No manual calibration required, North-finding accuracy ≤2°
Whitelist Function Capable of friend-or-foe identification




Countermeasure
Parameters

 Countermeasure Distance: 300m~3000m
Response Time ≤3s
Interference Frequency Bands and Power 8 custom interference bands
· 410-480MHz 50W
· 810-975MHz 50W
· 1130-1290MHZ 50W
· 1540-1640MHZ 50W
· 2395-2505MHz 50W
· 5135-5350MHz 50W
· 700-800MHz 50W
· 5730-5865MHz 50W
Jamming frequency bands and power can be customized according to requirements.



Structural Parameters

 Host Size 500*500mm
Main unit weight 15KG
Maximum power consumption 50W (in detection mode)
800W (in frequency band countermeasure mode)
Operating Temperature -30℃~+60℃
Packaging size 600*600*700mm (L * W * H)
