Drone Jamming Backpack-type Equipment (Battery Replaceable) - 8 Bands

1
MOQ
Negotiated
Price
Drone Jamming Backpack-type Equipment  (Battery Replaceable) - 8 Bands
Features Gallery Product Description Chat Now
Features
Specifications
Overall Dimensions (L×W×H): 430*224*650mm
Backpack Weight: 19kg
Battery Life: 40-60min
Set Weight: 25kg
Charge Mode: 29.4V Charging Adapter
Battery: Replaceable
Highlight:

drone jamming backpack equipment

,

replaceable battery anti drone module

,

8 bands drone jamming system

Basic Infomation
Place of Origin: CHINA
Brand Name: Fengqing &Quovin
Certification: ISO
Model Number: QV-TJ8D
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description

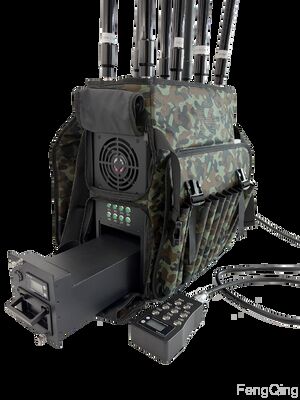

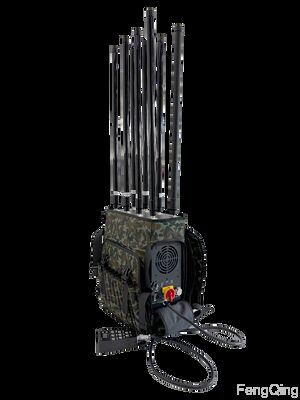

Drone Jamming Backpack-type Equipment (Battery Replaceable) - 8 Bands
Product Introduction

This product is mainly used for drone countermeasures, driving and forced landing of drones within the range of vision. This device can be set according to customer requirements (frequency band power color appearance) using backpack, can be carried for a long time, built-in battery, unlimited use more convenient, to meet a variety of use needs especially suitable for application: Large venues, infantry units, military security forces, SWAT teams, bomb squads, anti-terrorism units, anti-narcotics units, riot squads, EOD squads, checkpoints, hostage negotiations and border control.

Product features
  1. Multi-channel countermeasures.
  2. The design of slow start circuit can avoid the ignition phenomenon caused by mechanical switch, high integration and stable operation.
  3. Supporting external omnidirectional antenna and hand-held directional antenna mode to meet a variety of needs.
  4. Knapsack design, flexible application, especially suitable for emergency, transition, temporary control and other use needs.
  5. Built-in pull-out replaceable rechargeable battery; can be used for 40-60 minutes on a full charge.
  6. Box selection of military instrument standard chassis, anti-fall and compression, strong and durable.
  7. Power supply mode: powered by built-in battery, power supply (DC24V); The built-in efficient cooling fan and heat sink are combined to ensure the overall stable working performance and long service life.
  8. Multiple adjustment, each segment can individually enable or disable a different segment. The omnidirectional glass fiber reinforced plastic high optimization antenna, good counter distance, can also choose a variety of antennas, according to the user's geographical environment flexible planning shielding range.
Main parameters
                                                    Equipment parameters




    Counter parameter

Counter frequency band 1 433MHz,100W/50+1dbm
Counter frequency band 2 500MHz,100W/50+1dbm
Counter frequency band 3 900MHz,100W/50+1dbm
Counter frequency band 4 1200MHz,100W/50+1dbm
Counter frequency band 5 1500MHz,100W/50+1dbm
Counter frequency band 6 2400MHz,100W/50+1dbm
Counter frequency band 7 5200MHz,100W/50+1dbm
Counter frequency band 8 5800MHz,100W/50+1dbm
Frequency band and power can be customized according to requirements





  Structural parameter

Backpack size 430*224*650mm
Backpack weight 19kg
Set weight 25kg
Battery size 310*140*80mm
Battery weight 6kg
Battery capacity 50Ah
Battery life 40-60min
Charge mode 29.4V charging adapter
