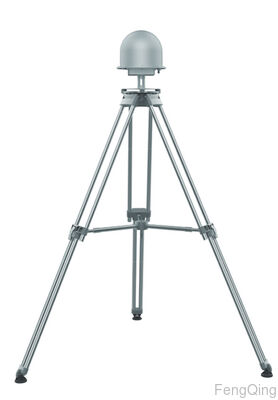

300MHz-6GHz Fixed FPV Detection and Jammer System

1
MOQ
Negotiated
Price
300MHz-6GHz Fixed FPV Detection and Jammer System
Features Gallery Product Description Chat Now
Features
Specifications
Detection Frequency Band: 300MHz 6GHz
Jamming Frequency Band: 300MHz 6GHz
Detection Distance: ≥2km (Equipment And Drone Have Relative Line Of Sight)
Jamming Distance: ≥800m（Dry Ratio 2.5:1, Equipment And Pilot Have Relative Line Of Sight)
Ambient Temperature: -40℃~55℃±2℃
Weight: ≤4kg
Size: ≤260*260*310mm
Highlight:

6GHz Fixed FPV Detection Jammer System

,

300MHz-6GHz FPV Detection Jammer System
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: QV-560A
Payment & Shipping Terms
Packaging Details: Packaging with anti-collision foam
Delivery Time: In 5 work day
Payment Terms: T/T,L/C
Supply Ability: 80,000pcs/month
Product Description

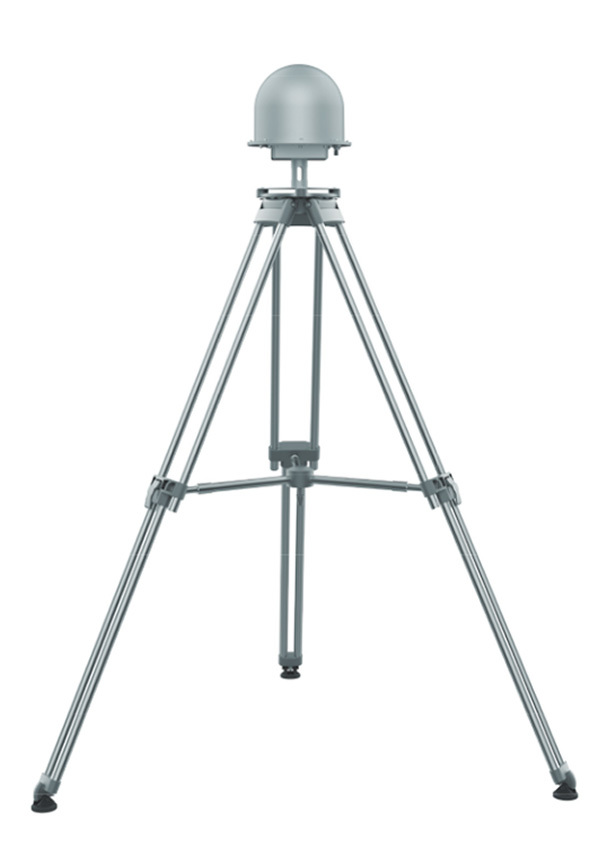

300MHz-6GHz Fixed FPV Detection and Jammer System
Product Introduction

QV-560A is a detection and jamming device for FPV drone defense. It quickly detects/identifies via scanning FPV image transmission signals, performs precise jamming to disable normal image/data transmission, controlling or stopping the drone. It has high sensitivity, low false alarm rate, high jamming efficiency, low power consumption, suitable for fixed, vehicle-mounted, portable and airborne scenarios.

Main Parameters
Category Specifications
Detection frequency band 300MHz - 6GHz
Jamming Frequency Band 300MHz - 6GHz
Detection Distance ≥ 2 km (Equipment and drone have relative line of sight)
Jamming Distance ≥ 800 m (Dry ratio 2.5:1, equipment and pilot have relative line of sight)
Detection Response Time ≤ 2 s
Ambient Temperature -40℃ ~ 55℃ ± 2℃
Power Consumption ≥ 15 W
Weight ≤ 4 kg
Size ≤ 260 mm * 260 mm * 310 mm
Protection Class IP65
