| Brand Name: | FengQing |
| Model Number: | QVPA0062-00570W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,00pcs/month |

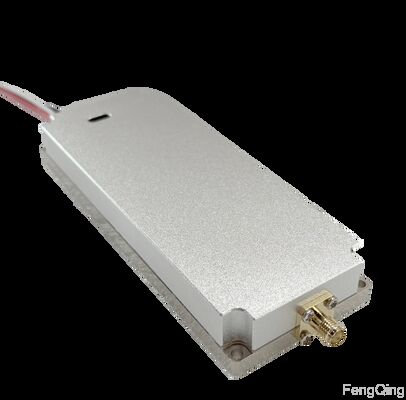

50W-70W EMC Anti-Drone Power Amplifier freguency coverage from 100-6200MHz Plug-in structure, easy to maintain and replace , jammer drone module Compact Power Amplifier Module for 5G Base Stations
This compact power amplifier module is engineered to meet the critical demands of modern 5G infrastructure. It delivers robust output power and exceptional linearity to support high-speed data transmission and complex multi-carrier signals, all within a significantly reduced form factor. This miniaturization is pivotal for the dense deployment of next-generation base stations and small cells, enabling seamless integration into space-constrained environments without compromising on signal integrity or coverage.
By leveraging advanced semiconductor technologies like GaN (Gallium Nitride), the module achieves high efficiency and excellent thermal performance, ensuring reliable operation under demanding conditions. Its integrated design simplifies the radio unit architecture, accelerating time-to-market for OEMs while reducing overall system weight and energy consumption. This module represents a key enabling technology for building more scalable, efficient, and powerful 5G networks.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥50mW-70W | 100-200MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 2 | ≥50mW-70W | 200-300MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 3 | ≥50mW-70W | 200-380MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 120*50*18.8 |
| 4 | ≥50mW-70W | 100-200MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 5 | ≥50mW-70W | 200-300MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 6 | ≥50mW-70W | 200-380MHz(With Circulator) | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 190*75*30.0 |
| 7 | ≥50mW-70W | 300-400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 8 | ≥50mW-70W | 300-500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 9 | ≥50mW-70W | 400-500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 10 | ≥50mW-70W | 400-700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 11 | ≥50mW-70W | 500-600MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 12 | ≥50mW-70W | 600-700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 13 | ≥50mW-70W | 700-800MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 14 | ≥50mW-70W | 700-1000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 15 | ≥50mW-70W | 800-900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 16 | ≥50mW-70W | 900-1000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 17 | ≥50mW-70W | 1000-1100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 18 | ≥50mW-70W | 1050-1340MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 19 | ≥50mW-70W | 1300-1600MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 20 | ≥50mW-70W | 1550-1620MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 21 | ≥50mW-70W | 1600-1900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 22 | ≥50mW-70W | 1800-2000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 23 | ≥50mW-70W | 2000-2100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 24 | ≥50mW-70W | 2100-2400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 25 | ≥50mW-70W | 2300-2550MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 26 | ≥50mW-70W | 2400-2700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 27 | ≥50mW-70W | 2700-2900MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 28 | ≥50mW-70W | 2700-3100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 29 | ≥50mW-70W | 3100-3400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 30 | ≥50mW-70W | 3300-3500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 31 | ≥50mW-70W | 3400-3700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 32 | ≥50mW-70W | 3700-4000MHz | ≥17dBm-48.5dBm | ≤0.1dB | 50%-65% | 130*50*18.8 |
| 33 | ≥50mW-70W | 3900-4100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 34 | ≥50mW-70W | 4000-4400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 35 | ≥50mW-70W | 4300-4500MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 130*50*18.8 |
| 36 | ≥50mW-70W | 4400-4800MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 37 | ≥50mW-70W | 4800-5100MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 38 | ≥50mW-70W | 5100-5400MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 39 | ≥50mW-70W | 5150-5350MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 40 | ≥50mW-70W | 5400-5700MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 41 | ≥50mW-70W | 5700-5950MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
| 42 | ≥50mW-70W | 5950-6200MHz | ≥17dBm-48.5dBm | ≤0.1dB | 43%-50% | 120*50*18.0 |
Plastic-packaged GaN HEMT power amplifier series catalog
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
Ceramic-packaged GaN HEMT power amplifier series catalog
| Output Power / W | Model | Output Power/ MHz | Size /(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6200 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 170*85*22.8 | |||
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
