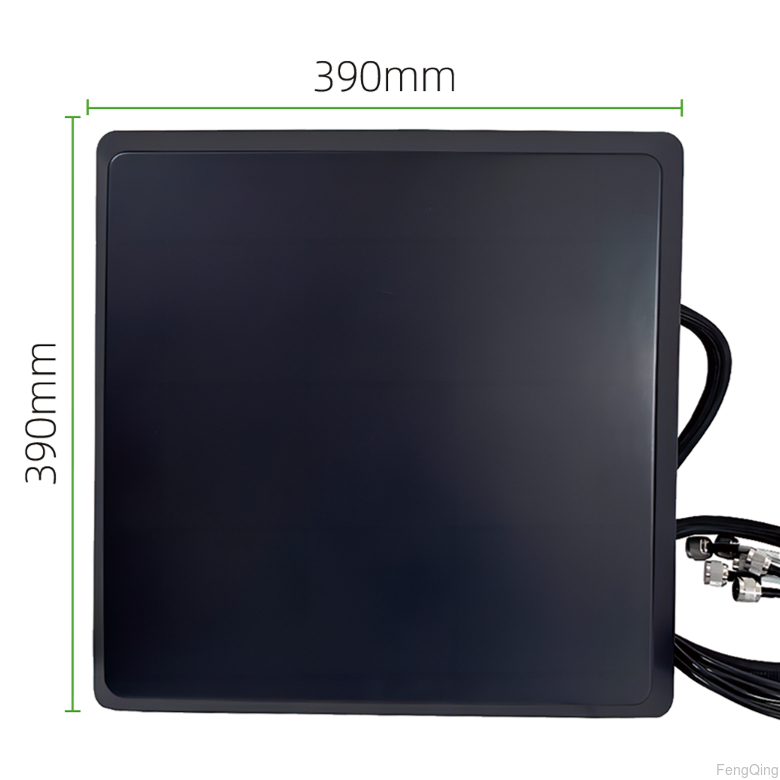

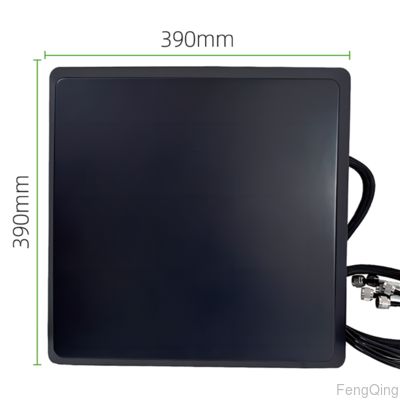

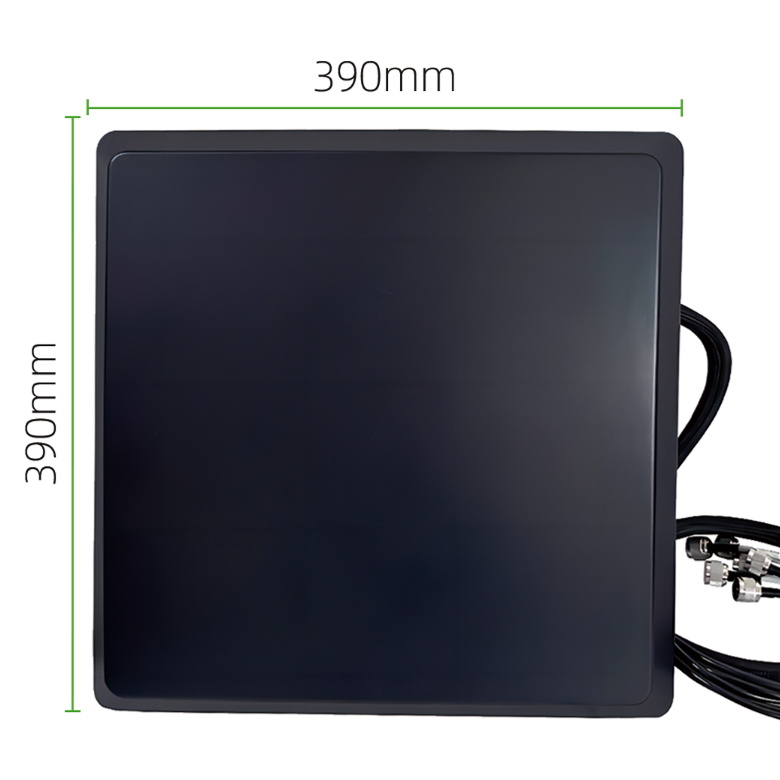

Jammer Antenna Outdoor Handheld Directional Panel Antenna

Name: Jammer Antenna Outdoor Handheld Directional Panel Antenna
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: FQ2
Availability: InStock

Brand Name:	FengQing
Model Number:	FQ2
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Type:

Outdoor Handheld Directional Panel Antenna (Dedicated For Anti - Drone)

Shell Material:

ABS Material (Sandblasted Oxidized Black Frosted Process)

Protection Level:

IP65 Waterproof

Handheld Design:

The Back Of The Antenna Supports Handheld Use

Radio Frequency Cable:

Low - Loss Radio Frequency Connecting Cable

Connector Adaptation Range:

Connector Adaptation Range Supports 0 - 6G Antenna Connectors

Appearance Color:

Two Colors (black And White) Available, Silk - Screen Customization Supported

Packaging Details:

Box Meets Your Requirements

Highlight:

outdoor jammer antenna

handheld directional antenna

panel jammer antenna

Product Description

Jammer Antenna Outdoor Handheld Directional Panel Antenna

Product Introduction

The outdoor handheld directional panel antenna is a dedicated anti-drone device designed for signal interference and control of drones in outdoor scenarios. Engineered for stability in complex environments including wilderness and remote regions, this product integrates multiple frequency bands to handle various device situations. Customizable in appearance color, material, radio frequency cable, frequency band, antenna gain, size, and connector, it offers a flexible solution for outdoor mobile anti-drone operations.

Product Features

Superior Outdoor Adaptability: Features a sandblasted oxidized black frosted ABS shell for durability and IP65 waterproof rating, ensuring reliable operation in harsh weather conditions including rain and sand.
High Flexibility and Customization: Supports multi-dimensional customization including appearance colors (black/white), silk-screen printing, frequency band integration, antenna gain adjustment, and compatibility with various connectors (0-6G range).
Portable and Ergonomic Design: Lightweight construction (e.g., 305×305×25MM models) with ergonomic handheld design for comfortable operation during mobile missions.
Precision Countermeasure Capability: Targets common drone communication/navigation bands with directional interference (front-to-back ratio ≥23), low standing wave ratio (≤2.0), and adjustable gain (5-17DBI) for effective drone control.

Product Parameters

Product Model	Antenna Frequency Band	Antenna Gain	Polarization Mode	Standing Wave Ratio	Front-to-Back Ratio	Antenna Size	Connector Type
FQ2-9358-516D65AHE7E (3-port)	1560-1620MHZ, 2400-2500MHZ, 5725-5850MHZ	8±1DBI, 12±1DBI, 12±1DBI	3 * Vertical Polarization	≤2.0	≥20, ≥23	305×305×25MM	3*N-FEMALE
FQ2-9358-516D65AHE7E (4-port)	915-935MHZ, 1560-1620MHZ, 2400-2500MHZ, 5725-5850MHZ	5±1DBI, 8±1DBI, 12±1DBI, 14±1DBI	4 * Vertical Polarization	≤2.0, ≤1.8, ≤2.0, ≤2.0	≥15, ≥20, ≥23	305×305×25MM	4*N-J
FQ2-9358-514D65AHE6E (6-port)	900M, 1.2G, 1.5G, 2.4G, 5.8G	5±1DBI, 8±1DBI, 12±1DBI, 14±1DBI	2 Vertical, 2 Vertical + Horizontal	≤1.8, ≤2.0	≥15, ≥20, ≥23	390×390×50MM	6*N-J
FQ2-9358-516D65AHE6E (6-port)	915-935MHZ, 1160-1280MHZ, 1560-1620MHZ, 2400-2500MHZ, 5150-5300MHZ, 5725-5850MHZ	5±1DBI, 8±1DBI, 12±1DBI, 14±1DBI	5 Vertical, 1 Horizontal	≤2.0, ≤1.8, ≤2.0, ≤2.0	≥15, ≥20, ≥23	305×305×25MM	6*N-J
FQ2-9358-516D65AHE7E (7-port)	900M, 1.2G, 1.5G, 2.4G, 5.2G, 5.8G	5±1DBI, 8±1DBI, 14±1DBI, 16±1DBI	3 Vertical, 2 Vertical + Horizontal	≤1.8	≥15, ≥20, ≥23	390×390×50MM	7*N-J
FQ2-9358-516D65AHE7E (8-port)	433M, 900M, 1.2G, 1.5G, 2.4G, 5.2G, 5.8G	5±1DBI, 8±1DBI, 14±1DBI, 16±1DBI	6 Vertical, 1 Vertical + Horizontal	≤1.8	≥15, ≥20, ≥23	390×390×50MM	8*N-J

Shenzhen Fengqing Instrument Co., Ltd.
Crafted in China, Quality Forges Low-Altitude Security.

Our customer-first philosophy ensures professional support throughout your product lifecycle:

Pre-sales: Customized solutions tailored to your requirements and budget
In-sales: Comprehensive technical support for installation, debugging, and training
After-sales: Rapid-response system including remote support, maintenance, and upgrades
