PTZ Spiral Antenna For UAV Countermeasure PTZ Equipment

1
MOQ
Negotiated
Price
PTZ Spiral Antenna For UAV Countermeasure PTZ Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Maximum Power And Coverage Capacity: Supports 100W High Power, Which Can Effectively Jam Long-distance And High-power UAVs, Covering The Core Frequency Bands Of 1.5G/2.4G/5.8G
Environmental Adaptability And Durability: Equipped With Pure Copper Vibrators + Fiberglass Cover + Aluminum Flange Base, Resistant To Wind, Rain And Ultraviolet Rays, Suitable For Long-term Outdoor Fixed Deployment
Signal Stability And Anti-Interference Ability: Adopts Right-hand Circular Polarization Design, With VSWR ≤ 2.0 (≤ 1.8 For Some Models), Featuring Low Signal Attenuation And Little Interference In Complex Electromagnetic Environments
Equipment Compatibility: Uniformly Uses 0-6G/N-type Female Connector Interface, Compatible With Most Fixed Countermeasure PTZ Equipment, No Additional Modification Required
Core Application Scenario Matching: Specially Designed For Fixed Scenarios Such As Airports, Military Restricted Areas And Large Venues, Can Be Stably Installed On PTZ Brackets Without Frequent Movement
Key Performance Parameters (Gain/Lobe): Antenna Gain Of 12±1dBi, Horizontal/vertical Lobe Of 20-32°, Strong Signal Focusing And High Jamming Accuracy
Highlight:

PTZ spiral UAV antenna

,

jammer PTZ antenna

,

countermeasure PTZ spiral antenna
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: FQ-PTZ-SP
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description
PTZ Spiral Antenna For UAV Countermeasure PTZ Equipment

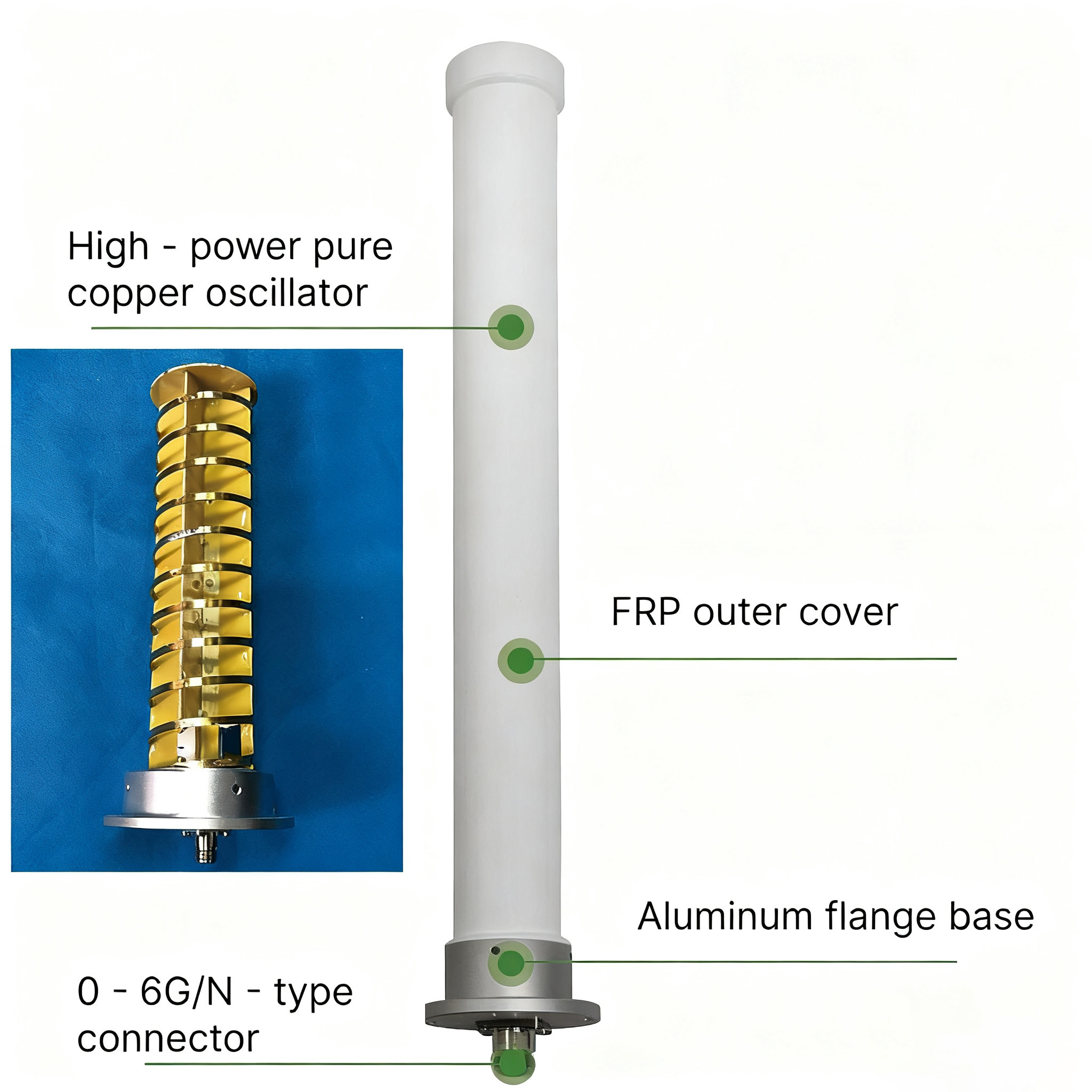

The PTZ spiral antenna is a high-power dedicated antenna developed specifically for UAV countermeasure PTZ equipment, optimized for fixed countermeasure PTZ scenarios. It features high-power pure copper vibrators in a spiral structure, combined with a fiberglass cover and aluminum flange base for stable operation in complex environments.
Key Capabilities
Accurately covers core UAV jamming frequency bands (1.5G/2.4G/5.8G) to disrupt communication, navigation, and image transmission links between UAVs and control terminals. Supports maximum power of 100W with 0-6G/N-type connectors, compatible with most fixed countermeasure PTZ equipment for long-term deployment in critical areas.
Product Features
  • High-Power Performance: 100W maximum power output for long-distance, high-power UAV targets, exceeding standard countermeasure gun capabilities.
  • Robust Construction: Pure copper vibrators enhance signal transmission, fiberglass cover resists environmental factors, and aluminum flange base ensures installation stability for long-term outdoor use.
  • Superior Signal Quality: Right-hand circular polarization reduces interference in complex electromagnetic environments with VSWR ≤2.0 (some models ≤1.8) for minimal signal attenuation.
  • Scenario-Specific Design: Optimized for fixed PTZ installations in locations requiring continuous countermeasures without frequent adjustments.
Product Applications
  • Airport Security: Protects flight paths by jamming unauthorized UAVs in 1.5G/2.4G/5.8G frequency bands.
  • Event Protection: Secures large venues against illegal aerial photography and intrusions.
  • Military Defense: Safeguards sensitive areas with 100W high-power output and anti-interference polarization.
  • Critical Infrastructure: Monitors and jams UAVs near nuclear plants, substations, and oil depots.
Detailed Product Parameters
Product Model Frequency Band Gain Polarization VSWR Horizontal Lobe Vertical Lobe Front-to-Back Ratio Size Connector Max Power
SC2-1516-12D32KCW1B 1559-1610MHz 12±1dBi Right-Hand Circular ≤2.0 32±5° 32±5° ≥20 Φ60*500mm N-FEMALE 100W
SC2-2425-12D32KCW1B 2400-2500MHz 12±1dBi Right-Hand Circular ≤1.8 20±5° 20±5° ≥20 Φ60*500mm N-FEMALE 100W
SC3-5759-12D32KCW1A 5700-5900MHz 12±1dBi Right-Hand Circular ≤1.8 20±5° 20±5° ≥20 240*400mm N-FEMALE 100W
