Jammer Antenna Fixed-Mount Directional Panel Antenna

Name: Jammer Antenna Fixed-Mount Directional Panel Antenna
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: FQ2
Availability: InStock

Brand Name:	FengQing
Model Number:	FQ2
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Type:

Fixed-Mount Directional Panel Antenna (Specialized For Drone Countermeasure)

Shell Material:

Reinforced ABS Material + Anti-Corrosion Coating

Protection Level:

IP65 (Waterproof And Dustproof)

Handheld Design:

The Back Of The Antenna Supports Handheld Use

Radio Frequency Cable:

Low - Loss Radio Frequency Connecting Cable

Connector Adaptation Range:

Connector Adaptation Range Supports 0 - 6G Antenna Connectors

Appearance Color:

Two Colors (black And White) Available, Silk - Screen Customization Supported

Installation Method:

Pole Installation (standard Fixed Clamps And Pole Brackets Included), Supporting Auxiliary Wall Mounting

Operating Temperature Range:

-30℃ ~ +60℃

Storage Temperature Range:

-40℃ ~ +85℃

Connector Compatibility:

Supports Mainstream RF Connectors Such As N-J And SMA-J (customizable)

Packaging Details:

Box Meets Your Requirements

Highlight:

fixed-mount jammer antenna

directional panel jammer antenna

jammer antenna with warranty

Product Description

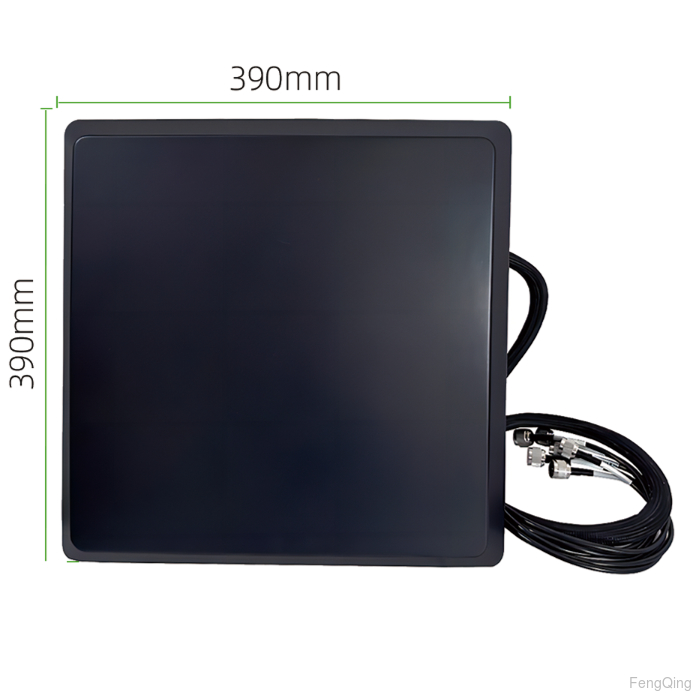

Jammer Antenna Fixed-Mount Directional Panel Antenna

Product Introduction

The fixed-mount directional panel antenna is designed for continuous prevention of unauthorized drone intrusion in critical locations including airports, military restricted areas, energy plants, government facilities, and large event venues. Featuring standard mounting hardware, this antenna provides stable installation on poles, walls, and monitoring masts while precisely targeting drone communication (2.4G/5.8G), navigation (1.5G), and special frequency bands (e.g., 800M/900M). With excellent performance characteristics including low standing wave ratio and high front-to-back ratio, it delivers reliable, all-weather signal interference for long-term security protection.

Product Features

Strong Fixed Adaptability: Includes customized mounting hardware for poles (50-100mm diameter) with reinforced ABS housing featuring anti-corrosion coating for durable outdoor performance with minimal maintenance.
High Control Efficiency: Standing wave ratio ≤1.5 (select models) ensures minimal signal loss, while front-to-back ratio ≥20 enables precise directional interference without affecting non-target areas.
Multi-Frequency Coverage: Supports 3-6 frequency combinations covering 830-960MHz (industrial drones), 1560-1620MHz (navigation), 2400-2500MHz/5725-5850MHz (consumer drones), adaptable to various protection scenarios.
Extreme Environment Resistance: IP65-rated waterproof/dustproof construction operates in -30℃ to +60℃ temperatures, maintaining 24/7 protection through heavy rain, sandstorms, and temperature extremes.

Product Specifications

Model	Frequency Band	Gain	Polarization	Standing Wave Ratio	Front-to-Back Ratio	Dimensions	Connector	Applications
FQ2-1559-14D32WL4E	1560-1620MHz, 2400-2500MHz, 5640-5950MHz	14±1dBi	Vertical (4 channels)	≤1.8	≥22	320×320×35mm	4×N-J	Airports, large venues
FQ2-9058-816D65AHW4B	830-950MHz, 1550-1620MHz, 2400-2500MHz, 5725-5850MHz	8-12dBi	Vertical (4 channels)	≤1.8	≥20	360×360×40mm	4×N-J	Factories, industrial parks
FQ2-8659-816D65AHD5B	860-960MHz, 1100-1300MHz, 1570-1630MHz, 2400-2500MHz, 5100-5900MHz	8-14dBi	Vertical + Horizontal (5 channels)	≤1.5	≥23	400×400×45mm	5×N-J	Military, energy facilities
FQ2-9358-514D65AHE6E (Standard)	880-960MHz, 1180-1280MHz, 1560-1620MHz, 2400-2500MHz, 5150-5350MHz, 5725-5850MHz	5-14dBi	Vertical (6 channels)	≤1.8	≥20	390×390×50mm	6×N-J	Parks, scenic areas
FQ2-9358-514D65AHE6E (Compact)	Same as standard model	5-13dBi	Vertical (6 channels)	≤2.0	≥18	260×260×40mm	6×N-J	Space-constrained installations
