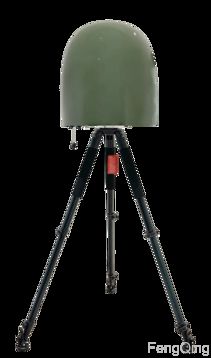

Fixed Spectrum Drone Detector 50MHz - 6GHz 300m - 3000m Range Military Drone Jammer

Brand Name:	FengQing
Model Number:	QV-DJ500
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Detected Signal Types:

UAV Data Transmission Signals UAV Remote Control Signals WiFi-based UAV Signals

Detection Frequency Band:

50MHz–6GHz

Angle Measurement Accuracy (AOA Mode):

<3° RMS

Positioning Accuracy (AOA Single Station):

<100m

Detection Distance Radius:

<10km

Detection Range:

360° Horizontally, Pitch Angle >±45°

Detection Time:

Instantaneous

Automatic Calibration Direction:

No Manual Calibration Required, North-pointing Accuracy <2°

Whitelist Function:

Realizes Friend-or-foe Identification

Countermeasure Distance:

300m–3000m

Response Time:

<3s

Host Size:

500 × 500 Mm

Maximum Power Consumption:

50 W (detection Mode) ；800 W (countermeasure Mode)

Operating Temperature:

-30℃ To +60℃

Packaging Size:

600 × 600 × 700 Mm

Main Unit Weight:

15 Kg

Jamming Band 1:

410–480MHz 25W

Jamming Band 2:

810–975MHz 25W

Jamming Band 3:

1130–1290MHz 10W

Jamming Band 4:

1540–1640MHz 10W

Jamming Band 5:

2395–2505MHz 50W

Jamming Band 6:

5135–5350MHz 50W

Jamming Band 7:

700–800MHz 25W

Jamming Band 8:

730–5865MHz 25W

Jamming Frequency Bands & Power:

Jamming Frequency Bands And Power Can Be Customized According To Requirements.

Packaging Details:

Box Meets Your Requirements

Highlight:

Fixed Spectrum Drone Detector

Drone Detector 50MHz

3000m military drone jammer

Product Description

Drone Detector/Fixed Spectrum Detector

This advanced drone detection and jamming system provides comprehensive protection against UAV threats. Integrating spectrum sensing and deep neural networks, it offers effective detection, identification, and tracking of low-altitude drones within a 5,000 meter radius.

Key Features

Design and Portability

Compact and lightweight integrated design combining detection and jamming functions
Highly portable with excellent operational flexibility

Detection Capability

Full-frequency passive detection (70MHz-6GHz) with 360° coverage
Intelligent identification with autonomous learning for drone signal characteristics
Accurate distinction between multiple remote controllers and industrial-grade frequency-hopping drones

Control Capability

Precise control with whitelist functionality for authorized drones
Directional jamming minimizes impact on other communications
High efficiency with low RF power consumption

Environmental Adaptability

Multi-antenna array design for complex urban electromagnetic environments
Suburban detection range up to 5,000 meters
Intelligent gain adjustment for different operational scenarios

Technical Specifications

Category	Item	Content
Detection Parameters	Detection Signal Types	UAV data transmission signals, UAV remote control signals, WiFi-based UAV signals
	Detection Frequency Band	50MHz - 6GHz
	Angle Measurement Accuracy (AOA Mode)	≤3° (RMS)
	Positioning Accuracy	AOA single station can locate, accuracy ≤100m
	Detection Distance Radius	≤10km
	Detection Range	Horizontal 360°, Pitch ≥±45°
	Detection Time	≤3s
	Whitelist Function	Can realize friend-or-foe identification
Countermeasure Parameters	Countermeasure Distance	300m - 3000m
	Response Time	≤3s
	Interference Frequency Band 1	410 - 480MHz 25W
	Interference Frequency Band 2	810 - 975MHz 25W
	Interference Frequency Band 3	1130 - 1290MHz 10W
	Interference Frequency Band 4	1540 - 1640MHz 10W
	Interference Frequency Band 5	2395 - 2505MHz 50W
	Interference Frequency Band 6	5135 - 5350MHz 50W
	Interference Frequency Band 7	700 - 800MHz 25W
	Interference Frequency Band 8	5730 - 5865MHz 25W
	Others	Interference frequency bands and power can be customized as required
Structural Parameters	Host Size	500*500mm
	Host Weight	15KG
	Maximum Power Consumption	50W in detection mode; 800W in frequency band countermeasure mode
	Operating Temperature	﹣30℃ - 60℃
	Packing Size	600600700mm (L * W * H)
