6 Band Drone Jammer Long Distance Portable Anti Drone Gun Counter UAV System 433MHz

Brand Name:	FengQing
Model Number:	FQ-G006
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Operating Frequency Bands & Power 1:

433MHz 430 – 440 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 2:

900MHz 860 – 930 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 3:

1.2GHz 1160 – 1220 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 4:

1.5 GHz 1550 – 1620 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 5:

2.4 GHz 2400 – 2500 MHz 40 ± 1 DBm

Operating Frequency Bands & Power 6:

5.8 GHz 5720 – 5850 MHz 40 ± 1 DBm

Effective Jamming Range:

800 - 1500 M (Typical. Varies With Drone Model And Environment)

Operating Voltage:

25.9 V

Battery Energy:

≥ 125 Wh (5,000 MAh @ 25.9V)

Net Weight:

~4 Kg

Gross Weight:

~9.2 Kg

Unit Dimensions (L×W×H):

700 × 300 × 150 Mm

Packaging Dimensions (L×W×H):

1000 × 500 × 250 Mm

Packaging Details:

Box Meets Your Requirements

Highlight:

6 Band Drone Jammer

Drone Jammer Long Distance

Anti Drone Gun 433MHz

Product Description

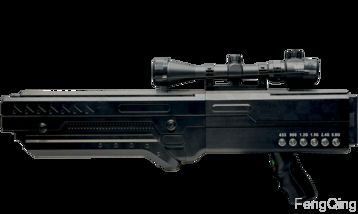

6-Band Long Distance Portable Drone Jammer Anti Drone Gun Portable Counter-UAV System

The Portable Countermeasure Gun neutralizes UAVs by jamming their remote control, navigation, and video transmission systems. Its effects include repelling drones, forcing them to land, or triggering their automatic return-to-home function. The device employs electronic countermeasure (ECM) technology, emitting targeted electromagnetic waves in specific frequency bands to quickly suppress target drones and sever their communication and navigation links with the operator from a long distance.

This portable counter-UAV system has a wide range of applications. For instance, it can be deployed at large-scale public events such as sporting events and concerts to prevent drones from disrupting public order or conducting unauthorized surveillance. Furthermore, military and police units utilize these devices to counter threats posed by hostile drone reconnaissance or attacks. Integrating this counter-UAV technology with other security systems enhances overall defensive capabilities.

Product Features

Superior Jamming Performance

Utilizing ultra-high-frequency broadband seamless jamming technology and precise power output control via individual channel switches, the system delivers high effective radiated power (ERP) per channel for extended range.
Its advanced band-segmentation function targets only the control and video transmission frequencies of drones, leaving other bands unaffected.
This ensures powerful countermeasures against UAVs while maintaining excellent electromagnetic compatibility (EMC) with the surrounding environment.

User-Friendly Operation

Featuring a built-in, hot-swappable battery, the system provides over 30 minutes of operational time, meeting the demands of short-term, flexible deployment.
It requires no complex operational training and can be activated instantly in response to sudden threats, making it adaptable for emergency countermeasure scenarios.

Enhanced Stability and Reliability

Constructed with imported components and a soft-start circuit design, the system eliminates the risk of arcing associated with mechanical switches.
Its high level of integration ensures stable operation.
Two external high-performance fans significantly improve thermal management, further enhancing the reliability of the device during prolonged operation.

Technical Specifications

Operating Frequency Bands

Output Terminal	Operating Frequency	Power
433MHz	433MHz	40±1dBm
900MHz	860 - 930MHz	40±1dBm
1.2G	1160 - 1220MHz	40±1dBm
1.5G	1550 - 1620MHz	44±1dBm
2.4G	2400 - 2500MHz	44±1dBm
5.8G	5720 - 5850MHz	44±1dBm

Structural Parameters

Parameter	Details
Interference distance	800 - 1500M (specific distance depends on the model of the UAV, the distance between the drone and the pilot)
Power supply	25.9V
Battery capacity	5000mAh
Host weight	approximately 4Kg
Weight with packaging	approximately 9.2Kg
Size	700300150mm
Outer packaging size	1000mm500mm250mm
