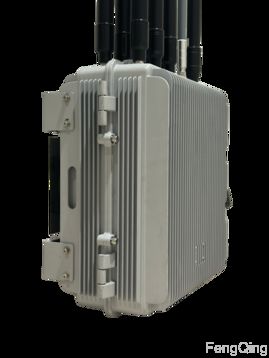

5km Portable Drone Jammer 360 Degree Coverage Jamming Device Cabinet Type

Brand Name:	FengQing
Model Number:	Q300
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Simultaneous Targets:

≥35 UAVs

Defense Radius:

1–3 Km

Success Rate:

99%

Frequency Range:

50MHz–5.8GHz

Peak Power Consumption:

<1,500W (Band Jamming Mode) Added Comma In 1,500W

Note:

All Bands And Power Levels Are Customizable.

Detection Distance:

≥5km (environment-dependent); ≥2km For Pre-loaded UAV Models In Open Areas

Physical Specifications:

Chassis：410 × 520 × 240 Mm 28 Kg； Antenna：800 Mm (length) 3.5 Kg

Real-time Bandwidth:

160MHz

Max Power Consumption:

Detection: ≤70 W ；Jamming: <1,500 W

Ranging Accuracy:

≤10% Of Range (R)

Operating Temperature:

-30°C To +60°C

Horizontal Coverage:

0–360°

Power Supply:

AC 220V (fixed/UPS)

Minimum Altitude:

Protection Level:

IP65

Azimuth Accuracy:

<15°

OS:

Linux

Supported UAV Models:

>500 (includes DJI Avata 2, Autel EVO; Expandable)

Logging:

Records: Angle, Alarm Time, Frequency Data

Sensitivity:

Better Than -95dBm (25kHz Bandwidth)

Playback:

UAV Intrusion Event Replay

Detection Rate:

99% Success Rate

Reporting:

Generates Statistical UAV Intrusion Reports

Positioning Refresh:

3–10s

Display:

Optional Tablet/laptop Interface

Positioning:

GPS-enabled With Map Marking

Operating Mode:

Passive Monitoring (no EM Radiation), Compatible With EM-sensitive Areas; Uses Spectrum + Protocol Analysis

Effective Range:

300m–3,000m

Jamming Modes:

Repel / Force Landing

Response Time:

≤1 Second

Packaging Details:

Box Meets Your Requirements

Highlight:

5km Drone Jammer

Portable Drone Jammer 360 degree

jamming device Cabinet Type

Product Description

Portable Drone Jammer with 5km Detection Range & 360° Coverage / Cabinet - type /Portable Drone Detection and Jamming All in One Equipment 24/7 operation

Portable Drone Detection and Countermeasure Devices

Cabinet-type portable drone detection and jamming all-in-one equipment combining detection and countermeasure capabilities in a single unit.24/7 operation

Product Overview

The chassis-mounted drone detection and jamming device offers 360° detection capabilities across an ultra-wideband spectrum of 50MHz-6GHz. This advanced system can autonomously learn to identify unknown drones while simultaneously handling multiple targets, operating unmanned around the clock. Ideal for securing sensitive areas against unauthorized drone activity.

Core Features

Intelligent Identification: Autonomous learning to classify unknown UAVs with whitelist function for friendly drone authorization
Multi-Target Engagement: Simultaneously detects and counters multiple UAV threats with specialized frequency-hopping signal analysis
24/7 Autonomous Operation: Unattended operation with real-time monitoring of UAV serial numbers, models, and GPS coordinates
Advanced Countermeasure Technology: Omnidirectional jamming with 360° coverage optimized for complex electromagnetic environments

Technical Specifications

Detection Parameters
Detection Frequency Range	50MHz - 5.8G
Detection Distance	≥5km (depending on working conditions); ≥2km for unobstructed open areas
Real-time Processing Bandwidth	160MHz
Ranging Accuracy	≤10%R
Horizontal Range	0 - 360°
Minimum Detection Height	0m
Detection Elevation Angle	Less than 15°
Types of Detectable Models	500+ (including DJI Avata 2, Autel EVO, etc.)
Detection Success Rate	99%
Position Update Time	≤3-10s
Countermeasure Parameters
Countermeasure Distance	300m - 3000m
Interference Mode	Drive away or force down
Interception Response Time	≤1s
Interception Quantity	≥35
Defense Radius	1-3km
Defense Success Rate	99%
Equipment Parameters
Host Size	Chassis 410520240mm; Antenna 800mm
Host Weight	Chassis: 28KG; Antenna: 3.5KG
Operating Temperature	﹣30℃ - 60℃
Power Supply	AC220V (fixed power supply or UPS compatible)
Protection Class	IP65

Deployment Scenarios

High-Security Zones: Government facilities, border defense, military restricted areas
Critical Infrastructure: Power plants, petrochemical parks, airports

Customized services available to meet specific operational requirements.
