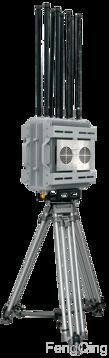

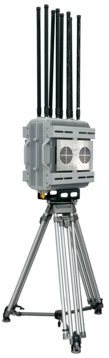

Fixed Omnidirectional Drone Jammer 2000M Long Range Uav Detection Jamming System

Brand Name:	FengQing
Model Number:	FQ400
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Maximum Countermeasure Range:

≤ 2 Km

Response Time:

≤ 3 S

Band 1: Frequency / Power:

430 – 440 MHz / 50W/47±1dbm

Band 2: Frequency / Power:

855 – 935 MHz / 50W/47±1dbm

Band 3: Frequency / Power:

1150 – 1300 MHz / 50W/47±1dbm

Band 4: Frequency / Power:

1370 – 1450 MHz / 50W/47±1dbm

Band 5: Frequency / Power:

1550 – 1636 MHz / 50W/47±1dbm

Band 6: Frequency / Power:

2400 – 2500 MHz / 50W/47±1dbm

Band 7: Frequency / Power:

5135 – 5350 MHz / 50W/47±1dbm

Band 8: Frequency / Power:

5712 – 5920 MHz / 50W/47±1dbm

Maximum Transmit Power Per Channel:

≤50W

Countermeasure Coverage:

360° Omnidirectional Countermeasure

Communication Interface:

RJ45 Ethernet, RS232/485 Serial Port

Power Supply:

AC 220V

Operating Temperature:

-45 °C To +55 °C

Protection Rating:

IP65 (Dust-tight And Protected Against Water Jets)

Dimensions (L × W × H):

1120.34 Mm × 304.76 Mm × 461.06 Mm (including Antenna)

Weight:

32.84 Kg (including Antenna)

Packaging Details:

Box Meets Your Requirements

Highlight:

Fixed Omnidirectional Drone Jammer

Drone Jammer 2000M

Long Range Uav Detection Jamming System

Product Description

Fixed Omnidirectional Uav Long Range Detection and Jamming Integrated System 2km Range 50W Power 360° Coverage

Fixed Omnidirectional UAV Long Range Detection and Jamming Integrated System

Product Introduction

The Fixed UAV Omnidirectional Countermeasure Cabinet is designed to neutralize intruding drones. It employs radio countermeasure technology to effectively gain control of unauthorized UAVs within its operational range. The system provides low-altitude, three-dimensional protection for a radius of up to 2,000 meters, capable of jamming signals, forcing drones to land, or triggering their return-to-home function. This enables 24/7, unattended defense. (Frequency bands and power output are customizable.)

Product Features

Precise Frequency Jamming: Targets only drone-related frequencies with effective band-segmentation function, ensuring normal operation of other wireless devices.
Safe and Stable Operation: Soft-start circuit design prevents inrush current and sparking, with high integration for stable performance.
Controllable Countermeasure Range: Effective range can be precisely controlled by adjusting output power to meet operational needs.
Convenient Operation: Ready to use upon startup with no complicated configuration required.

Technical Specifications

Countermeasure Parameters
Countermeasure distance	≤2km
Response time	≤3s
Interference frequency bands	430-440MHz 50W/47±1dbm 855-935MHz 50W/47±1dbm 1150-1300MHz 50W/47±1dbm 1370-1450MHz 50W/47±1dbm 1550-1636MHz 50W/47±1dbm 2400-2500MHz 50W/47±1dbm 5135-5350MHz 50W/47±1dbm 5712-5920MHz 50W/47±1dbm Note: Jamming frequency bands and power can be customized
Countermeasure range	360° omnidirectional
Maximum transmit power per channel	≤50W
Communication interface	RJ45 network/serial port
Product power supply	AC 220V
Operating temperature	-45℃ to 55℃
Protection level	IP65
Weight	32.84kg (including antenna)
Size	1120.34304.74461.08mm (including antenna)
