UAV Jammer and Deception Box-type System Radius≥5 km
Features Gallery Product Description Chat Now
Features
Specifications
Response Time: < 10 S
Simultaneous Targets: > 10 UAVs
Frequency Tolerance: < ±2×10⁻⁶
Defense Radius: ≥ 5 Km
Input Power: AC 220 V / 50 Hz
Power Consumption: ≤ 20 W (with 2 W Transmit Power) ≤ 40 W (with 5 W Transmit Power) ≤ 60 W (with 20 W Transmit Power
Operating Temperature: -40 °C ~ +70 °C
Dimensions (W X D X H): 355 Mm × 351 Mm × 150 Mm
Weight: ≤ 11 Kg
Highlight:

gnss spoofing anti drone module

,

gnss spoofing anti drone equipment

,

ip65 anti drone module

Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: QV-D1000
Payment & Shipping Terms
Packaging Details: Box Meets Your Requirements
Delivery Time: In 5 work day
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Product Description

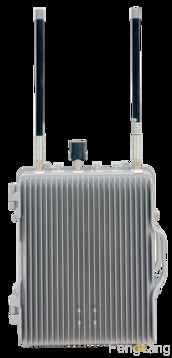

UAV Jammer and Deception Box-type System
Product Introduction

The equipment is capable of multi-target UAV spoofing, has minimal impact on the surrounding environment, and can effectively deceive UAV navigation systems. It supports networked deployment of multiple deception units for centralized management and control, enabling 24/7 automatic defense against UAV intrusions. With broad application scenarios, the system is suitable for critical sectors including power grids, petroleum and petrochemical facilities, government institutions, public security, and border defense operations.

Main Parameters
Category Specifications
Deceptive function Supports signal simulation and 4-frequency spoofing for four major navigation systems: GPS, BDS, GLONASS, Galileo. Supports customization & expansion for other systems/frequencies.
Response Time <10s
Simultaneous UAVs Reportable/Deceivable ≥10 units
Frequency Tolerance <±2×10⁻⁶
Defense Range Radius ≥5km
Protection Class IP65
Rated Power 2W-20W
Protection Level

-40℃ ~ +70℃

IP65 standard, rainproof

Size and weight Weight: <11KG;
Dimention: 355*351*150 (mm)
