| Brand Name: | FengQing |
| Model Number: | QVPA0060-70100W-GN |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 80,000pcs/month |

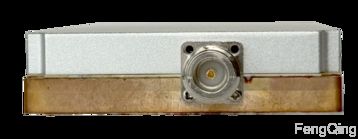

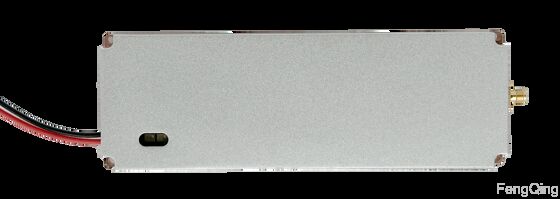

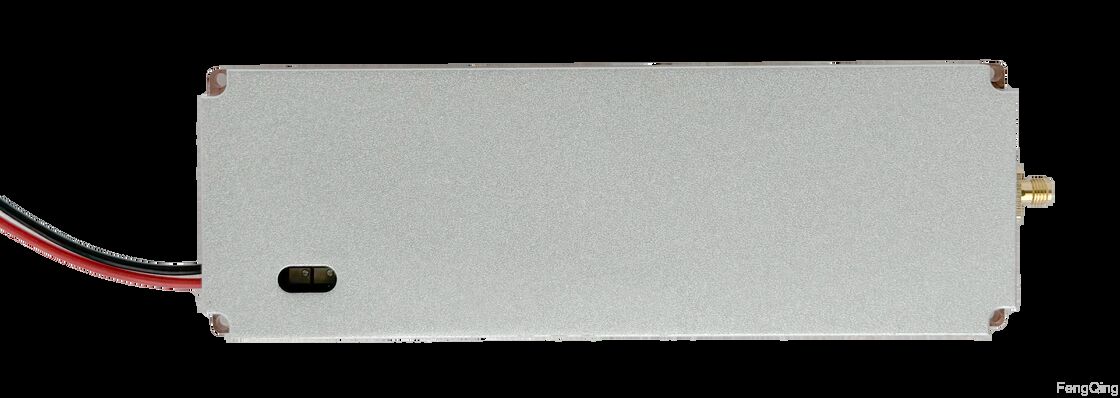

This high-power anti-drone module signal amplifier is a core enabling component of anti-drone systems. Focused on high-intensity jamming and signal amplification needs, it delivers exceptional power output capability and signal gain performance. Optimized for key frequency bands such as drone communication and navigation, it efficiently amplifies jamming signals to achieve long-distance, wide-range drone control coverage, effectively blocking the flight links of unauthorized drones. It provides robust technical support for scenarios like low-altitude security and critical area protection.
Adopting a modular architecture, the product features a compact and highly integrable design, enabling flexible adaptation to anti-drone systems of different specifications. While ensuring stable high-power output, it balances environmental adaptability and deployment convenience, seamlessly handling complex outdoor working conditions. It can be quickly put into use without complicated debugging, serving as a reliable core equipment to enhance the operational effectiveness of anti-drone systems.
(Strictly limited to legally authorized scope)
| Num | Output power/W | Frequency/MHz | Output power/dBm | Power flatness/dB | Efficiency/% | Size/mm |
|---|---|---|---|---|---|---|
| 1 | ≥70W-100W | 100-200MHz | ≥48.5dBm-49.2dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 2 | ≥70W-100W | 200-300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 3 | ≥70W-100W | 200-380MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 190*75*30.0 |
| 4 | ≥70W-100W | 400-700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 5 | ≥70W-100W | 600-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 6 | ≥70W-100W | 650-800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 7 | ≥70W-100W | 700-900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 8 | ≥70W-100W | 700-1000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 9 | ≥70W-100W | 900-1150MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 10 | ≥70W-100W | 800-1050MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 11 | ≥70W-100W | 1050-1300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 12 | ≥70W-100W | 1300-1500MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 13 | ≥70W-100W | 1340-1560MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 14 | ≥70W-100W | 1500-1700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 15 | ≥70W-100W | 1600-1800MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 16 | ≥70W-100W | 1700-1900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 17 | ≥70W-100W | 1800-2100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 18 | ≥70W-100W | 2100-2400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 19 | ≥70W-100W | 2300-2550MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 20 | ≥70W-100W | 2400-2700MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 130*50*18.8 |
| 21 | ≥70W-100W | 2700-2900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 22 | ≥70W-100W | 2900-3100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 23 | ≥70W-100W | 3000-3300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 24 | ≥70W-100W | 3300-3600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 25 | ≥70W-100W | 3700-3900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 26 | ≥70W-100W | 3900-4100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 27 | ≥70W-100W | 4100-4300MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 28 | ≥70W-100W | 4400-4600MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 29 | ≥70W-100W | 4700-4900MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 30 | ≥70W-100W | 4900-5100MHz | ≥48.5dBm-50dBm | ≤0.1dB | 50%-62% | 126*56*18.8 |
| 31 | ≥70W-100W | 5100-5400MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
| 32 | ≥70W-100W | 5700-6000MHz | ≥48.5dBm-50dBm | ≤0.1dB | 43%-50% | 180*60*18.8 |
| Output Power/W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0425-00550W-B | 400–2500 | 120*50*18.8 |
| ≥50mW–50W | QVPA0425-00550W-B2 | 400–2550 | 111*37*19.5 |
| Output Power / W | Model | Output Power/ MHz | Size/(mm) |
|---|---|---|---|
| ≥50mW–50W | QVPA0062-00550W-GN | 100–6200 | 111*37*19.5 |
| 112*38*19.5 | |||
| ≥50mW–70W | QVPA0062-00570W-GN | 100–6200 | 120*50*18.8 |
| 190*75*30 | |||
| 130*50*18.8 | |||
| ≥70W–100W | QVPA0060-70100W-GN | 100–6000 | 190*75*30 |
| 130*50*18.8 | |||
| 126*56*18.8 | |||
| 180*60*18.8 | |||
| ≥150W–200W | QVPA0059-150200W-GN | 400–5950 | 180*90*22.8 |
| 180*100*22.8 |
Q1: What frequency bands does this module support jamming?
A1: Our module boasts extensive frequency coverage from 100MHz to 6.2GHz, with customizable options available for specific regional requirements and mission scenarios.
Q2: What if I cannot find the frequency band I need?
A2: All frequency bands can be customized to meet your specific needs.
Q3: What is the module's output power?
A3: Available in multiple power levels (≥50mW to 200W), with ceramic or plastic packaging options to ensure stable performance in diverse environmental conditions.
Q4: How is it integrated?
A4: Features standardized interfaces for quick integration into fixed, vehicle-mounted, or portable platforms. Supports intelligent linkage with radar and optoelectronic sensors for comprehensive drone defense systems.
Q5: Does it support multi-module collaboration?
A5: Yes, supports parallel deployment of multiple modules for simultaneous multi-band coverage, significantly improving interference strength and range for large-area security deployments.
Q6: What are the typical application scenarios?
A6: Designed for high-security locations including airports, military bases, government facilities, nuclear plants, and large public event venues.
Q7: How reliable is the module?
A7: Features advanced ceramic packaging technology with excellent heat dissipation and environmental adaptability for reliable operation in harsh conditions.
Q8: Is it compliant with relevant regulations?
A8: Supports customizable frequency and power settings to meet specific regional legal requirements and compliance standards.
