Portable Counter Drone Equipment 1500W Cabinet Type UAV Countermeasure Devices

Brand Name:	FengQing
Model Number:	Q300
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Frequency Range:

50MHz–5.8GHz

Detection Distance:

≥5km (environment-dependent); ≥2km For Pre-loaded UAV Models In Open Areas

Real-time Bandwidth:

160MHz

Ranging Accuracy:

≤10% Of Range (R)

Horizontal Coverage:

0–360°

Minimum Altitude:

Azimuth Accuracy:

<15°

Supported UAV Models:

>500 (includes DJI Avata 2, Autel EVO; Expandable)

Sensitivity:

Better Than -95dBm (25kHz Bandwidth)

Detection Rate:

99% Success Rate

Positioning Refresh:

3–10s

Positioning:

GPS-enabled With Map Marking

Operating Mode:

Passive Monitoring (no EM Radiation), Compatible With EM-sensitive Areas; Uses Spectrum + Protocol Analysis

Effective Range:

300m–3,000m

Jamming Modes:

Repel / Force Landing

Response Time:

≤1 Second

Simultaneous Targets:

≥35 UAVs

Defense Radius:

1–3 Km

Success Rate:

99%

Peak Power Consumption:

<1,500W (Band Jamming Mode) Added Comma In 1,500W

Note:

All Bands And Power Levels Are Customizable.

Physical Specifications:

Chassis：410 × 520 × 240 Mm 28 Kg； Antenna：800 Mm (length) 3.5 Kg

Max Power Consumption:

Detection: ≤70 W ；Jamming: <1,500 W

Operating Temperature:

-30°C To +60°C

Power Supply:

AC 220V (fixed/UPS)

Protection Level:

IP65

OS:

Linux

Logging:

Records: Angle, Alarm Time, Frequency Data

Playback:

UAV Intrusion Event Replay

Reporting:

Generates Statistical UAV Intrusion Reports

Display:

Optional Tablet/laptop Interface

Packaging Details:

Box Meets Your Requirements

Highlight:

portable counter drone equipment

counter drone equipment 1500w

cabinet type uav countermeasure devices

Product Description

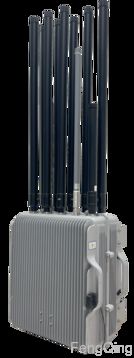

Portable Drone Detection and Countermeasure Devices / Cabinet-type / Portable Drone Detection and Jamming All-in-One Equipment

The QV-S500 chassis-mounted drone detection and jamming device combines drone detection and jamming capabilities, offering 360° detection across an ultra-wideband spectrum of 50MHz-6GHz. It autonomously learns to identify unknown drones, handles multiple targets simultaneously, and operates unmanned 24/7. With whitelist functionality and adaptation to complex electromagnetic environments, it provides omnidirectional countermeasures, excelling at identifying frequency-hopping drone signals. The device monitors drones within range, tracking serial numbers, models, and GPS coordinates (longitude, latitude, altitude). Ideal for low-altitude security in government facilities, border defense, military zones, power plants, petrochemical parks, and airports.

Core Features

Intelligent Identification: Autonomous learning to classify unknown UAVs with whitelist functionality for authorized drones
Multi-Target Engagement: Simultaneous detection and countering of multiple UAV threats with specialized frequency-hopping signal analysis
24/7 Autonomous Operation: Unattended operation with real-time monitoring of UAV serial numbers, models, and GPS coordinates
Advanced Countermeasure Technology: 360° omnidirectional jamming optimized for complex electromagnetic environments

Technical Specifications

Category	Item	Content
Detection Parameters	Detection Frequency Range	50MHz - 5.8G
	Detection Distance	≥5km (depending on conditions); ≥2km for known models in open areas
	Real-time Processing Bandwidth	160MHz
	Ranging Accuracy	≤10%R
	Horizontal Range	0-360°
	Minimum Detection Height	0m
	Detection Elevation Angle	Less than 15°
	Types of Detectable Models	500+ (including DJI Avata 2, Autel EVO, etc., expandable)
	Reconnaissance Sensitivity	Better than -95dBm (25kHz)
	Detection Success Rate	99%
	Position Update Time	≤3-10s
	Positioning Function	GPS positioning with map identification
	Monitoring Technology	Electrostatic silent monitoring (no radiation), spectrum + database protocol analysis
Countermeasure Parameters	Countermeasure Distance	300m-3000m
	Interference Mode	Drive away or force down
	Interception Response Time	≤1s
	Interception Quantity	≥35
	Defense Radius	1-3km
	Defense Success Rate	99%
	Maximum Countermeasure Power	Frequency band countermeasure < 1500W
	Interference Frequency Bands	8 customizable bands (830-930MHz, 1547-1628MHz, 2398-2510MHz, etc.)
	Customization	Frequency bands and power can be customized
Equipment Parameters	Host Size	Chassis 410×520×240mm; Antenna 800mm
	Host Weight	Chassis: 28KG; Antenna: 3.5KG
	Maximum Power Consumption	Detection ≤70W; Frequency band countermeasure < 1500W
	Operating Temperature	﹣30℃ - 60℃
	Power Supply	AC220V (fixed power supply or UPS compatible)
	Operating System	LINUX system
	Display Screen	Tablet or laptop size (optional)
	Protection Class	IP65
	Log Function	Intrusion logs with angle, time, frequency data, and playback capability
	Statistical Reports	UAV intrusion statistics available

Deployment Scenarios

High-Security Zones: Government facilities, border defense, military restricted areas
Critical Infrastructure: Power plants, petrochemical parks, airports

Customized services available to meet specific operational requirements.
