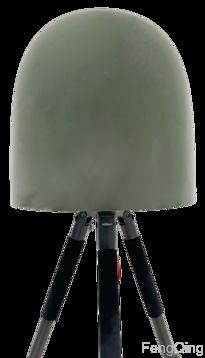

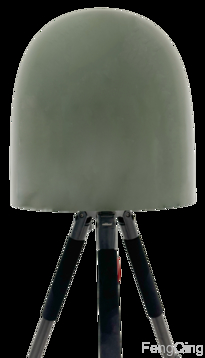

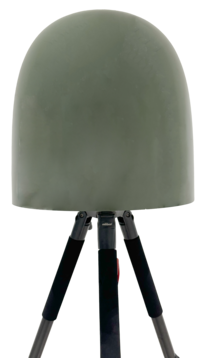

Fixed Drone Detector 300m - 3km Anti Drone Jammer

Brand Name:	FengQing
Model Number:	QV-DJ500
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Detected Signal Types:

UAV Data Transmission Signals UAV Remote Control Signals WiFi-based UAV Signals

Detection Frequency Band:

50MHz–6GHz

Angle Measurement Accuracy (AOA Mode):

<3° RMS

Positioning Accuracy (AOA Single Station):

<100m

Detection Distance Radius:

<10km

Detection Range:

360° Horizontally, Pitch Angle >±45°

Detection Time:

Instantaneous

Automatic Calibration Direction:

No Manual Calibration Required, North-pointing Accuracy <2°

Whitelist Function:

Realizes Friend-or-foe Identification

Countermeasure Distance:

300m–3000m

Response Time:

<3s

Host Size:

500 × 500 Mm

Maximum Power Consumption:

50 W (detection Mode) ；800 W (countermeasure Mode)

Operating Temperature:

-30℃ To +60℃

Packaging Size:

600 × 600 × 700 Mm

Main Unit Weight:

15 Kg

Jamming Band 1:

410–480MHz 25W

Jamming Band 2:

810–975MHz 25W

Jamming Band 3:

1130–1290MHz 10W

Jamming Band 4:

1540–1640MHz 10W

Jamming Band 5:

2395–2505MHz 50W

Jamming Band 6:

5135–5350MHz 50W

Jamming Band 7:

700–800MHz 25W

Jamming Band 8:

730–5865MHz 25W

Jamming Frequency Bands & Power:

Jamming Frequency Bands And Power Can Be Customized According To Requirements.

Packaging Details:

Box Meets Your Requirements

Highlight:

Fixed Drone Detector

Drone Detector 300m

3km Anti Drone Jammer

Product Description

Fixed Portable Anti-Drone Jammer 50MHz-6GHz 300m-3000m Range

This advanced UAV detection and jamming system integrates spectrum sensing and deep neural network technologies to provide comprehensive low-altitude protection. It effectively detects, identifies, and tracks drones within a 5,000-meter radius through radio frequency analysis and jamming technology.

Key Features

Design and Portability

Compact, lightweight integrated design combining detection and jamming functions
Highly portable with excellent operational flexibility

Detection Capabilities

Full-spectrum coverage from 70MHz to 6GHz with 360° detection
Intelligent identification system with autonomous learning for drone signatures
Advanced frequency-hopping recognition for precise drone differentiation

Control Capabilities

Whitelist functionality for selective drone authorization
Directional jamming technology minimizes collateral interference

Environmental Adaptability

Multi-antenna array design for complex urban environments
Suburban detection range up to 5,000 meters
Automatic intelligent gain adjustment for varying conditions

Technical Specifications

Detection Parameters
Detection Signal Types	UAV data transmission signals, UAV remote control signals, WiFi-based UAV signals
Detection Frequency Band	50MHz - 6GHz
Angle Measurement Accuracy (AOA Mode)	≤3° (RMS)
Positioning Accuracy	AOA single station can locate, accuracy ≤100m
Detection Distance Radius	≤10km
Detection Range	Horizontal 360°, Pitch ≥±45°
Detection Time	≤3s
Automatic Calibration Direction	No manual calibration required, north-seeking accuracy ≤2°
Whitelist Function	Can realize friend-or-foe identification

Countermeasure Parameters
Countermeasure Distance	300m - 3000m
Response Time	≤3s
Interference Frequency Bands	Frequency Range	Power
Band 1	410 - 480MHz	25W
Band 2	810 - 975MHz	25W
Band 3	1130 - 1290MHz	10W
Band 4	1540 - 1640MHz	10W
Band 5	2395 - 2505MHz	50W
Band 6	5135 - 5350MHz	50W
Band 7	700 - 800MHz	25W
Band 8	5730 - 5865MHz	25W
Custom interference frequency bands and power available upon request

Structural Parameters
Host Size	500 * 500mm
Host Weight	15KG
Maximum Power Consumption	50W (detection mode); 800W (countermeasure mode)
Operating Temperature	﹣30℃ to 60℃
Packing Size	600 * 600 * 700mm (L * W * H)
