| Brand Name: | FengQing |
| Model Number: | Q300 |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000pcs/month |

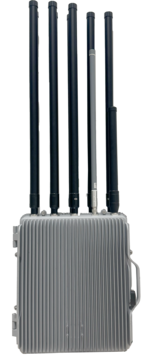

Cabinet-type portable drone detection and jamming all-in-one equipment combining detection and countermeasure capabilities in a single unit.
The chassis-mounted drone detection and jamming device offers 360° detection capabilities across an ultra-wideband spectrum of 50MHz-6GHz. This advanced system can autonomously learn to identify unknown drones while simultaneously handling multiple targets, operating unmanned around the clock. Ideal for securing sensitive areas against unauthorized drone activity.
| Detection Parameters | ||
|---|---|---|
| Detection Frequency Range | 50MHz - 5.8G | |
| Detection Distance | ≥5km (depending on working conditions); ≥2km for unobstructed open areas | |
| Real-time Processing Bandwidth | 160MHz | |
| Ranging Accuracy | ≤10%R | |
| Horizontal Range | 0 - 360° | |
| Minimum Detection Height | 0m | |
| Detection Elevation Angle | Less than 15° | |
| Types of Detectable Models | 500+ (including DJI Avata 2, Autel EVO, etc.) | |
| Detection Success Rate | 99% | |
| Position Update Time | ≤3-10s | |
| Countermeasure Parameters | ||
| Countermeasure Distance | 300m - 3000m | |
| Interference Mode | Drive away or force down | |
| Interception Response Time | ≤1s | |
| Interception Quantity | ≥35 | |
| Defense Radius | 1-3km | |
| Defense Success Rate | 99% | |
| Equipment Parameters | ||
| Host Size | Chassis 410*520*240mm; Antenna 800mm | |
| Host Weight | Chassis: 28KG; Antenna: 3.5KG | |
| Operating Temperature | ﹣30℃ - 60℃ | |
| Power Supply | AC220V (fixed power supply or UPS compatible) | |
| Protection Class | IP65 | |
Customized services available to meet specific operational requirements.
