| Brand Name: | FengQing |
| Model Number: | FQ400 |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000pcs/month |

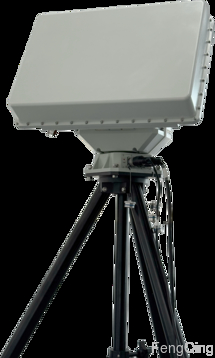

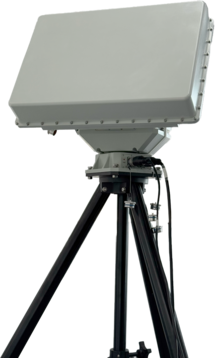

This directional drone countermeasure gimbal is specifically designed for drone countermeasure scenarios. It features convenient setup and retrieval, quick module replacement and maintenance, supports remote control via a command and control terminal, and supports configuration of scheduled jamming. It can jam multiple frequency bands, effectively countering drones, and excels in environmental adaptability and sustained operation.
| Countermeasure Parameters | Countermeasure Frequency Band | Power |
|---|---|---|
| Countermeasure Frequency Band 1 | 433MHz (420 - 520MHz) | 100W |
| Countermeasure Frequency Band 2 | 700MHz (700 - 830MHz) | 100W |
| Countermeasure Frequency Band 3 | 900MHz (830 - 940MHz) | 100W |
| Countermeasure Frequency Band 4 | 1.2G (1180 - 1280MHz) | 100W |
| Countermeasure Frequency Band 5 | 1.5G (1550 - 1620MHz) | 100W |
| Countermeasure Frequency Band 6 | 2.4G (2400 - 2500MHz) | 100W |
| Countermeasure Frequency Band 7 | 5.2G (5150 - 5300MHz) | 100W |
| Countermeasure Frequency Band 8 | 5.8G (5725 - 5925MHz) | 100W |
| Structural Parameters | Details |
|---|---|
| Jamming Distance | 1 - 3km |
| Horizontal Coverage Range | 0° - 360° |
| Pitch Coverage Range | 0° - +60° |
| Beam Width | 30° - 40° |
| Total Power Consumption | ≤2000W |
| Communication Method | Ethernet RJ45 interface communication, TCP/IP protocol |
| Power Supply | AC220V/50 - 60Hz |
| Operating Temperature | -40℃ - +70℃ |
| Storage Temperature | -45℃ - +70℃ |
| Waterproof Grade | IP65 |
| Dimensions | 700 * 420 * 497 (mm) |
| Weight | 44kg (including pan-tilt) |
