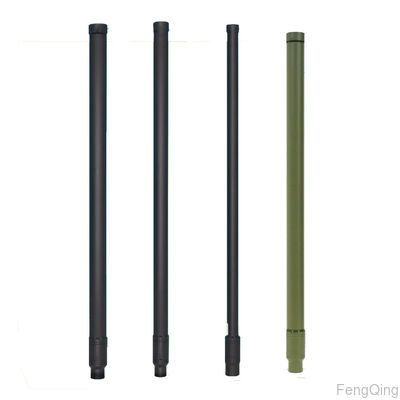

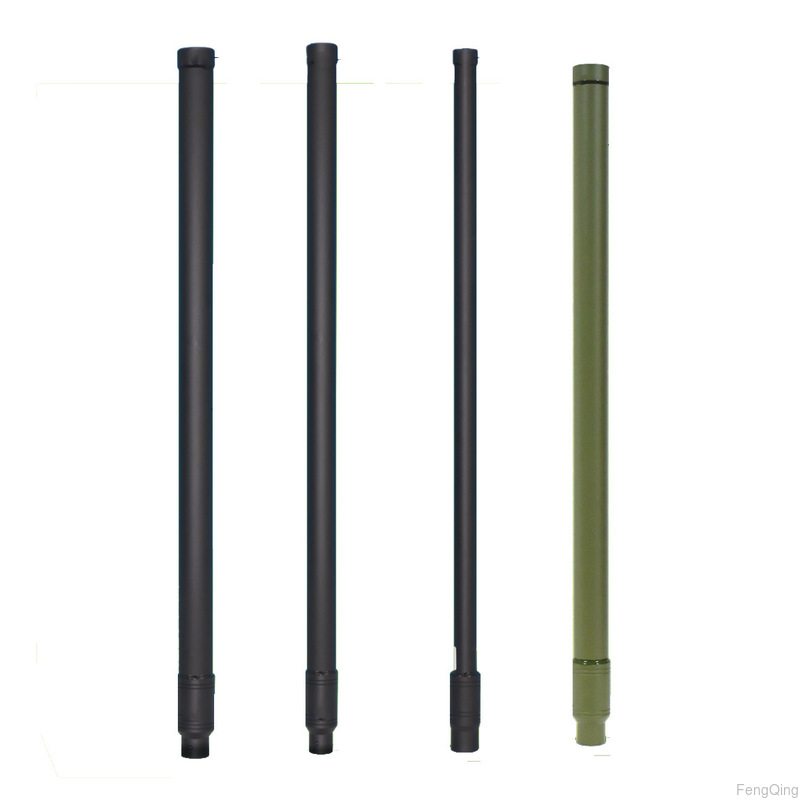

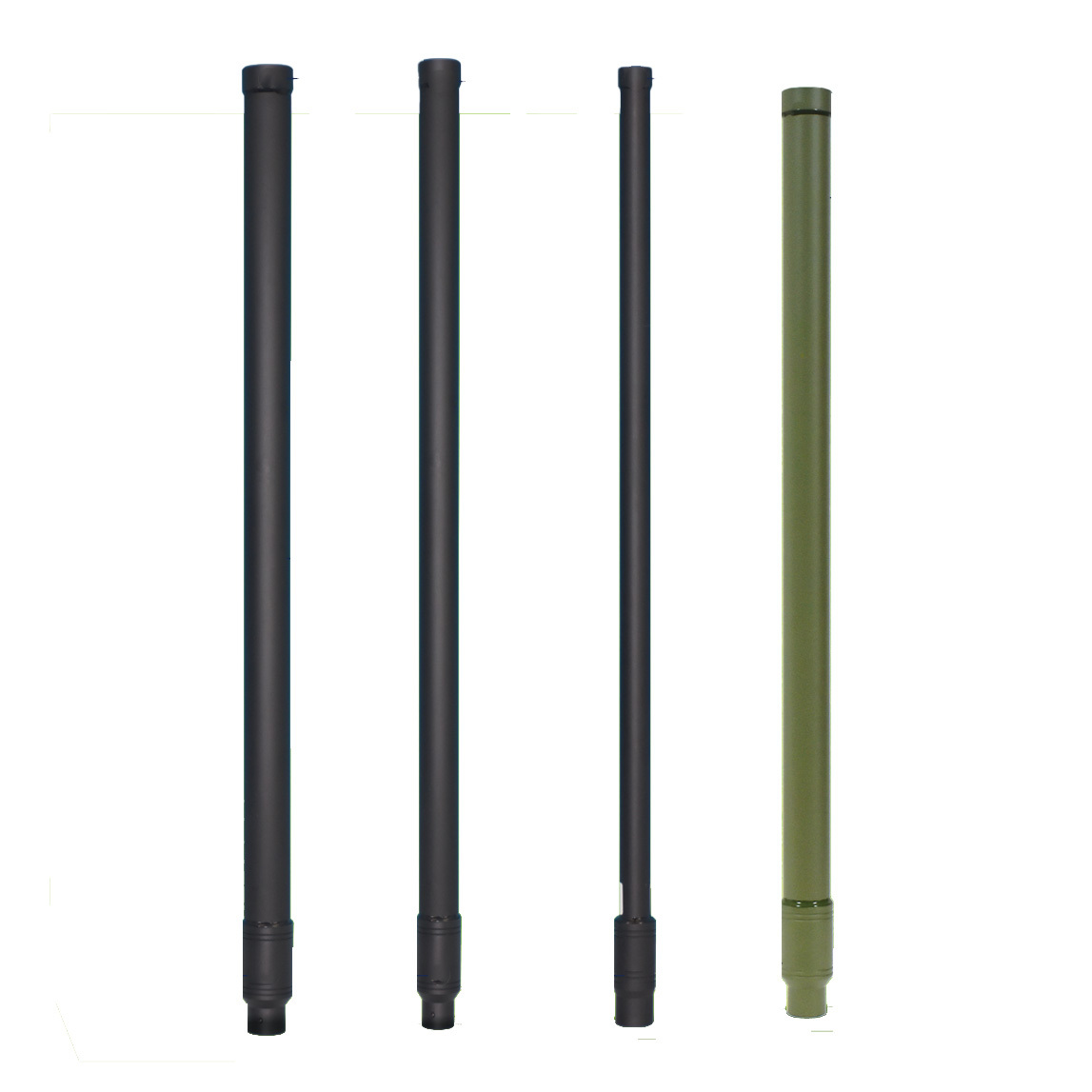

Concealed Funnel-Shaped Omnidirectional Jammer Antenna (Color Customizable)

Name: Concealed Funnel-Shaped Omnidirectional Jammer Antenna (Color Customizable)
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: FQ-O-S
Availability: InStock

Brand Name:	FengQing
Model Number:	FQ-O-S
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Structure & Dimensions:

Funnel-shaped; Tube Diameter: 20mm (featured) / 25mm / 32mm; Size: Φ20/25/32*600mm

Core Performance:

Power Handling: 100W; VSWR ≤1.5; Horizontal Beamwidth: 360°

Frequency Bands & Gain:

Covers 2G/3G/4G/5G, UAV, GPS/Beidou, WIFI, Etc., Including 8 Bands (433M-5.8G); Gain: 3±1~10±1dBi

Customization Features:

Supports Color Customization (military Green, Gray, Black, Etc.) To Match The Environment

Material & Durability:

Outdoor FRP; Resistant To High/low Temperatures, Moisture And Rain

Core Components:

Embedded N-type Connector, Large Copper Tube Vibrator

Packaging Details:

Box Meets Your Requirements

Highlight:

funnel-shaped jammer antenna

omnidirectional jammer antenna

customizable jammer antenna

Product Description

Jammer Antenna Funnel-Shaped Omnidirectional Antenna

Concealed Adaptation + Color Customization

Product Overview

This specialized antenna is designed for security and wireless communication scenarios requiring environmental integration and concealed installation, while providing omnidirectional signal coverage and visual coordination.

Structure and Dimensions

Funnel-shaped design with three pipe diameter options: 20mm, 25mm, and 32mm
Overall dimensions: Φ20*600mm, Φ25*600mm, and Φ32*600mm
Embedded N-type connector for secure connection
Outdoor-grade fiberglass material construction
Large copper tube oscillator for enhanced performance

Core Performance

Power capacity: 100W
Voltage Standing Wave Ratio (VSWR): ≤1.5
Horizontal beamwidth: 360° omnidirectional coverage

Frequency Band Coverage

Compatible with cellular (2G/3G/4G/5G, GSM, CDMA) and specialized wireless signals including:

UAV communications (flight control, navigation, image transmission)
GPS/Beidou positioning
WIFI (2.4G/5.8G)

Covers eight major frequency bands: 433M, 900M, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, and 5.8G with gain range of 3±1dBi to 10±1dBi.

Key Features

Customizable colors (military green, gray, black, etc.) for environmental blending
Compact 600mm design with 20mm small diameter option for tight spaces
Durable outdoor construction resistant to temperature extremes and moisture
Embeddable in equipment or wall-mounted concealed boxes

Technical Specifications

Antenna Frequency Band	Pipe Diameter (mm)	Frequency Range (MHz)	Gain (dBi)	VSWR	Power (W)	Horizontal Beamwidth	Vertical Beamwidth	Connector	Size
433M	20/25/32	420-440	3±1	≤1.5	100	360°	55±10°	Embedded N-J	Φ20/25/32*600mm
900M	20/25/32	840-930	3±1	≤1.5	100	360°	55±10°	Embedded N-J	Φ20/25/32*600mm
1.2G	20/25/32	1180-1280	6±1	≤1.5	100	360°	23±5°	Embedded N-J	Φ20/25/32*600mm
1.4G	20/25/32	1430-1450	6±1	≤1.5	100	360°	23±5°	Embedded N-J	Φ20/25/32*600mm
1.5G	20/25/32	1560-1620	6±1	≤1.5	100	360°	23±5°	Embedded N-J	Φ20/25/32*600mm
2.4G	20/25/32	2400-2500	8±1	≤1.5	100	360°	17±3°	Embedded N-J	Φ20/25/32*600mm
5.2G	20/25/32	5150-5350	10±1	≤1.5	100	360°	9±3°	Embedded N-J	Φ20/25/32*600mm
5.8G	20/25/32	5700-5900	10±1	≤1.5	100	360°	9±3°	Embedded N-J	Φ20/25/32*600mm

Product Advantages

Customizable Colors for Concealment

Addresses the limitations of conventional antennas with customizable colors that blend with installation environments (military green, gray, white, etc.) for both concealment and aesthetic integration.

Compact Design for Flexible Installation

600mm length with 20mm small diameter option enables installation in tight spaces, portable equipment, and concealed boxes - ideal for scenarios requiring miniaturization and hidden deployment.

High Performance Without Compromise

Large copper tube oscillator and 32mm pipe diameter option ensure stable 100W power output with ≤1.5 VSWR and 360° coverage, maintaining signal integrity even in concealed installations.

Durable Outdoor Construction

Fiberglass material withstands temperature extremes and moisture, with copper tube oscillator providing structural reinforcement for long-term outdoor use with minimal maintenance.

Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.

Comprehensive professional service throughout the product lifecycle:

Pre-sales: Customized solution design and product recommendations
In-sales: Technical support for installation, debugging, and training
After-sales: Rapid-response system including remote support and maintenance
