Home /Products/Anti Drone System/C-Band Portable Detection Radar For Military Security Search And Rescue Missions

C-Band Portable Detection Radar For Military Security Search And Rescue Missions

1
MOQ
Negotiated
Price
C-Band Portable Detection Radar For Military Security Search And Rescue Missions
Features Gallery Product Description Chat Now
Features
Specifications
Operating System: Phased Array Pulse Doppler, C-band
Detection Capability: Personnel: ≥1.5 Km Vehicles: ≥3 Km Vessels: ≥3 Km
Detection Range: Azimuth Coverage: ≥90° Elevation Coverage: ≥18°
 Power Supply & Consumption: ≤45 W (antenna Array)
Battery Specifications: Capacity: ≥19 Ah Operational Endurance: ≥4 H
Operating Temperature: -40℃～+55℃
Storage Temperature：: -30℃～+60℃
Weight: Complete System≤18kg ( Including Tripod )
Product Dimensions: 344mm×290mm×110mm
Highlight:

Military Security Detection Radar

,

Portable Detection Radar

,

C Band Detection Radar
Basic Infomation
Place of Origin: CHINA
Brand Name: FengQing
Certification: ISO
Model Number: XQ/QV138-1000C
Payment & Shipping Terms
Packaging Details: Packaging with anti-collision foam
Delivery Time: In 5 work day
Payment Terms: T/T,L/C
Supply Ability: 80,000pcs/month
Product Description

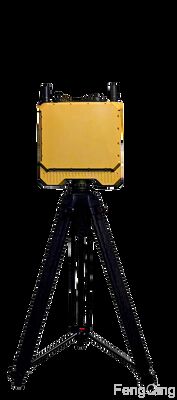

Man-Portable Radar C-Band

Product Introduction

A single-soldier portable detection radar with high accuracy, easy portability and quick deployment. Suitable for military, security, search and rescue missions, it can detect and locate multiple moving targets (including people, vehicles, ships, etc.) while providing information such as position, distance and speed. It also integrates wireless communication, built-in battery power supply and automatic positioning/orientation functions to ensure mobility and information interaction in complex environments.

Main Parameters

Category Specifications
Operating System Phased Array Pulse Doppler, C-band
Detection Capability Personnel: ≥1.5 km; Vehicles: ≥3 km; Vessels: ≥3 km
Detection Range Azimuth Coverage: ≥90°;
Elevation Coverage: ≥18°
Data Interface Supports wired and wireless transmission
Power Supply & Consumption ≤45 W (antenna array)
Battery Specifications Capacity: ≥19 Ah;
Operational Endurance: ≥4 h
Operating Environment Operating Temperature: -40℃～+55℃;
Storage Temperature: -30℃～+60℃
Start-up Time ≤90 s
Weight Antenna Array: ≤6.8 kg;
Complete System: ≤18 kg (including tripod)
Product Dimensions 344mm × 290mm × 110mm

Company Information

Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.
Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:

  • Pre-sales Consultation: Customized solution designs and product recommendations based on client needs.
  • In-sales Support: Comprehensive technical support for installation, debugging, and operational training.
  • After-sales Service: Rapid-response system including remote support and on-site maintenance.
