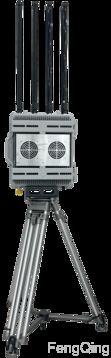

Fixed Drone Jammer System 2km 50W Drone Jamming Device

Fixed Drone Jammer System 2km 50W Drone Jamming Device

Fixed Drone Jammer System 2km 50W Drone Jamming Device

Brand Name: FengQing
Model Number: FQ400
MOQ: 1
Price: Negotiated
Payment Terms: L/C,T/T
Supply Ability: 1000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Maximum Countermeasure Range:
≤ 2 Km
Response Time:
≤ 3 S
Band 1: Frequency / Power:
430 – 440 MHz / 50W/47±1dbm
Band 2: Frequency / Power:
855 – 935 MHz / 50W/47±1dbm
Band 3: Frequency / Power:
1150 – 1300 MHz / 50W/47±1dbm
Band 4: Frequency / Power:
1370 – 1450 MHz / 50W/47±1dbm
Band 5: Frequency / Power:
1550 – 1636 MHz / 50W/47±1dbm
Band 6: Frequency / Power:
2400 – 2500 MHz / 50W/47±1dbm
Band 7: Frequency / Power:
5135 – 5350 MHz / 50W/47±1dbm
Band 8: Frequency / Power:
5712 – 5920 MHz / 50W/47±1dbm
Maximum Transmit Power Per Channel:
≤50W
Countermeasure Coverage:
360° Omnidirectional Countermeasure
Communication Interface:
RJ45 Ethernet, RS232/485 Serial Port
Power Supply:
AC 220V
Operating Temperature:
-45 °C To +55 °C
Protection Rating:
IP65 (Dust-tight And Protected Against Water Jets)
Dimensions (L × W × H):
1120.34 Mm × 304.76 Mm × 461.06 Mm (including Antenna)
Weight:
32.84 Kg (including Antenna)
Packaging Details:
Box Meets Your Requirements
Highlight:

Fixed Drone Jammer

,

Drone Jammer 2km

,

50W drone jamming device

Product Description
Fixed Omnidirectional UAV Long Range Detection and Jamming Integrated System
Product Introduction
The Fixed UAV Omnidirectional Countermeasure Cabinet is designed to neutralize intruding drones. It employs radio countermeasure technology to effectively gain control of unauthorized UAVs within its operational range. The system provides low-altitude, three-dimensional protection for a radius of up to 2,000 meters, capable of jamming signals, forcing drones to land, or triggering their return-to-home function. This enables 24/7, unattended defense. (Frequency bands and power output are customizable.)
Product Features
  • Precise Frequency Jamming: Targets only drone-related frequencies with effective band-segmentation function, ensuring normal operation of other wireless devices.
  • Safe and Stable Operation: Soft-start circuit design prevents inrush current and sparking, with high integration for stable performance.
  • Controllable Countermeasure Range: Effective range can be precisely controlled by adjusting output power to meet operational needs.
  • Convenient Operation: Ready to use upon startup with no complicated configuration required.
Technical Specifications
Countermeasure Parameters
Countermeasure distance ≤2km
Response time ≤3s
Interference frequency bands 430-440MHz 50W/47±1dbm
855-935MHz 50W/47±1dbm
1150-1300MHz 50W/47±1dbm
1370-1450MHz 50W/47±1dbm
1550-1636MHz 50W/47±1dbm
2400-2500MHz 50W/47±1dbm
5135-5350MHz 50W/47±1dbm
5712-5920MHz 50W/47±1dbm
Note: Jamming frequency bands and power can be customized
Countermeasure range 360° omnidirectional
Maximum transmit power per channel ≤50W
Communication interface RJ45 network/serial port
Product power supply AC 220V
Operating temperature -45℃ to 55℃
Protection level IP65
Weight 32.84kg (including antenna)
Size 1120.34*304.74*461.08mm (including antenna)
