300MHz - 6GHz Drone Detector UAV Spectrum Detector Counter-Drone Vehicle Mounted

Brand Name:	FengQing
Model Number:	QD-DJ1000
MOQ:	1
Price:	Negotiated
Payment Terms:	T/T,L/C
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Detection Range:

300MHz~6GHz

Scanning Conventionalkey Frequency Bands:

433MHz、845MHz、915MHz、1.2GHz、1.4GHz、2.4GHz、3.3GHz、5.2GHz、5.8GHz

Detection Distance:

≥5km(spectrum Detection, Subject To Differences Inenvironment And Models) ≥2km (DJl UAV Messages, Subject To Differences Inenvironment And Models) ≥1km (national Standard Messages, Subject To Differencesin Environment And Models)

Detection Coverage:

Omnidirectional 360°

Direction Finding Accuracy:

≤5°(rms, In Open Environments With Goodelectromagnetic Conditions)

Analysis And Positioning Accuracy:

≤5m

Analysis And Direction Finding Accuracy:

≤0.5°

Detection False Alarm Rate:

≤1%

Receiver Sensitivity:

≤-110dBm

System Target Detection Response Time:

≤3s

Number Of UAVs Reported Simultaneously:

≥10

Power Interface:

Aviation Plug，220Vx(1+10%)，50x(1±5%) Hz

Weight Not Exceeding:

≤18kg

Protection Level:

IP65

Operating Temperature:

-30°~+55°

Power Consumption:

≤100W

Network Interface:

RJ45 Aviation Plug

Size Not Exceeding:

595mm*450mm

Packaging Details:

Box Meets Your Requirements

Highlight:

300MHz Drone Detector

6GHz Drone Detector

UAV Spectrum Detector Vehicle Mounted

Product Description

Fixed UAV Spectrum Detection Equipment (300MHz-6GHz)

300MHz-6GHz Fixed UAV Spectrum Detector with 5km Range Counter-drone system vehicle drone jammer/Vehicle-Mounted Drone Jammer fixed drone jammer

Advanced Drone Detection & Anti-Drone Solution

This professional UAV spectrum detection equipment provides comprehensive drone identification, protocol analysis, and direction finding capabilities across key frequency bands (300MHz-6GHz). Designed for both fixed deployment and mobile applications (vehicle-mounted or portable), it effectively detects and locates drones through their radio signals.Counter-drone system vehicle drone jammer/Vehicle-Mounted Drone Jammer fixed drone jammer

Key Features

Sensitive Area Protection

Passive Detection Technology: Receives UAV radio signals without transmission, detecting image transmission and remote control signals in real-time with directional accuracy
Automatic Threat Response: Automatically identifies, records, and tracks suspicious UAV targets to prevent security breaches

Target Identification & Control

Protocol Analysis: Decodes mainstream UAV protocols with upgradable spectrum database
Smart Filtering: Blacklist/whitelist functionality for precise UAV control and risk mitigation

Autonomous Operation

Self-Positioning: Built-in GPS and navigation modules for automatic positioning and calibration
24/7 Monitoring: Unattended operation with automatic recording of UAV detection data

Advanced Data Analysis

Comprehensive Protocol Support: Parses DJI O2/O3/O4 protocols and national standard messages
Detailed Telemetry: Extracts UAV serial numbers, positions, speeds, altitudes, and operator locations

System Integration

Multi-Station Networking: Supports cross-positioning and collaborative countermeasures
Flexible Deployment: Available in fixed, vehicle-mounted, and portable configurations
Comprehensive Data Management: Records, stores, and analyzes alarm information with automatic report generation

Applications: Ideal for urban security, critical infrastructure protection, military installations, and event security where unauthorized drone activity poses a threat.

Main parameters

Category	Item	Content
Detection Parameters	Detection Range	300MHz - 6GHz
Detection Parameters	Scanning Conventional Key Frequency Bands	433MHz, 845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3GHz, 5.2GHz, 5.8GHz
Detection Parameters	Detection Distance	≥5km (Spectrum detection, differences exist due to different environments and models); ≥2km (DJI UAV message, differences exist due to different environments and models); ≥1km (National standard message, differences exist due to different environments and models)
Detection Parameters	Detection Range	Omnidirectional 360°
Detection Parameters	Direction Finding Accuracy	≤5° (rms, in an open environment with good electromagnetic environment)
Detection Parameters	Resolution Positioning Accuracy	≤5m
Detection Parameters	Resolution Direction Finding Accuracy	≤0.5°
Detection Parameters	Detection False Alarm Rate	≤1%
Detection Parameters	Receiver Sensitivity	≤-110dBm
Detection Parameters	System Target Detection Response Time	≤3s
Detection Parameters	Number of UAVs Reported Simultaneously	≥10
Overall Machine Parameters	Protection Class	IP65
Overall Machine Parameters	Operating Temperature	-30℃ - +55℃
Overall Machine Parameters	Power Consumption	≤100W
Overall Machine Parameters	Network Interface	RJ45 Aviation Plug
Overall Machine Parameters	Dimension Not Exceeding	595mm×450mm
Overall Machine Parameters	Power Interface	Aviation Plug, 220V (±10%) 50x (±5%) Hz
Overall Machine Parameters	Weight Not Exceeding	≤18kg

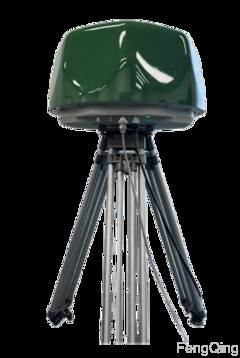

300MHz - 6GHz Drone Detector UAV Spectrum Detector Counter-Drone Vehicle Mounted 0
