10.2 Km Environmental Jammer Antenna Uav Detection Anti Drone Radar

Name: 10.2 Km Environmental Jammer Antenna Uav Detection Anti Drone Radar
Brand: Shenzhen Fengqing Instrument Co., Ltd.
SKU: XQ/FQ226-10200X
Availability: InStock

Brand Name:	FengQing
Model Number:	XQ/FQ226-10200X
MOQ:	1
Price:	Negotiated
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Effective Detection Range (for UAVs):

100 M ~ 10.0 Km

Azimuth Coverage:

360°

Elevation Coverage:

≥40°

Detection Speed:

3.6 Km/h ~ 306 Km/h

Azimuth Accuracy:

≤0.8°

Elevation Accuracy:

≤1.0°

Distance Accuracy:

≤10 M

Operating Temperature:

-40℃ ~ +55℃

Weight:

<60 Kg

Power Input:

Power Consumption: 250 W, Input Voltage: AC200-AC240

Data Rate:

≥0.2 Hz

Data Interface:

RJ45/1-channel 100 Mbps Ethernet

Packaging Details:

Box Meets Your Requirements

Highlight:

10.2 km Jammer Antenna

Environmental Jammer Antenna

Uav Detection Anti drone Radar

Product Description

Anti-drone Radar UAV Detection Radar

Product Overview

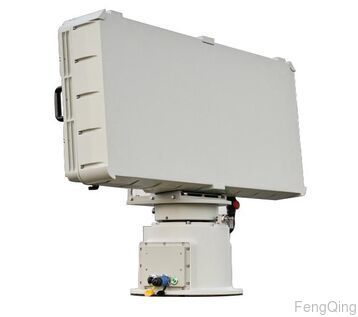

The XQ FQ226-10200X is primarily composed of one radar array face, one mechanical turntable, and one power adapter. It is used for the detection, warning, and target indication of micro/small civil unmanned aerial vehicles (UAVs) in key areas such as borders, perimeters, and military bases. It can accurately provide track information, including the target's azimuth, distance, altitude, and speed.

Product Features

High Real-time & High Precision: It has anti-clutter capabilities, continuous tracking, high precision, and can output the target's three-coordinate information.
Strong Environmental Adaptability: It has all-weather, all-day operational capability and can adapt to harsh environments like nighttime, rain, snow, fog, and dust.
High Flexibility: It can detect targets from a long distance and is easy to set up.
DBF Technology: The use of DBF (Digital Beamforming) technology to transmit multiple beams enhances anti-jamming capabilities.
High Cost-Performance: By continuously refining the product, it achieves a perfect combination of reliability, usability, and cost-effectiveness while ensuring effective detection.

Equipment Technical Specifications

Technical Parameter	Specific Specification
Operating System	Phased array system (azimuth mechanical scan + elevation phased scan) / Pulse Doppler
Operating Frequency Band	S-band
Range	10.2 km
Effective Detection Range	100 m ~ 10.0 km (for drones)
Azimuth Coverage	360°
Elevation Coverage	≥40°
Detection Speed	3.6 km/h ~ 306 km/h
Azimuth Accuracy	≤0.8°
Elevation Accuracy	≤1.0°
Distance Accuracy	≤10 m
Data Rate	≥0.2 Hz
Data Interface	RJ45/1-channel 100 Mbps Ethernet
Power Input	250 W (power consumption), AC200-AC240 (input voltage)
Operating Temperature	-40°C ~ +55°C
Weight	<60 kg
Product Dimensions	828 mm x 1064 mm

Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.

Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:

Pre-sales Consultation: Customized solution designs and product recommendations based on client needs and budget.
In-sales Support: Comprehensive technical support for installation, debugging, and operational training.
After-sales Service: Rapid-response system including remote support, on-site maintenance, and system upgrades.
