| Brand Name: | FengQing |
| Model Number: | QV-S500 |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000pcs/month |
It provides: High-precision frequency detection: Accurately captures and analyzes the operating frequencies of various drones.
Real-time monitoring: Continuously monitors drone signal frequencies in the target area, ensuring real-time tracking of drone activity.
Wideband support: Supports monitoring across multiple frequency bands, adapting to different types of drones.
| Category | Item | Content |
|---|---|---|
| Detection Parameters | Detection Frequency Range | 50MHz - 5.8G |
| Detection Distance | ≥5km (depending on conditions); ≥2km for known models in open areas | |
| Real-time Processing Bandwidth | 160MHz | |
| Ranging Accuracy | ≤10%R | |
| Horizontal Range | 0-360° | |
| Minimum Detection Height | 0m | |
| Detection Elevation Angle | Less than 15° | |
| Types of Detectable Models | 500+ (including DJI Avata 2, Autel EVO, etc., expandable) | |
| Reconnaissance Sensitivity | Better than -95dBm (25kHz) | |
| Detection Success Rate | 99% | |
| Position Update Time | ≤3-10s | |
| Positioning Function | GPS positioning with map identification | |
| Monitoring Technology | Electrostatic silent monitoring (no radiation), spectrum + database protocol analysis | |
| Countermeasure Parameters | Countermeasure Distance | 300m-3000m |
| Interference Mode | Drive away or force down | |
| Interception Response Time | ≤1s | |
| Interception Quantity | ≥35 | |
| Defense Radius | 1-3km | |
| Defense Success Rate | 99% | |
| Maximum Countermeasure Power | Frequency band countermeasure < 1500W | |
| Interference Frequency Bands | 8 customizable bands (830-930MHz, 1547-1628MHz, 2398-2510MHz, etc.) | |
| Customization | Frequency bands and power can be customized | |

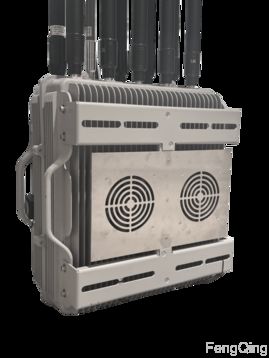

| Equipment Parameters | Host Size | Chassis 410×520×240mm; Antenna 800mm |
| Host Weight | Chassis: 28KG; Antenna: 3.5KG | |
| Maximum Power Consumption | Detection ≤70W; Frequency band countermeasure < 1500W | |
| Operating Temperature | ﹣30℃ - 60℃ | |
| Power Supply | AC220V (fixed power supply or UPS compatible) | |
| Operating System | LINUX system | |
| Display Screen | Tablet or laptop size (optional) | |
| Protection Class | IP65 | |
| Log Function | Intrusion logs with angle, time, frequency data, and playback capability | |
| Statistical Reports | UAV intrusion statistics available |
