| Brand Name: | FengQing |
| Model Number: | FQ400 |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000pcs/month |

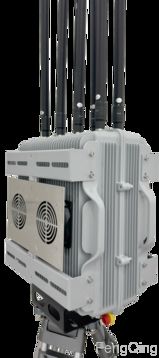

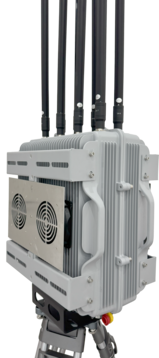

The Fixed UAV Omnidirectional Countermeasure Cabinet is designed to neutralize intruding drones. It employs radio countermeasure technology to effectively gain control of unauthorized UAVs within its operational range. The system provides low-altitude, three-dimensional protection for a radius of up to 2,000 meters, capable of jamming signals, forcing drones to land, or triggering their return-to-home function. This enables 24/7, unattended defense. (Frequency bands and power output are customizable.)
| Countermeasure Parameters | |
|---|---|
| Countermeasure distance | ≤2km |
| Response time | ≤3s |
| Interference frequency bands | 430-440MHz 50W/47±1dbm 855-935MHz 50W/47±1dbm 1150-1300MHz 50W/47±1dbm 1370-1450MHz 50W/47±1dbm 1550-1636MHz 50W/47±1dbm 2400-2500MHz 50W/47±1dbm 5135-5350MHz 50W/47±1dbm 5712-5920MHz 50W/47±1dbm Note: Jamming frequency bands and power can be customized |
| Countermeasure range | 360° omnidirectional |
| Maximum transmit power per channel | ≤50W |
| Communication interface | RJ45 network/serial port |
| Product power supply | AC 220V |
| Operating temperature | -45℃ to 55℃ |
| Protection level | IP65 |
| Weight | 32.84kg (including antenna) |
| Size | 1120.34*304.74*461.08mm (including antenna) |
